Cisco XR 12000 Series Installation Guide

70
Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Line Card Memory
– Size of the DIMMs in the transmit buffer need not match the size of the SDRAM DIMMs in the
receive buffer.
– DIMMs must be 3.3V devices.
Instructions are in the following sections:
• Removing a DIMM, page 70
• Installing a DIMM, page 71
• Removing a SODIMM, page 72
• Installing a SODIMM, page 74
• Checking the Installation of Line Card Memory, page 78
Removing a DIMM
To remove a DIMM from a line card, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Place the line card on an antistatic mat so that the faceplate is nearest to you.
Step 3 Locate the DIMM sockets on the line card.
Note Some line cards use DIMM sockets equipped with dual release levers, as shown in Figure 48;
other line cards use DIMM sockets equipped with a single release lever, as shown in Figure 49.
Both DIMM sockets operate in the same general way.

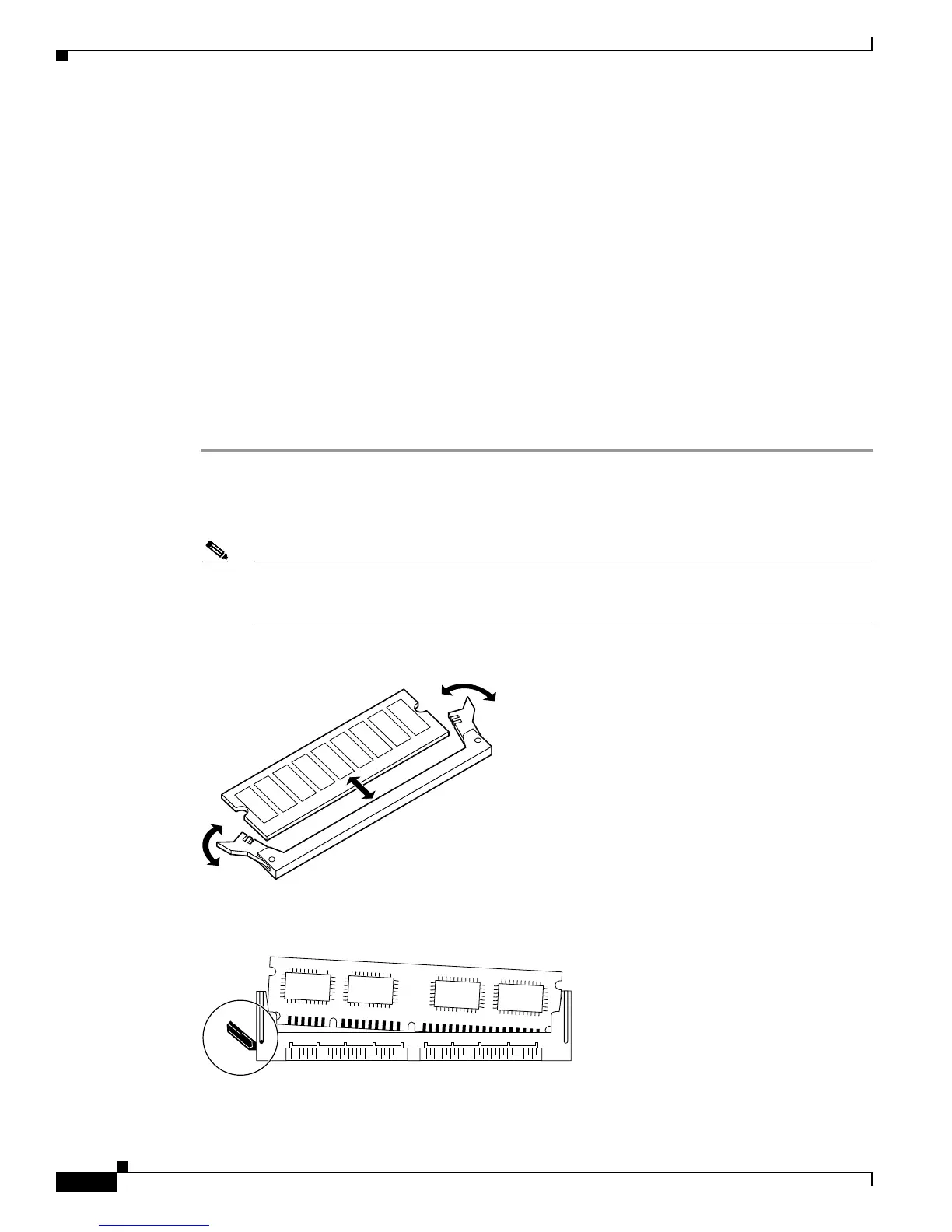

Figure 48 DIMM Socket with Dual Release Levers
Figure 49 DIMM Socket with Single Release Lever
Step 4
Use the socket release levers to eject the DIMM.
24860
H6513
