Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Line Card Memory

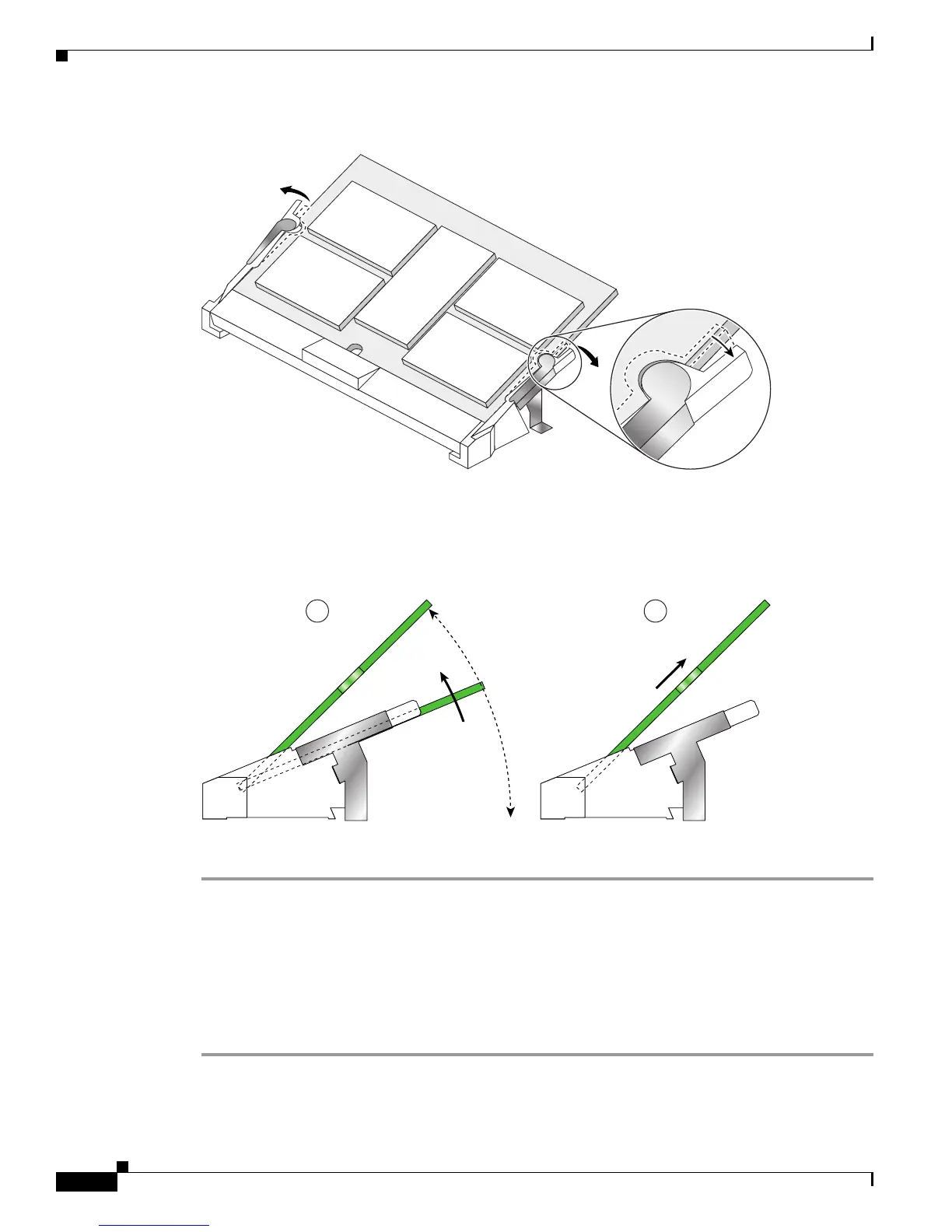

Figure 52 Moving the Plastic Latch Away from the SODIMM
Step 6
As the SODIMM is released, it positions itself at a 45-degree angle. Gently pull the SODIMM module
out of the socket. Continue to keep the module at a 45-degree angle until it is completely removed from
the socket guides. (See Figure 53b.)
Figure 53 Removing a 144-pin SODIMM Module
Step 7
Immediately place the SODIMM in an antistatic bag to protect it from ESD damage.
Installing a SODIMM
To install a SODIMM module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Place the line card on an antistatic mat so that the faceplate is nearest to you.
75799
45
º
75780
a
b
