Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Line Card Memory
Step 3 If there is a retaining clip, check to make sure that it has not been damaged or bent. (See Figure 54.)
Note Some line cards do not require a retaining clip.

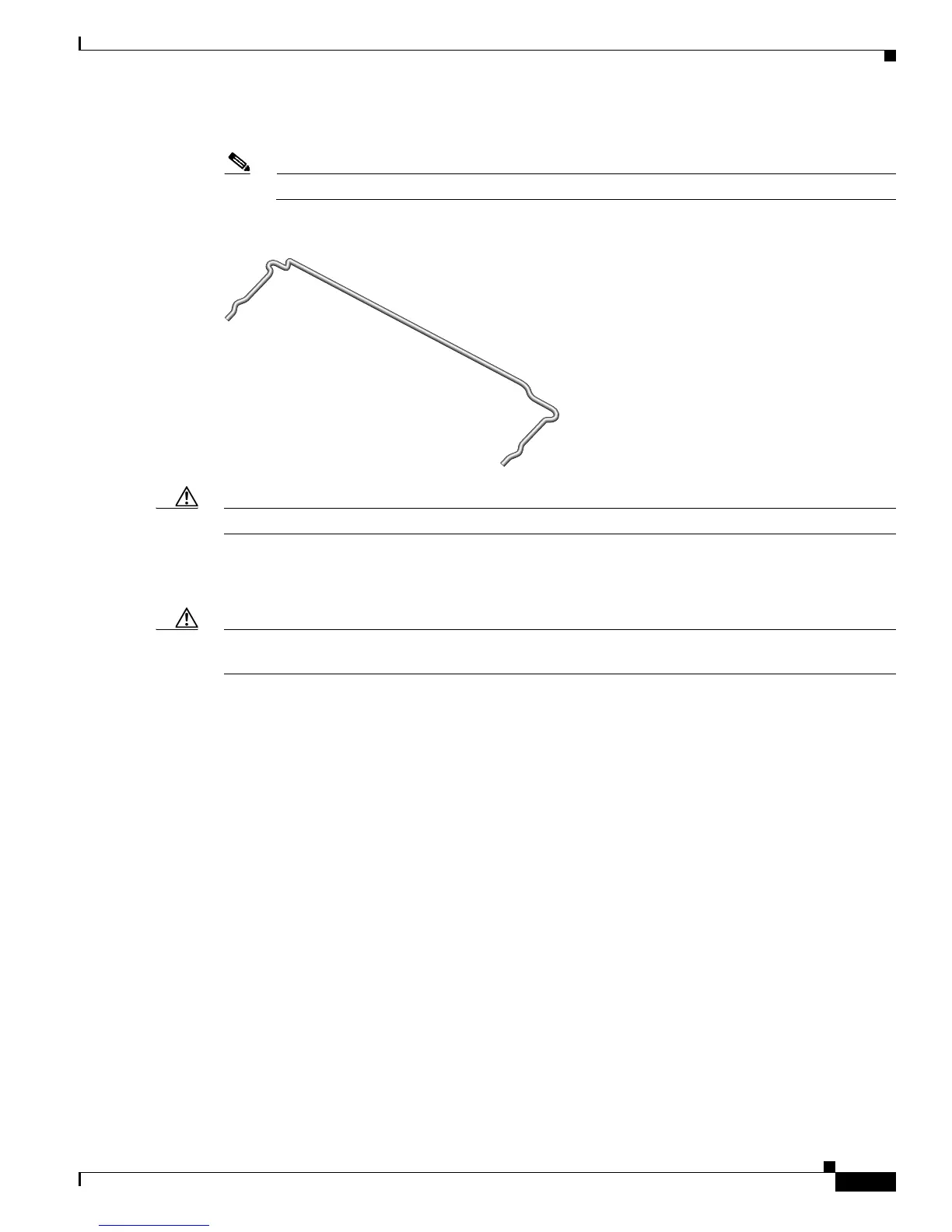

Figure 54 SODIMM Socket Retaining Clip
Caution If the retaining clip is damaged, do not use it. This can damage the SODIMM socket.
Step 4 Locate the route memory socket on the line card.
Step 5 Remove the new SODIMM from its protective antistatic bag.
Caution Grasp the edges of the SODIMM only. Do not touch the integrated circuit devices on the SODIMM; the
metal traces, or fingers, along the edge of the SODIMM; or the pins in the SODIMM socket.
Step 6 Line up the SODIMM key with the key in the board socket. (See Figure 55.)
