Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Line Card Memory
Caution If the retaining clip is bent or damaged, do not attempt to fix or reuse it. This can cause serious damage
to the line card. Each SODIMM replacement ships with a spare retaining clip, in case there is any
damage to the existing clip.

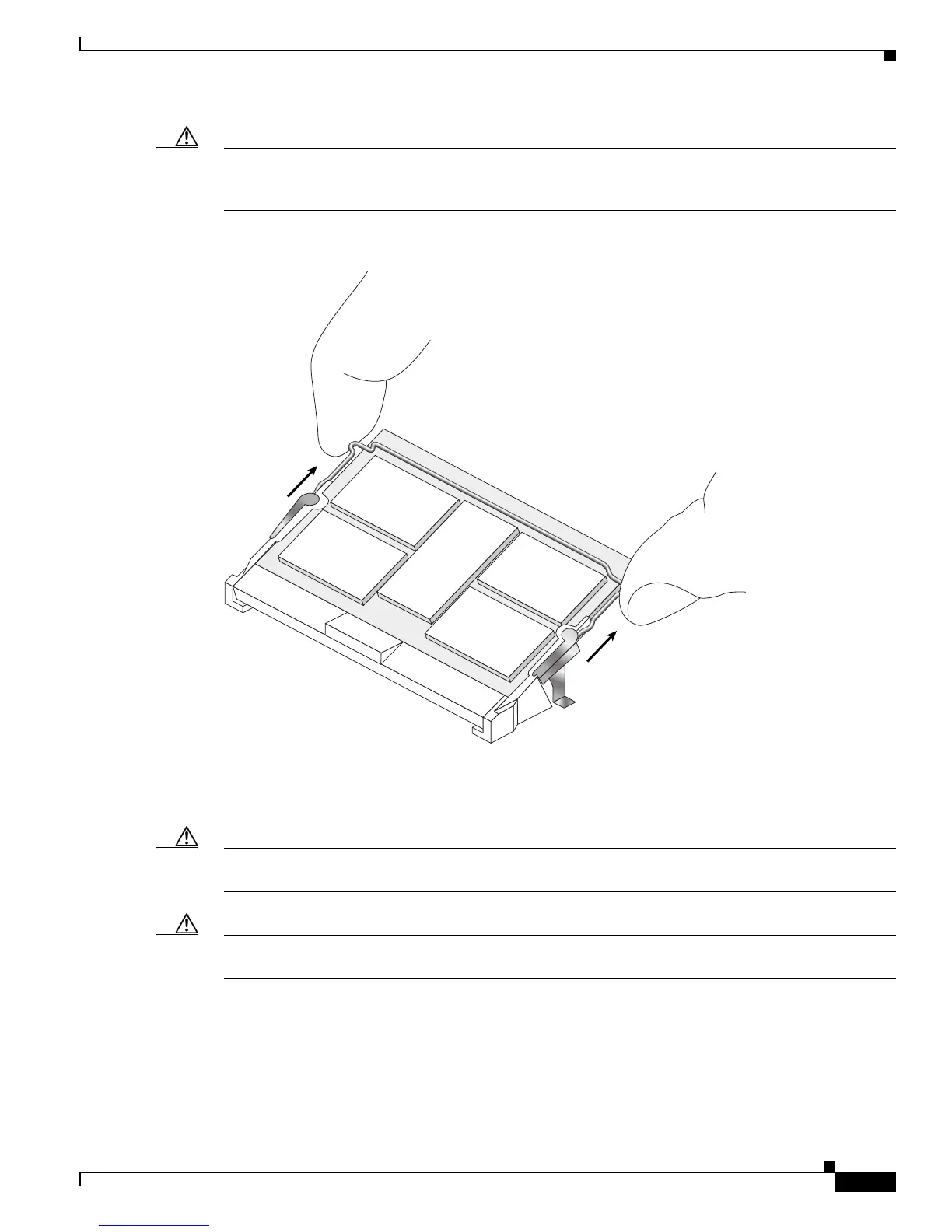

Figure 51 Remove Retaining Clip from Memory Module Socket
Step 5
Remove the SODIMM by gently moving the plastic latches in an outward direction, parallel to and away
from the memory module, until it releases and rotates to a 45-degree angle. (See Figure 52 and
Figure 53a.)
Caution The plastic latch on the SODIMM socket is enclosed by the metal strain-relief latch. The plastic latch
should never be moved past the metal strain-relief latch.
Caution Handle the edges of the SODIMM only. Do not touch the integrated circuit devices on the SODIMM;
the metal traces, or fingers, along the edge of the SODIMM; or the pins in the SODIMM socket.
75779
