Cisco XR 12000 Series Installation Guide

55
Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Cabling and Specifications
Warning Class 1 laser product.
Warning Class 1 LED product (multimode).
Note Connectors on the fiber-optic cables must be free of dust, oil, or other contaminants. Before
connecting the cable to the line card, carefully clean the fiber-optic connectors using an
alcohol wipe or other suitable cleanser. Refer to the “Cleaning Fiber-Optic Connectors”
section on page 56 for more information.
To install a cable, follow these steps:
Step 1 Remove the connector dust cover if one is present.
Step 2 Align the connector end of the cable to the appropriate port. Observe the receive (RX) and transmit (TX)
cable relationship on the cables, as shown in Figure 41 and Figure 42.
Step 3 Attach fiber cable between the port in the line card and the device to which the line card is connected.
Step 4 Insert the fiber cable connector until it clicks and locks into place.
Step 5 Repeat these steps until all cabling is complete.

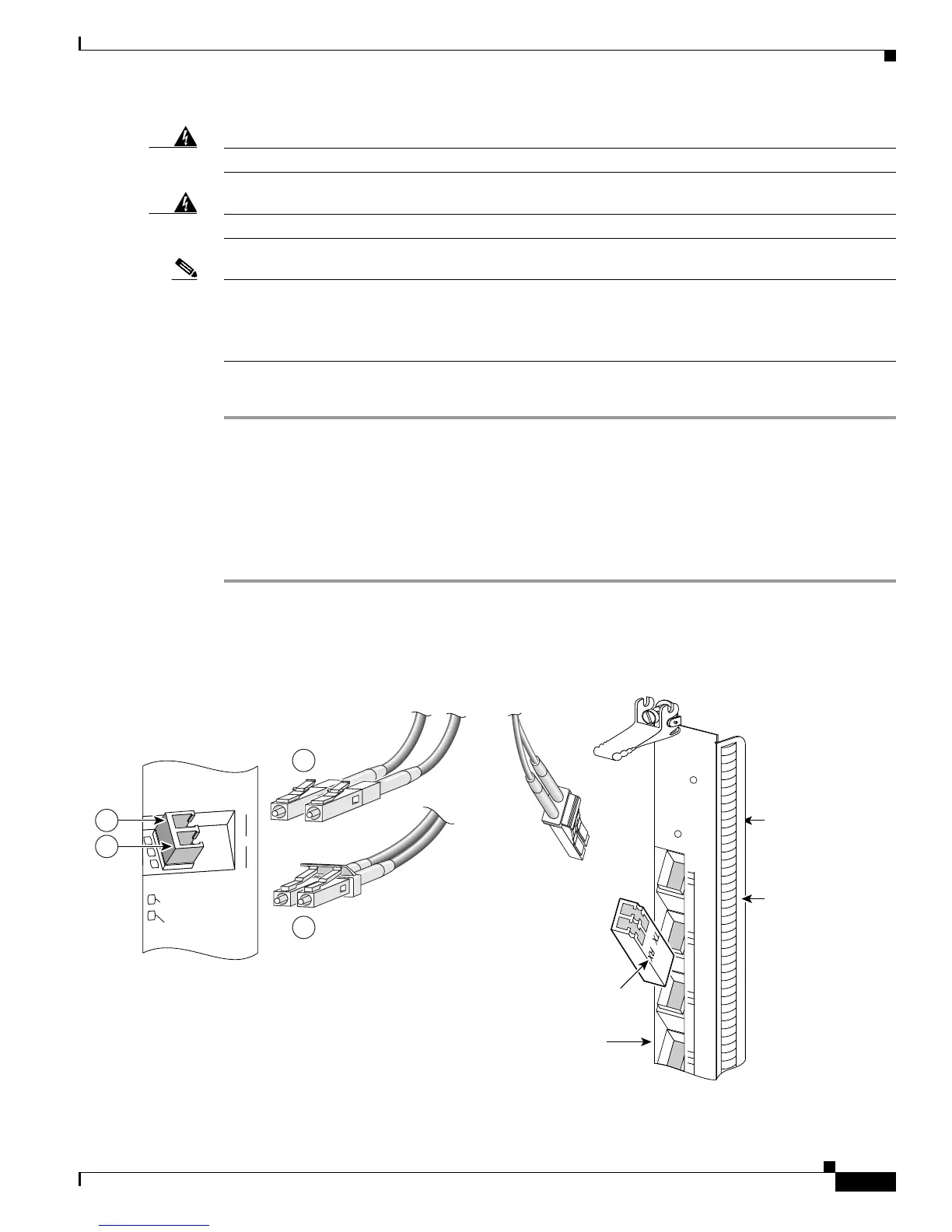

Figure 41 Attaching Simplex or Duplex Fiber Cables (SFP Module)
80224
3
4
ACTIVE
CARRIER
RX PACKET
W
RAP
PASS THRU
2
2
1
Component side
of line card
Card carrier
side of line card
57654
LINK
ACTIVE
RX FRAME
1 2 30
Gasket edge of
front panel
Top surface of
SFP module
