Chapter 1 Setup
Part Names and Functions

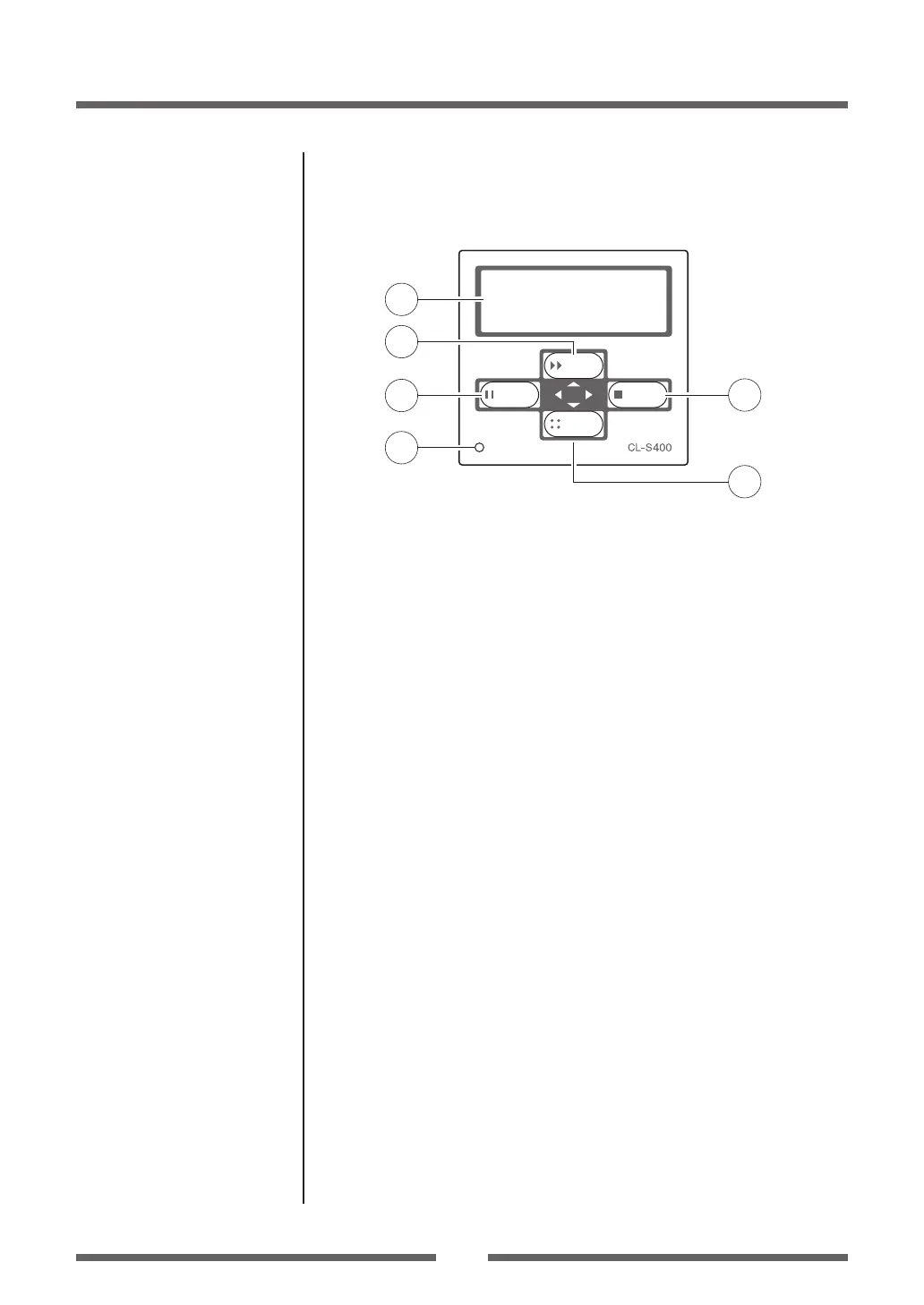

Operation Panel
PAUSE
FEED
STOP
MENU
POWER
5
6
4
3
2
1
1
LCD display
This displays the operational status of the printer.
2
FEED key
This key feeds the media to the top of the next label or form.
3
PAUSE key
This temporarily stops printing.
4
POWER LED
This is lit when the printer power is on. (green)
This is lit when the printer is in an alarm or error status. (red)
5
STOP key
This stops printing or cancels the alarm.
6
MENU key
This key exits current status in the menu setting mode or reprints the
nal label, depending on printer status.
Normal Operating Mode (p.19)
LED Functions (p.20)
LED Functions (p.20)
