Citizen CMP-20 Service Manual

CMP-20 Service Manual

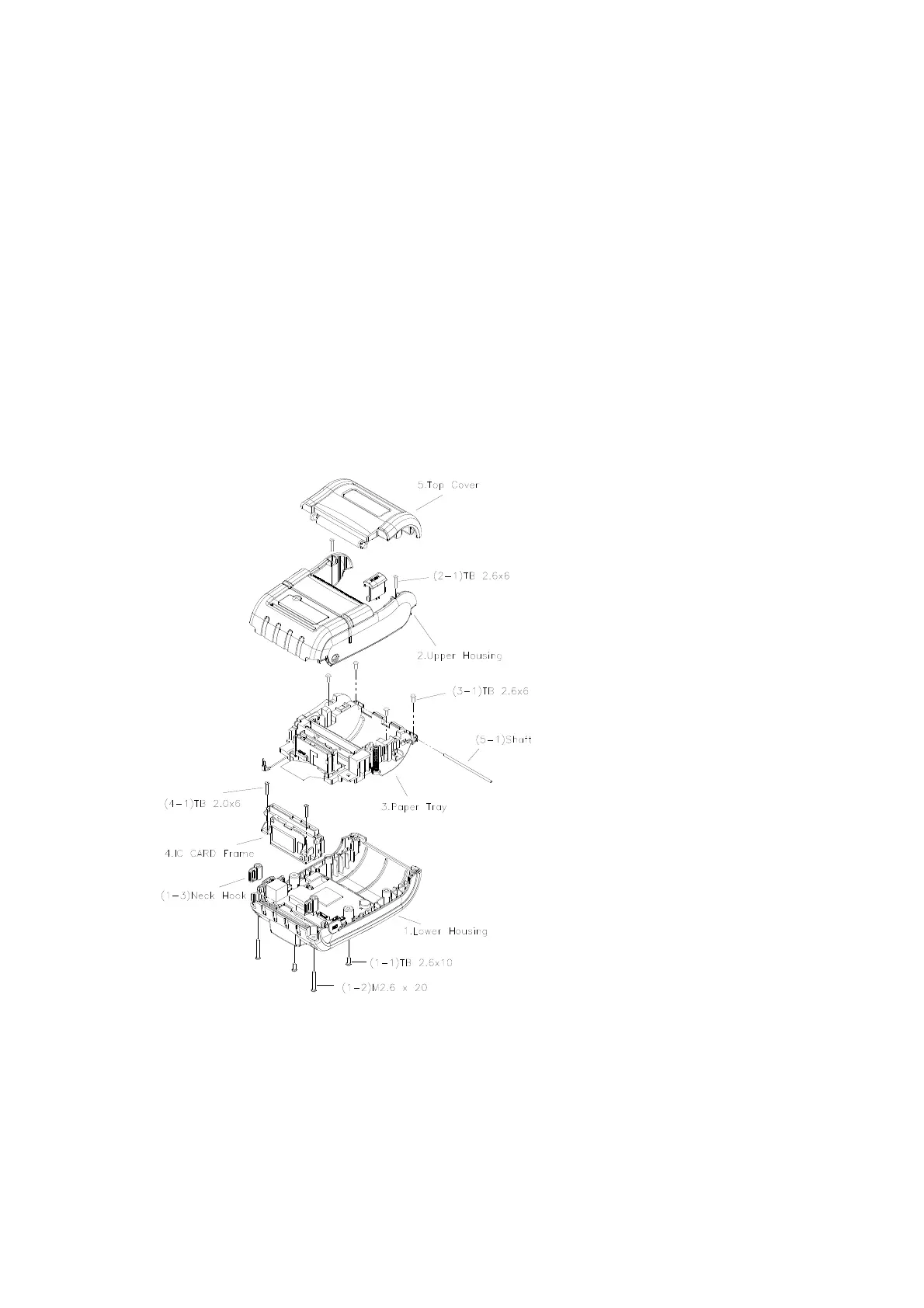

1. Disassembly and Assembly
1. How to Separate Lower Housing
1-1) Unfasten 4 screw as shown in the figure and separate the Lower Housing
2. How to separate Upper Housing
2-1) Disassemble it as indicated way
3. Separate Paper Tray
3-1) Unfasten 4 screw as shown in the figure and separate the Paper Door
4. Separate IC Card Frame asm
4-1) Unfasten 4 screw as shown in the figure and separate the Bottom Cover
5. How to separate Top Cover
5-1) Unfasten 5 screw as shown in the figure and separate the Mechanism Unitr
