Citrix ADC MPX
The Citrix ADC T1200 is a 2U appliance, with a dual‑core processor and 256 GB memory.
The following figure shows the front panel of the T1200 appliance.

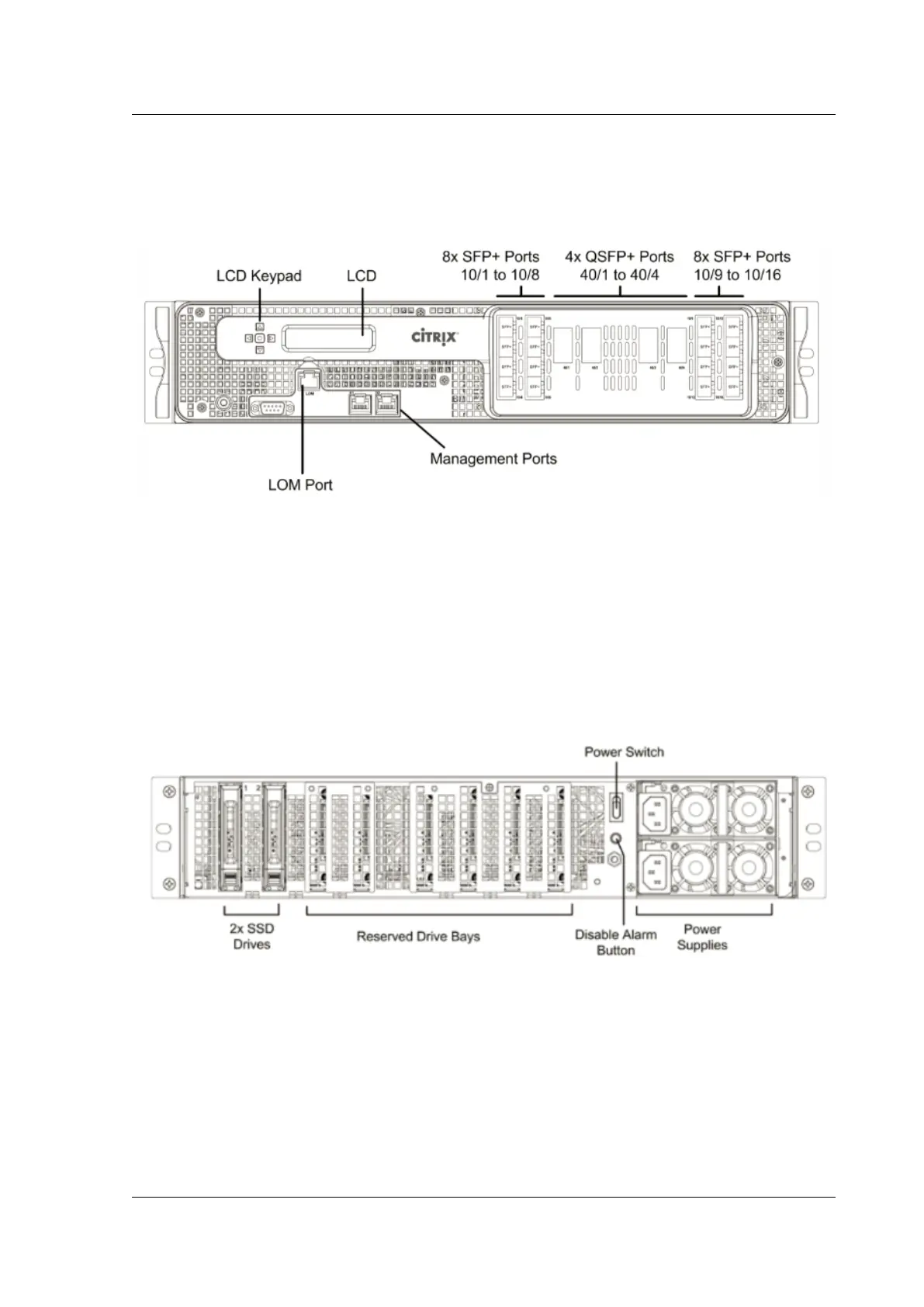

Figure 1. Citrix ADC T1200 front panel
The T1200 appliance has the following ports:
• 24 10GBASE‑X SFP+ data plane ports
• 12 1000BASE‑X SFP data plane ports
• Two 10/100/1000BASE‑T, RJ45 management ports
• One 10/100BASE‑T, RJ‑45 LOM port
The following figure shows the back panel of the T1200 appliance.
Figure 2. Citrix ADC T1200 back panel
The following components are visible on the back panel of the T1200 appliance:
• System status LED, which indicates the status of the appliance, as described in the LCD Display
and LED Status Indicators.
• Four power supplies, each rated at 750 watts, 100–240 volts. A minimum of two power supplies
are required for proper operation. The extra power supplies act as backup. Each power supply
