Install the rack rails on the rack
1. If you have a round‑hole, threaded rack, skip to step 3.
2. Install square nut retainers intothe front postand back post of the rack as shown in the following
figures. Before inserting a screw, be sure to align the square nut with the correct hole for your
1U or 2U appliance. The three holes are not evenly spaced.

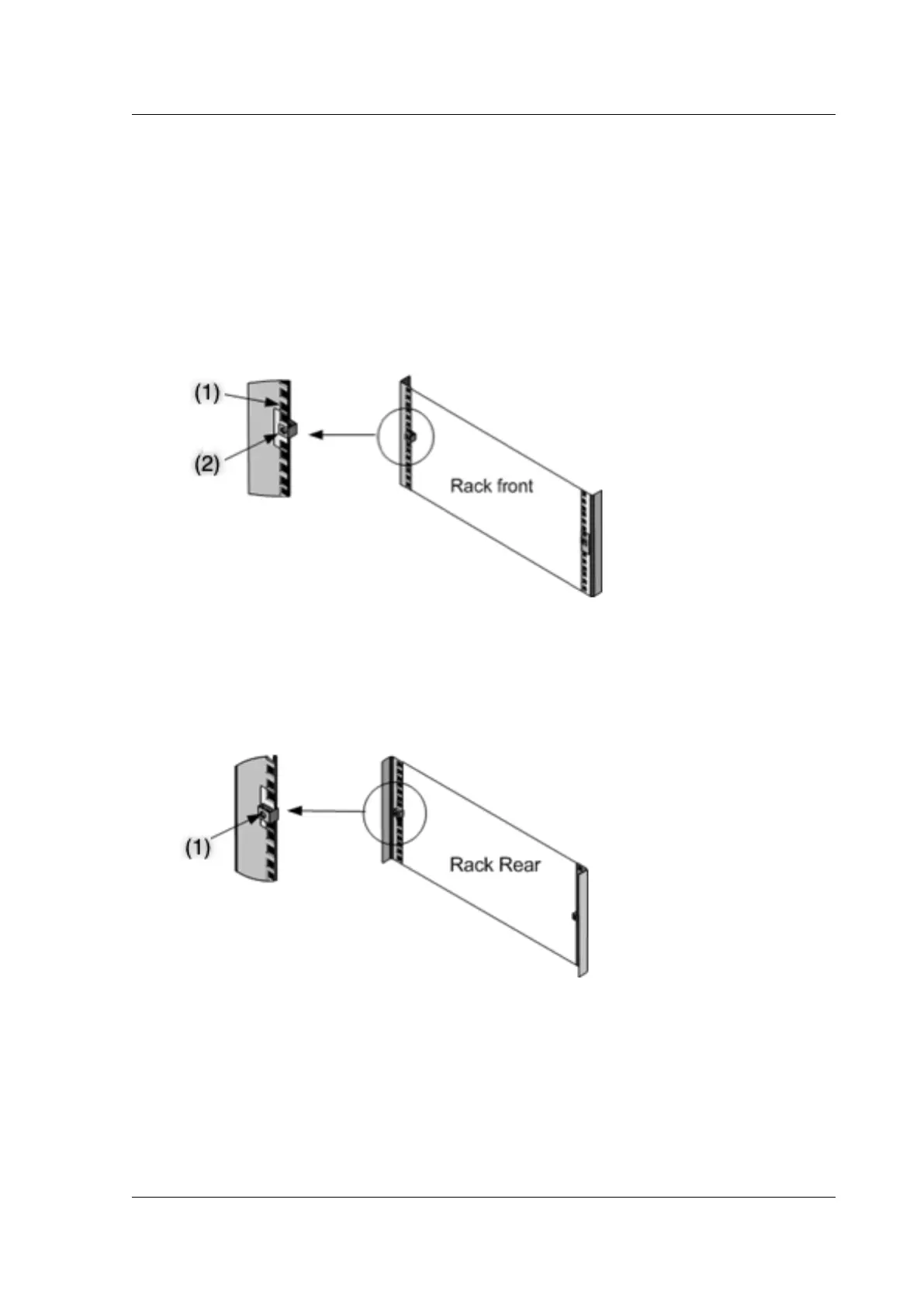

Figure 2. Install retainers into the front rack posts
(1)‑Install in this hole for a 2U appliance.
(2)‑Install in center hole for a 1U appliance.
Figure 3. Install retainers into the rear rack posts
(1)‑Install in the center hole for a 1U or a 2U appliance.
3. Install the adjustablerail assembly into the rack as shown in the following figures. Use a screw to
lock the rearrailflange into the rack. With the screw securing the rail in place, you can optionally
remove the latching spring.
