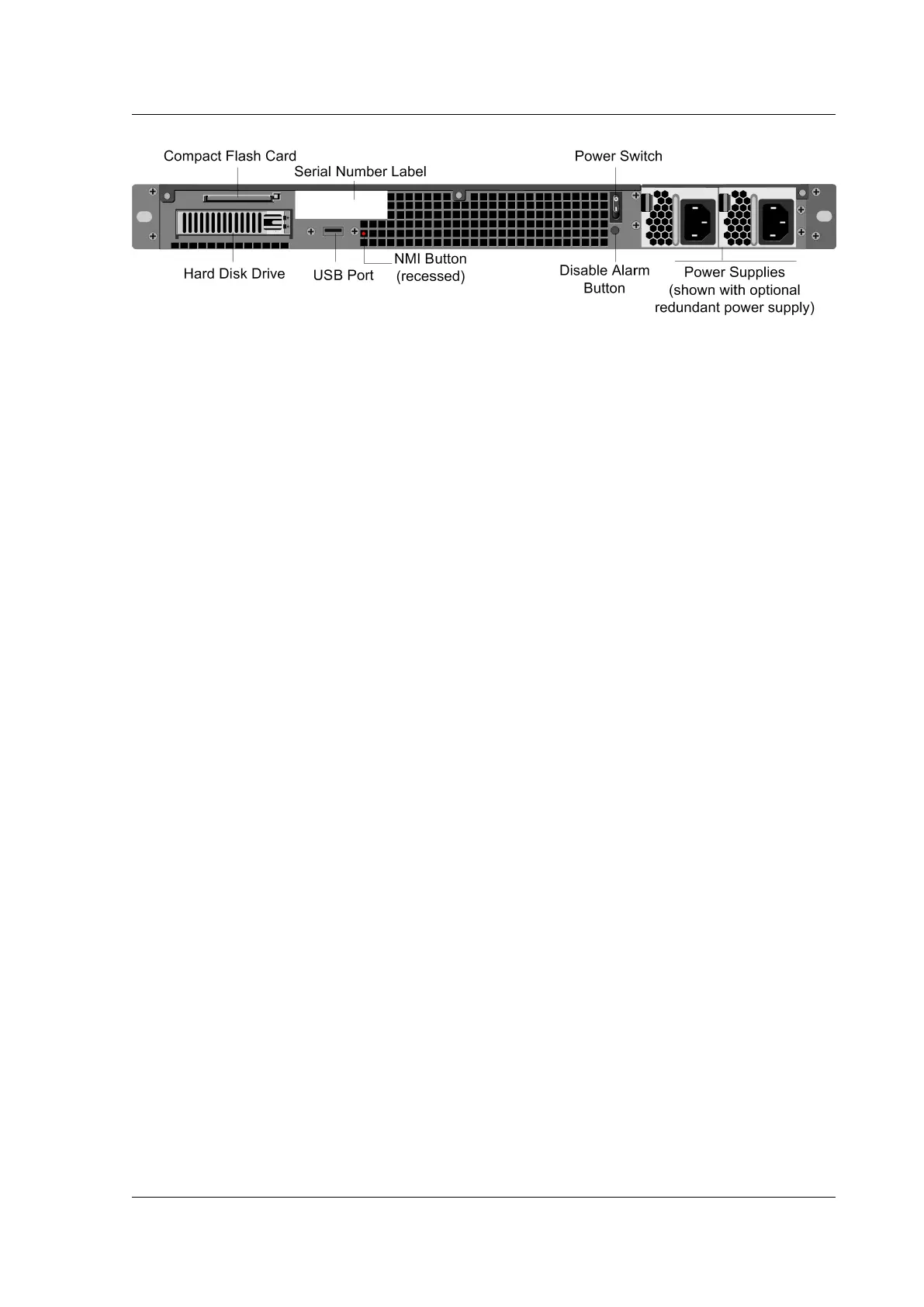

The following components are visible on the back panel of the MPX 7500
/9500:
• 4 GB removable CompactFlash card that is used to store the Citrix ADC soware.
• Power switch, which turns o power to the MPX 7500/9500, as if you were to unplug the power
supply. Press the switch for five seconds to shut o the power.
• Removable hard‑disk drive (HDD) that is used to store user data. Appliances shipped before
February 2012 store user data on an HDD. In appliances shipped aer February 2012, a solid‑
state drive replaces the HDD. Both types of drive have the same functionality and support the
same soware releases.
• USB port (reserved for a future release).
• Non‑maskable interrupt (NMI) button that is used at the request of Technical Support and pro‑
duces a core dump on the appliance. Use a pen, pencil, or other pointed object to press this red
button, which is recessed to prevent unintentional activation.
• Disable alarm button. This button is functional only when the appliance has two power sup‑
plies.
Press this button to stop the power alarm from sounding when one of the following conditions
is true:
– You have plugged the MPX 7500/9500 into only one power outlet.
– One power supply is malfunctioning and you want to continue operating the MPX
7500/9500 until it is repaired.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the hardware.
For information about performing the initial configuration of your appliance, see Initial Configuration.
