Citrix ADC MPX 8200 User Manual

Citrix ADC MPX
Depending on the model, the appliance has the following ports:
• RS232 serial console port.
• One 10/100Base‑T copper Ethernet Port (RJ45), also called LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base‑T copper Ethernet management port (RJ45), numbered 0/1. The man‑
agement port is used to connect directly to the appliance for system administration functions.
• Network Ports
– MPX 8005/8015/8200/8400/8600/8800 (6x10/100/1000Base‑T copper Ethernet ports +
6x1G SFP). Six 10/100/1000BASE‑T copper Ethernet ports (RJ45) numbered 1/1, 1/2, 1/3,
1/4, 1/5, and 1/6 on the top row from le to right, and six 1‑gigabit copper or fiber 1G SFP
ports numbered 1/7, 1/8, 1/9, 1/10, 1/11, and 1/12 on the bottom row from le to right.
– MPX 8005/8015/8200/8400/8600/8800 (6x10/100/1000Base‑T copper Ethernet ports +
2x10G SFP+). Six 10/100/1000BASE‑T copper Ethernet ports (RJ45) numbered 1/1, 1/2,
1/3, 1/4, 1/5, and 1/6 on the top row from le to right and two 10‑gigabit SFP+ ports
numbered 10/1 and 10/2 on the bottom row from le to right.

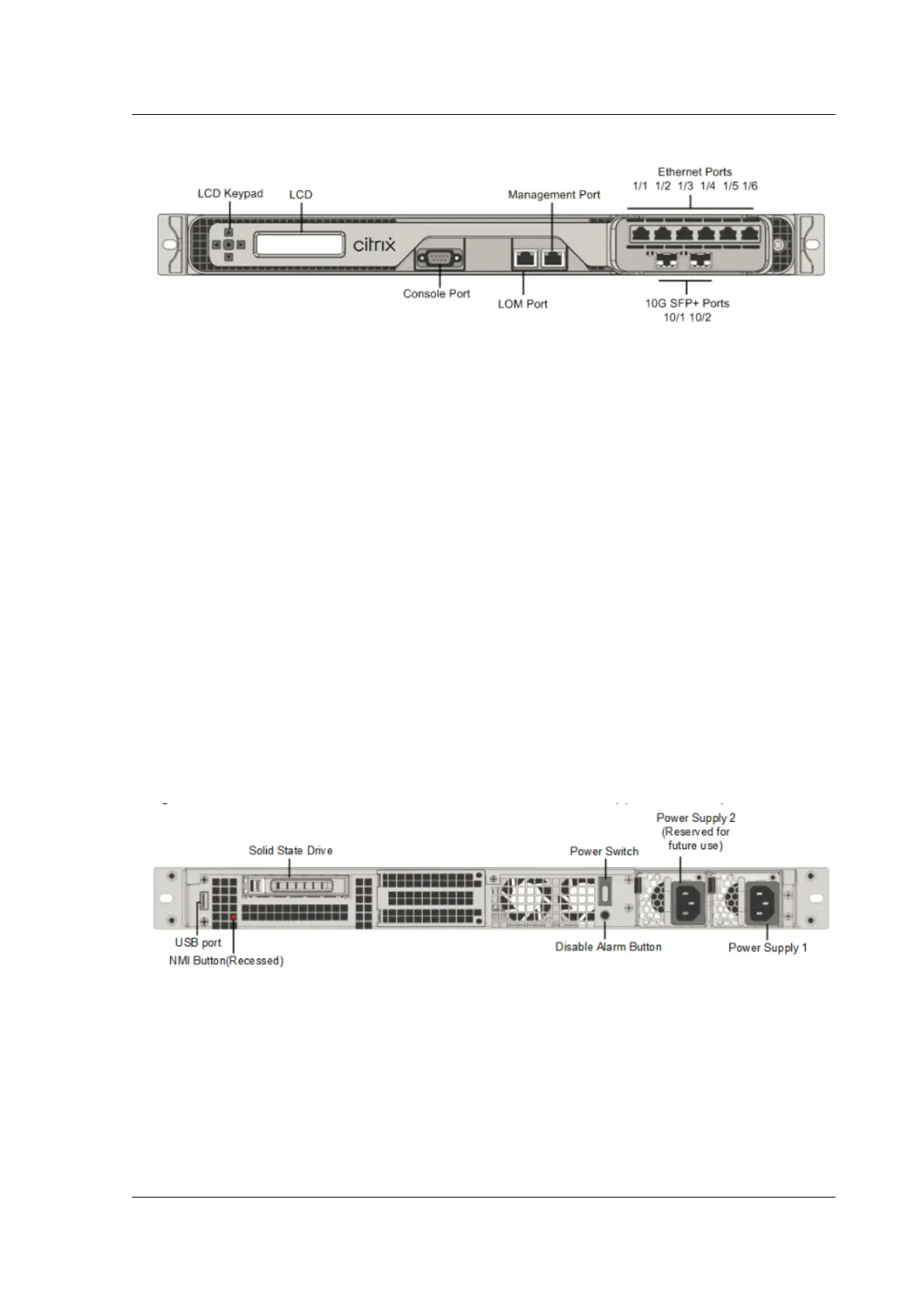

The following figure shows the back panel of the MPX 8005/8015/8200/8400/8600/8800 appliance.
Figure 3. Citrix ADC MPX 8005/8015/8200/8400/8600/8800 appliance, back panel
The following components are visible on the back panel of the MPX 8005/8015/8200/8400/8600/8800
appliance:
• One 256 GB or larger removable solid‑state drive (SSD).
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 35

Citrix ADC MPX 8200 Specifications

General

Brand	Citrix
Model	ADC MPX 8200
Category	Server
Language	English
