Citrix ADC MPX
The MPX 11500/13500/14500/16500/18500/20500 appliances have the following ports:
• 10/100Base‑T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re‑
motely monitor and manage the appliance independently of the Citrix ADC soware.
Note: The LEDs on the LOM port are not operational by design.
• RS232 serial console port.
• Two 10/100/1000Base‑T copper Ethernet management ports (RJ45), numbered 0/1 and
0/2 from le to right. These ports are used to connect directly to the appliance for system
administration functions.
• Eight 1G SFP ports numbered 1/1, 1/2, 1/3, 1/4 from top to bottom in the first column. Ports are
numbered 1/5, 1/6, 1/7, and 1/8 from top to bottom in the second column.
• Four 10G SFP+ ports numbered 10/1 and 10/2 from top to bottom in the first column, and 10/3
and 10/4 from top to bottom in the second column.

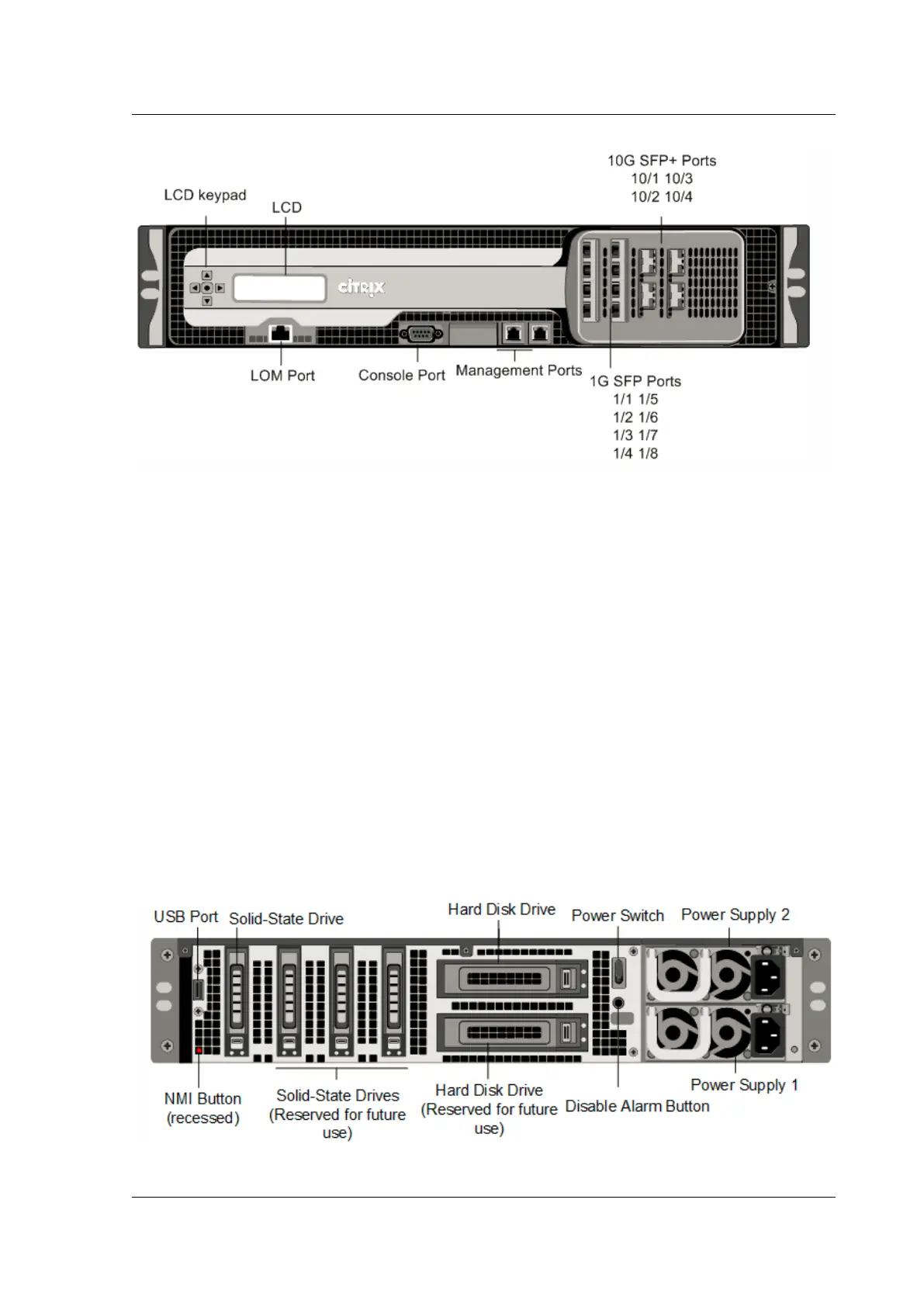

The following figure shows the back panel of the MPX 11500/13500/14500/16500/18500/20500 appli‑
ance.
Figure 2. Citrix ADC MPX 11500/13500/14500/16500/18500/20500 appliance, back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 47
