Citrix ADC MPX

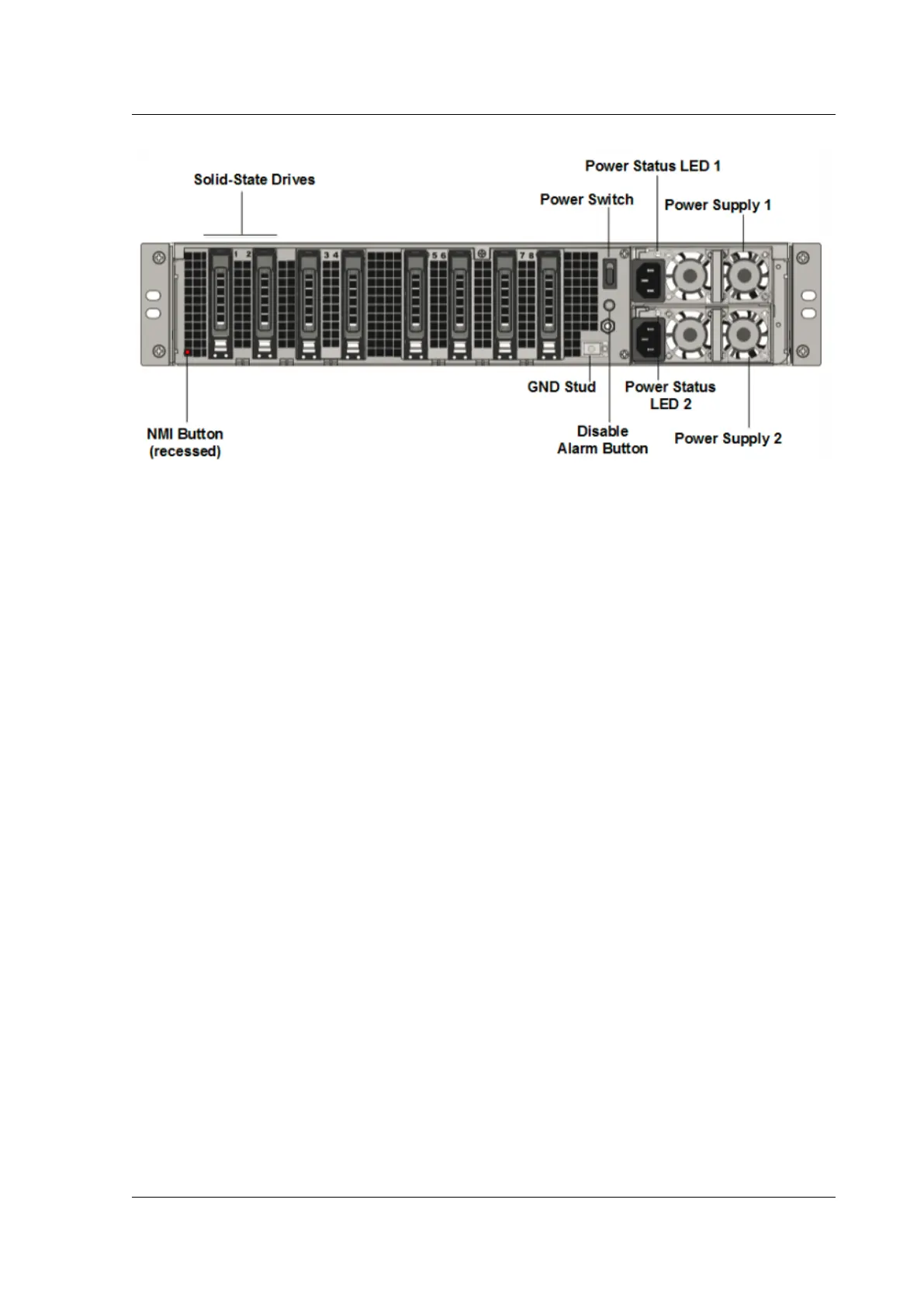

The following components are visible on the back panel of the MPX 14000‑40C appliances:
• Two 300 GB or larger removable solid‑state drives in a redundant array of independent disks
(RAID) devices. In a RAID configuration, the same data is stored on multiple drives to improve
performance, increase storage capacity, lower the risk of data loss, and provide fault tolerance.
The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors the other
one.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns power to the appliance on or o. Press the switch for less than two
seconds to shut o the power. For more information, see Common Hardware Components
• Two power supplies, each power supply is rated at 1000 watts, 100–240 volts. Each power sup‑
ply has an LED that indicates the status of the power supply, as described Common hardware
components.
• Disable alarm button. This button is functional when the appliance has two power supplies.
Press this button to stop the power alarm from sounding when one of the following conditions
is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
• Non‑maskable interrupt (NMI) Button that is used at the request of Technical Support to initiate
a core dump. To press this red button, which is recessed to prevent unintentional activation,
use a pen, pencil, or other pointed object. The NMI Button is also available remotely over the
network in the LOM GUI, in the Remote Control menu. For more information about lights out
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 54
