Citrix ADC MPX

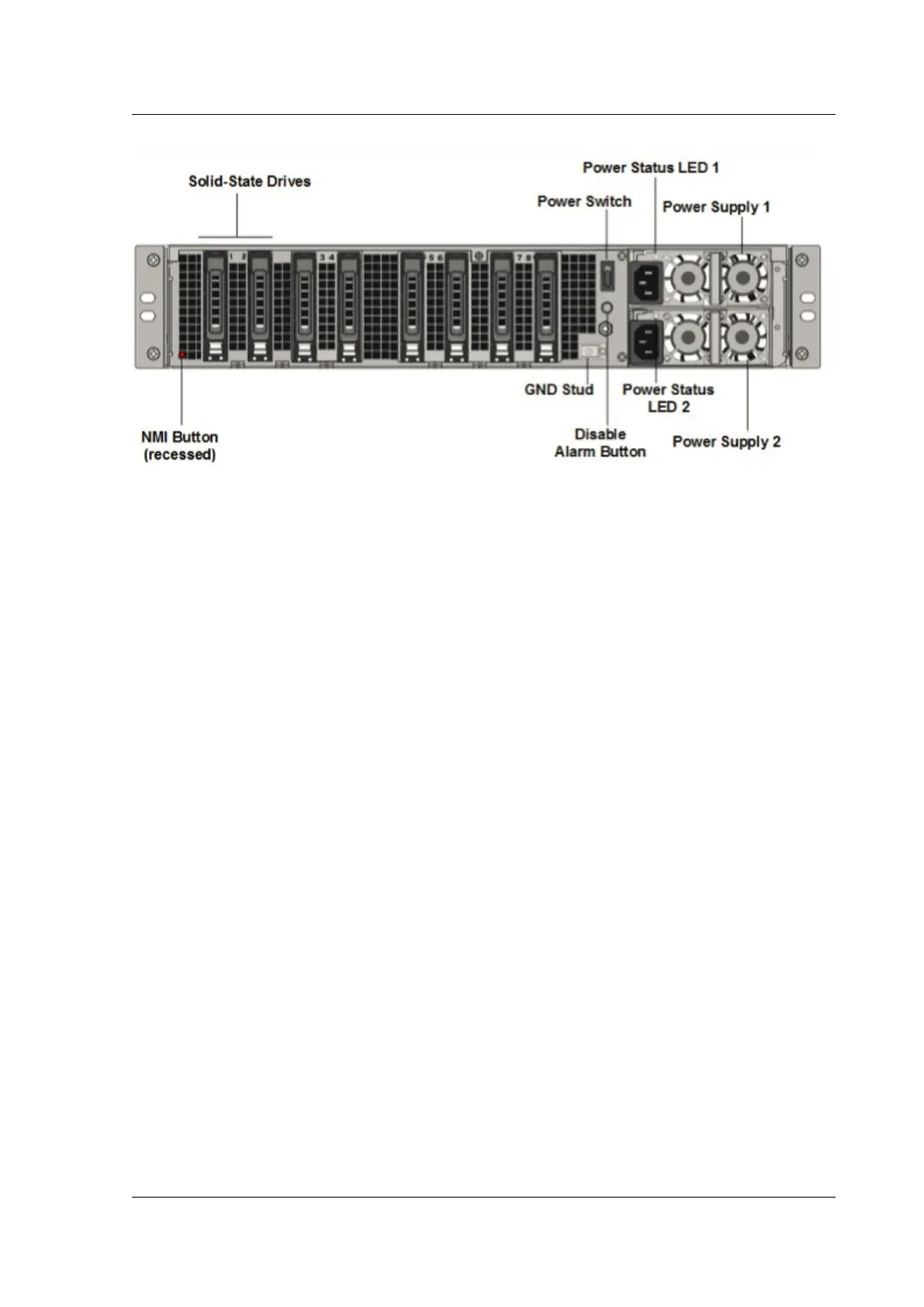

The following components are visible on the back panel of the MPX 25100/25160/25200 40G appli‑
ances:
• Two 300 GB or larger removable solid‑state drives in a redundant array of independent disks
(RAID) devices. In a RAID configuration, the same data is stored on multiple drives to improve
performance, increase storage capacity, lower the risk of data loss, and provide fault tolerance.
The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors the other
one.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch
This switch turns the power to the appliance on or o. Press the switch for less than two seconds
to shut o the power.
• Two power supplies.
Each power supply is rated at 1000 watts, 100–240 volts. Each power supply has an LED that
indicates the status of the power supply, as described in Common hardware components.
• Disable alarm button. This button is functional only when the appliance has two power sup‑
plies. Press this button to stop the power alarm from sounding when one of the following con‑
ditions is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning and you want to continue operating the appliance
until it is repaired.
For more information, see Lights out management port of the Citrix ADC MPX appliance
topic.
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 88
