344

AXLES

SUSPENSION

STEERING

FRONT AXLE

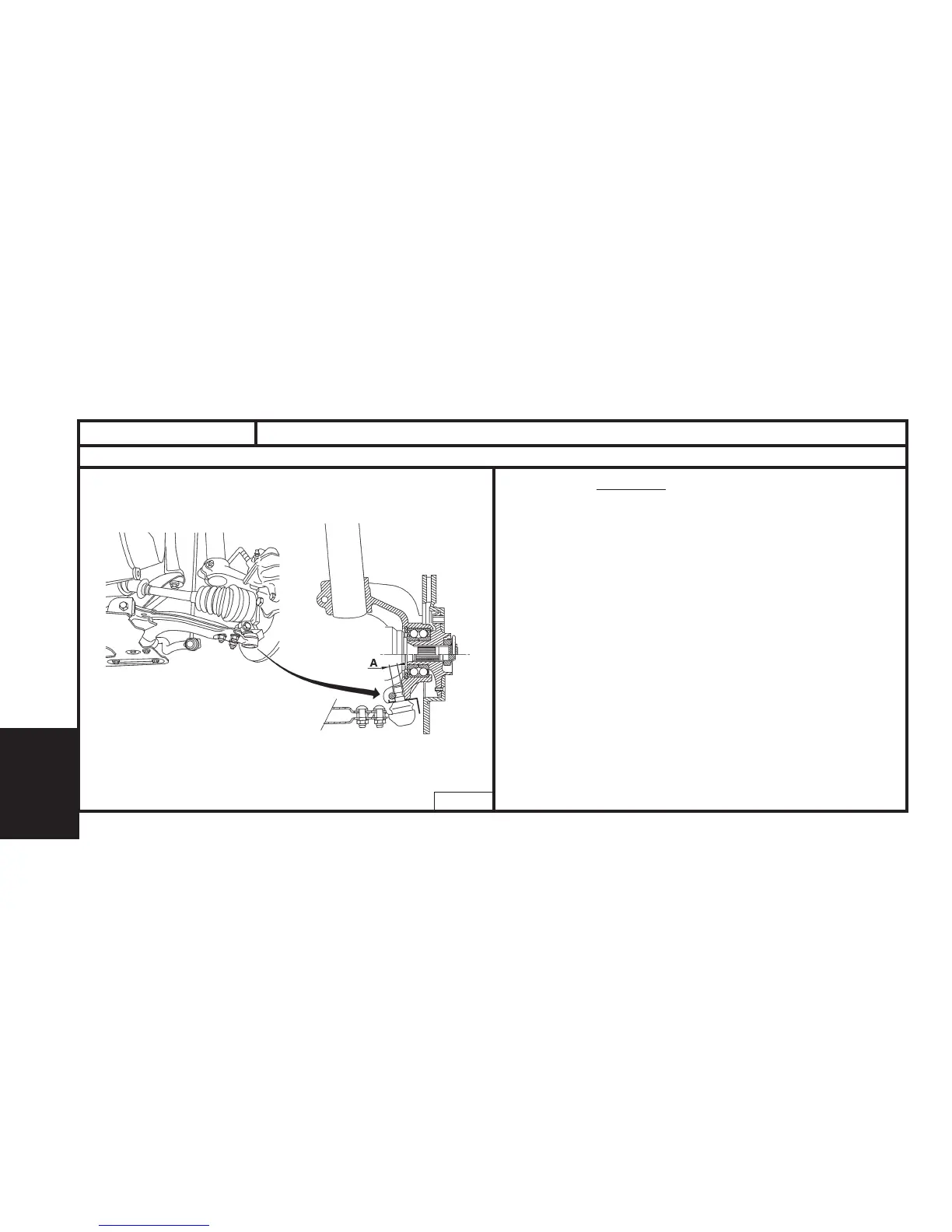

Evolution : Suspension arm ball-joint

XSARA - All Types

Application from RPO : 7968.

New components :

- Suspension arm ball-joint.

- Pivot.

Old fitting ØA = 16 mm.

New fitting ØA = 18 mm.

Repair requirements.

ESSENTIAL : Swapping of old and new components is forbidden.

It is permitted to fit a new pivot/ball-joint assembly on one side of an old

vehicle.

Replacement Parts.

The old components are still available from Replacement Parts.

B3CP054D
