367

AXLES

SUSPENSION

STEERING

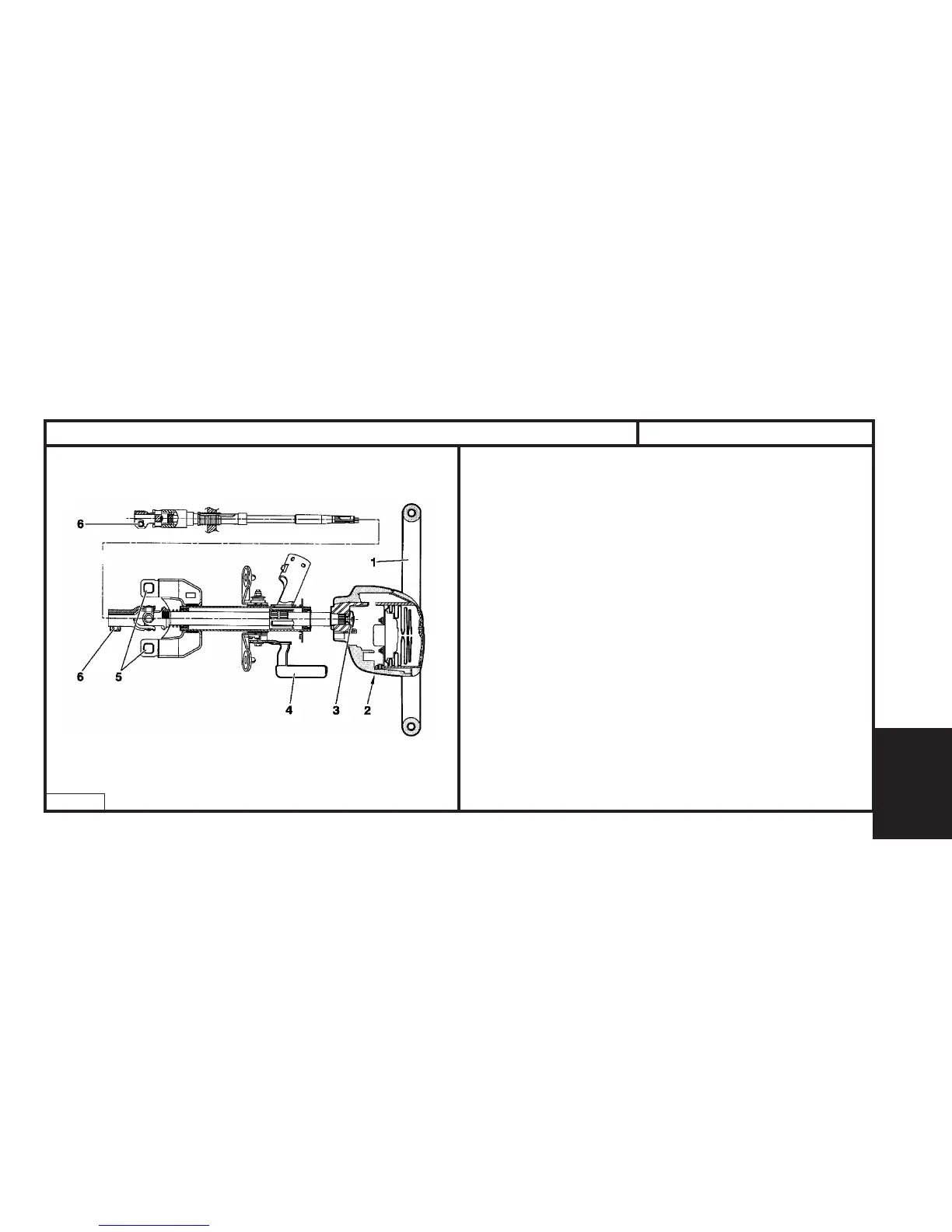

STEERING COLUMN SPECIFICATIONS

Left hand drive = Green marking.

Right hand drive = White marking.

(1) Steering wheel.

(4) Steering column adjustment.

Tightening torques m.daN.

- (2) Airbag to steering wheel fixing : 0.8 ± 0.1

- (3) Steering wheel fixing : 3.3 ± 0.6

- (5) Steering column to support fixing : 4 ± 1

- (6) Steering cardan joint fixing : 2.3 ± 0.2

B3EP116D
