359
AXLES
SUSPENSION
STEERING

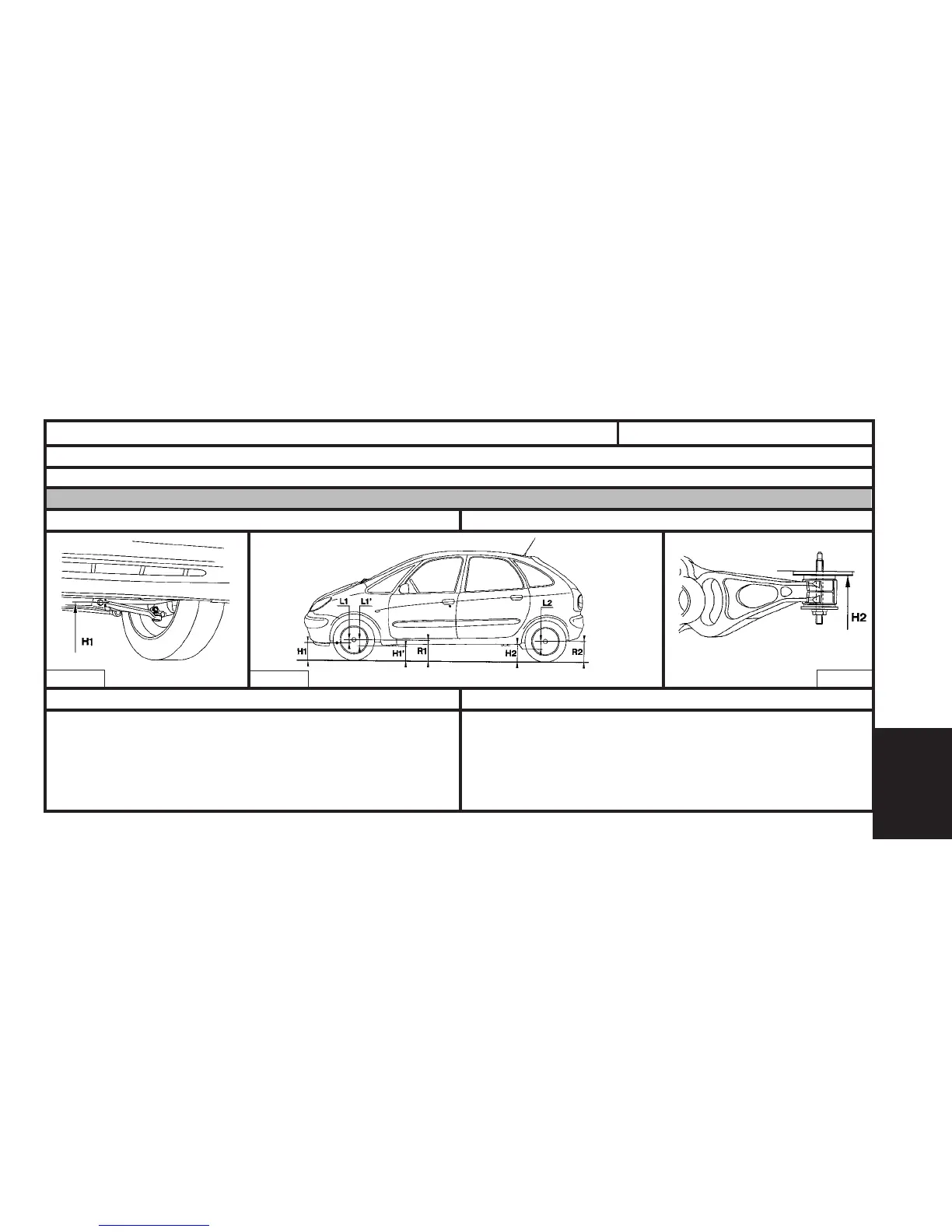

H1 = R1 – L1 H1’ = R1 – L1’
H1 = From the front suspension arm linkage bolt axis to the ground.
R1 =Radius of the front wheel when laden.
L1 = From the centre of the wheel to the front suspension arm linkage
bolt axis.
H1’ = From the front jacking point to the ground.
L1’ = From the front jacking point to the radius of the front wheel when laden.
H2 = R2 - L2
H2 = From the rear axle silentblock face to the ground.
R2 = Radius of the rear wheel when laden.
L2 = From the centre of the wheel to the rear axle silentblock face.
AXLE GEOMETRY
Measurements at reference height
NOTE : To make the setting of reference height easier, it is acceptable to take the measurement from the flange of the jacking point.
WARNING : The values shown should only be used as guides. In case of doubt, check the settings at reference height
Rear heightFront height
B3CP05BC
B3CP058D
B3DP079C
XSARA PICASSO - All Types
