Practical information

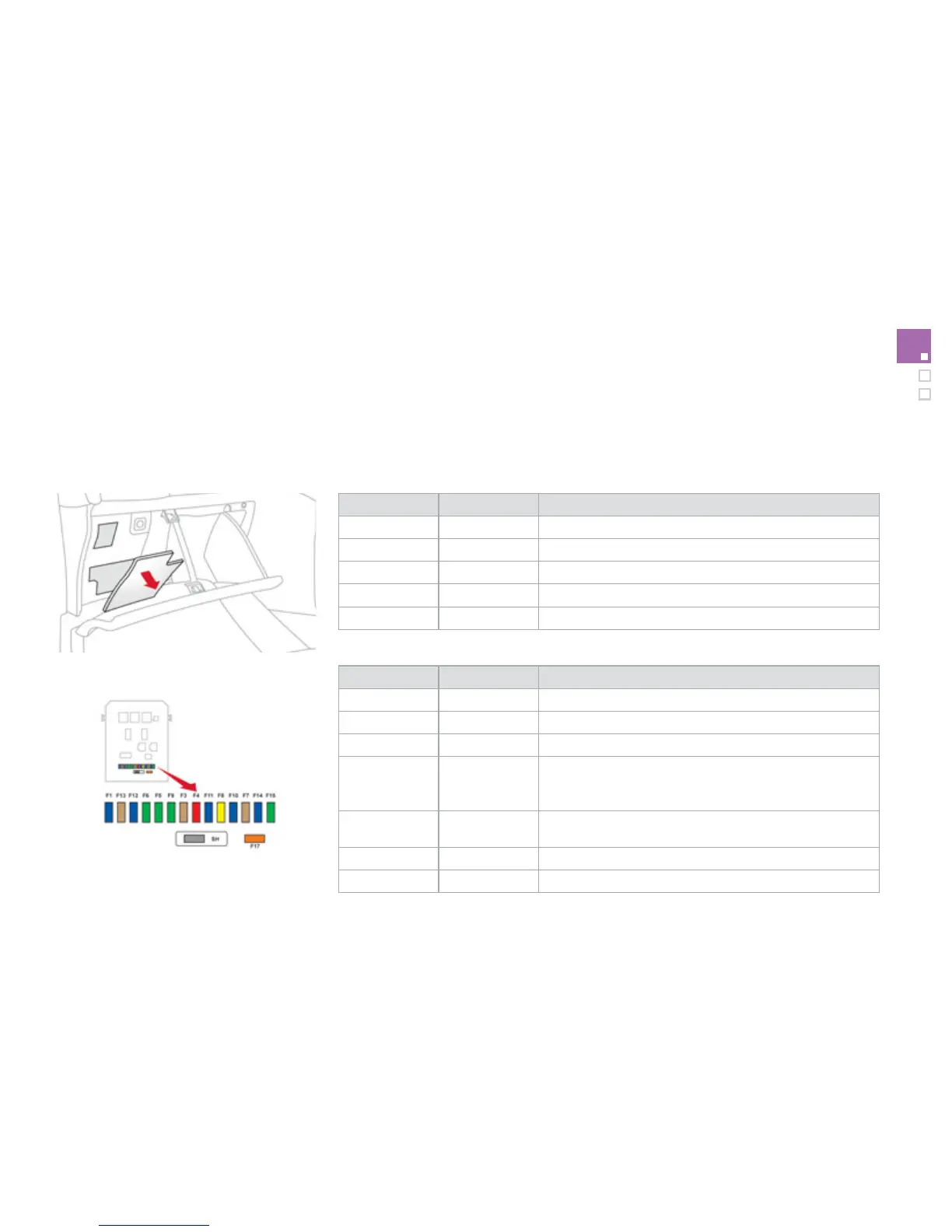

Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
) Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 - Not used.
FH38 20 A Hi-Fi amplifier.
FH39 - Not used.
FH40 40 A Trailer relay unit.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A
Air conditioning, clutch switch, electrochromatic mirror,
particle filter pump (Diesel), diagnostic socket, airflow
sensor (Diesel).
F5 30 A
Electric windows panel, passenger’s electric window control,
front electric window motor.
F6 30 A Driver’s electric window motor.
F7 5 A Courtesy lamp.
