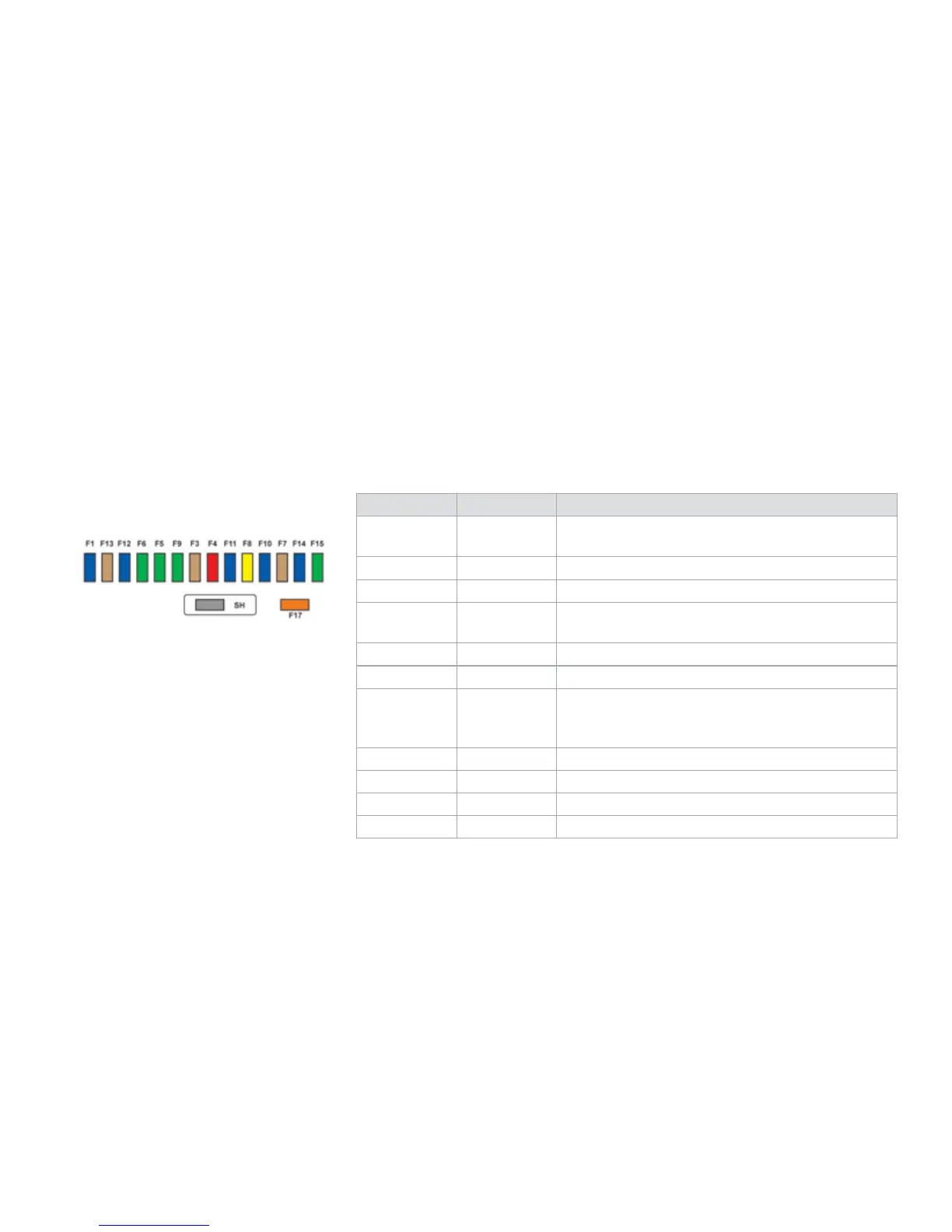

Fuse N° Rating Functions
F8 20 A
Multifunction screen, audio system, navigation radio, alarm
control unit, alarm siren.
F9 30 A 12 V socket, portable navigation support supply.
F10 15 A Steering wheel controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox control unit.
F12 15 A Rain/brightness sensor, trailer relay unit.
F13 5 A Main stop switch, engine relay unit.
F14 15 A
Parking sensors control unit, airbag control unit,
instrument panel, digital air conditioning, USB Box,
Hi-Fi amplifier.
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and door mirrors demisting/defrosting.
SH - PARC shunt.
