Press the tongue, slide the cover of the box
to mid travel then remove it for access to
the jack.

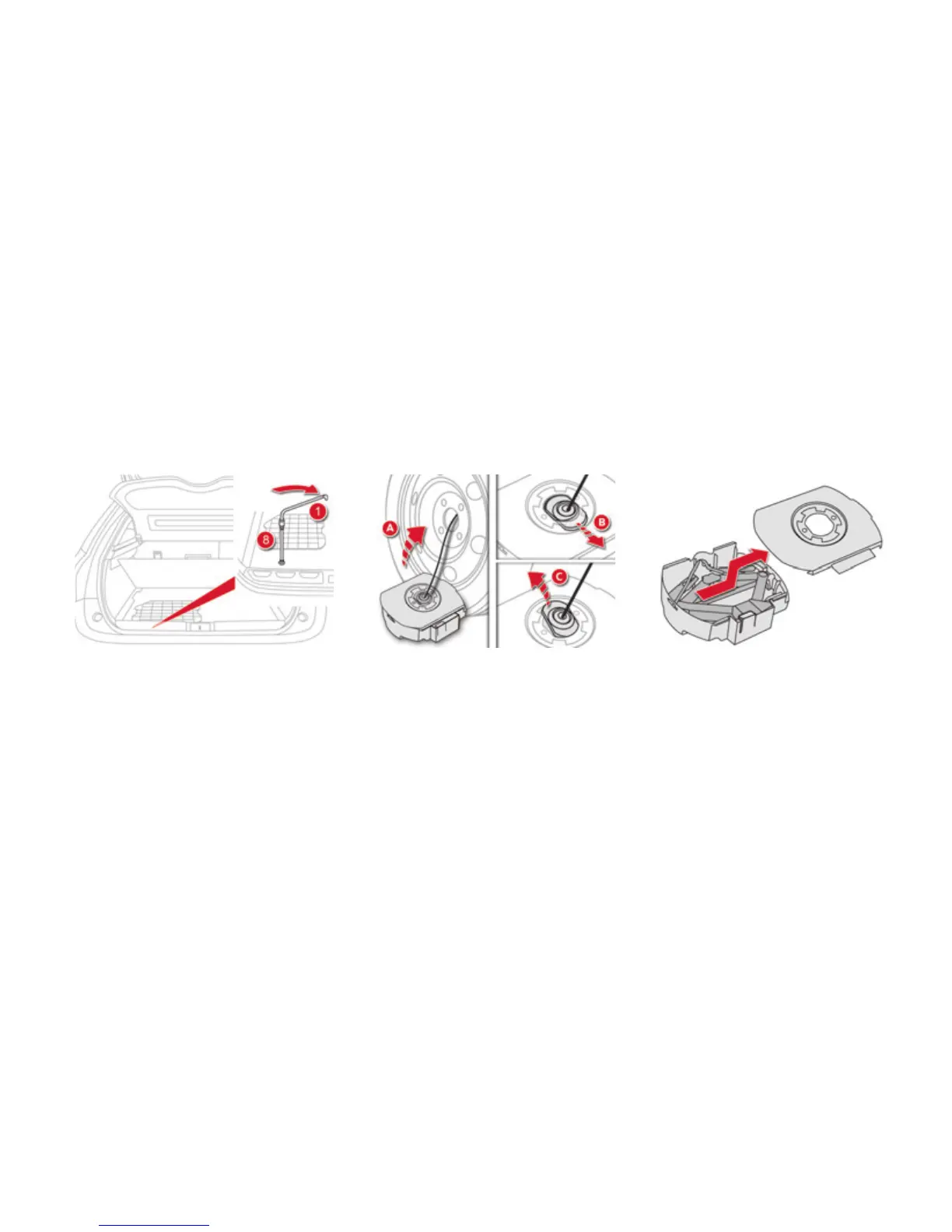

Taking out the spare wheel
Raise the floor to reveal the spare wheel
carrier drive nut.
Turn this drive nut fully clockwise , using
the wheelbrace 1 and the extension 8 , to
unwind the winch cable, until the spare
wheel is flat on the ground. Unwind the
length needed for access to the wheel.
Detach the assembly of wheel and box
from the rear of the vehicle.
Remove the hook with its connection plate
to release the assembly of wheel and box,
as shown in the illustration.
Pull out the wheel for access to the box.
