330
AXLES
SUSPENSION
STEERING

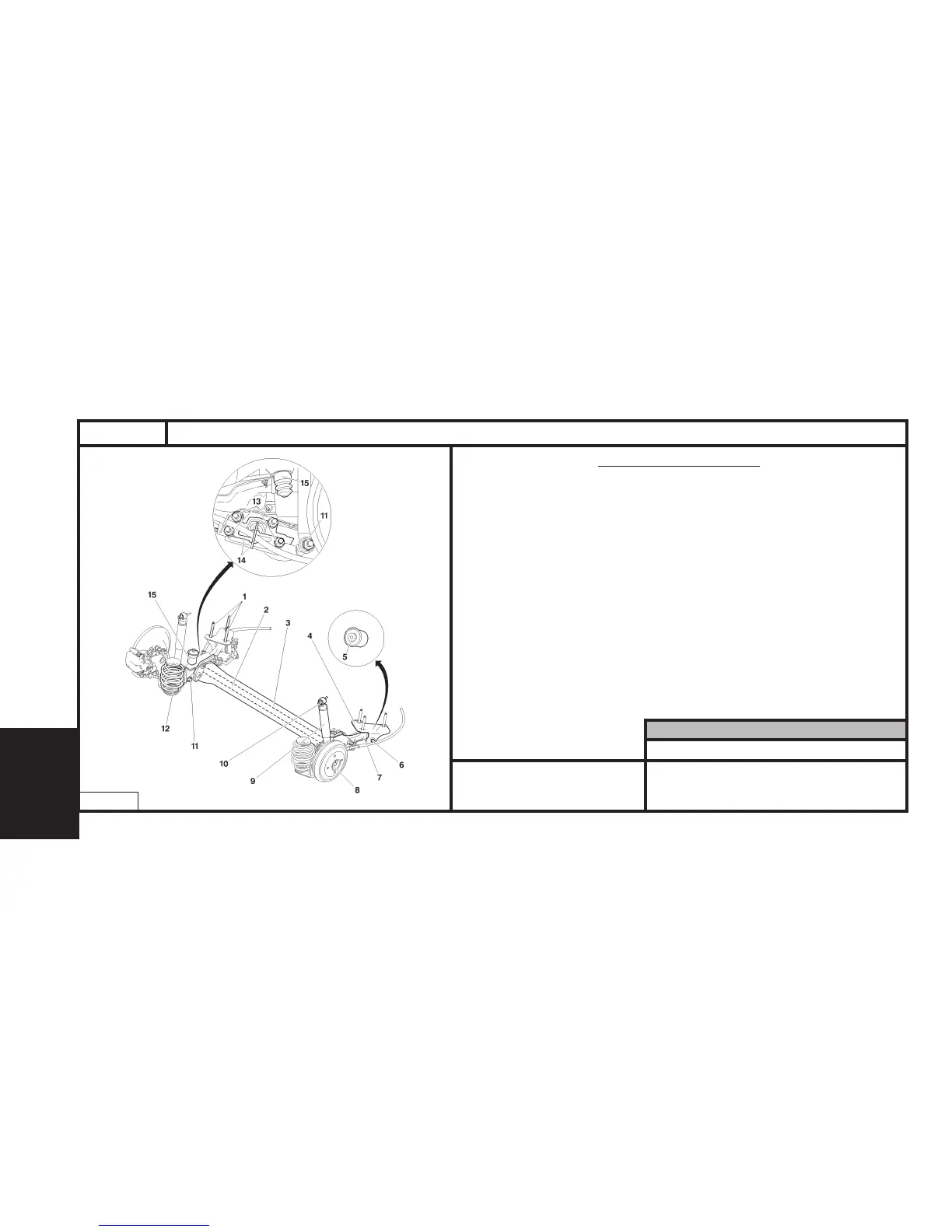

REAR AXLE
Tightening torques (m.daN)
(1) Rear axle fixing screw : 10 ± 1
(2) Anti-roll bar :
(3) Rear axle crossmember :
(4) Rear suspension arm rubber mounting yoke :
(5) Rear suspension arm rubber mounting :
(6) Yoke / suspension arm fixing screw : 7,6 ± 0,5
(7) Rear suspension arm :
(8) Stub axle bearing nut : 20 ± 2 greased
(9) Damper :
(10) Damper upper fixing : 4,5 ± 0,4
(11) Damper lower fixing : 9,3 ± 1
(12) Suspension spring :
(13) Suspension arm fixing on rear axle crossmembe : 13 ± 1,3
(14) Secondary brake cable guide and support assembly :
(15) Travel stop :
Anti-roll bar
Diameter (mm)
B3DP09GP
HFX- KFV- NFU
8HX-8HW
8HV-8HY
25.5 (tubular)
C3
