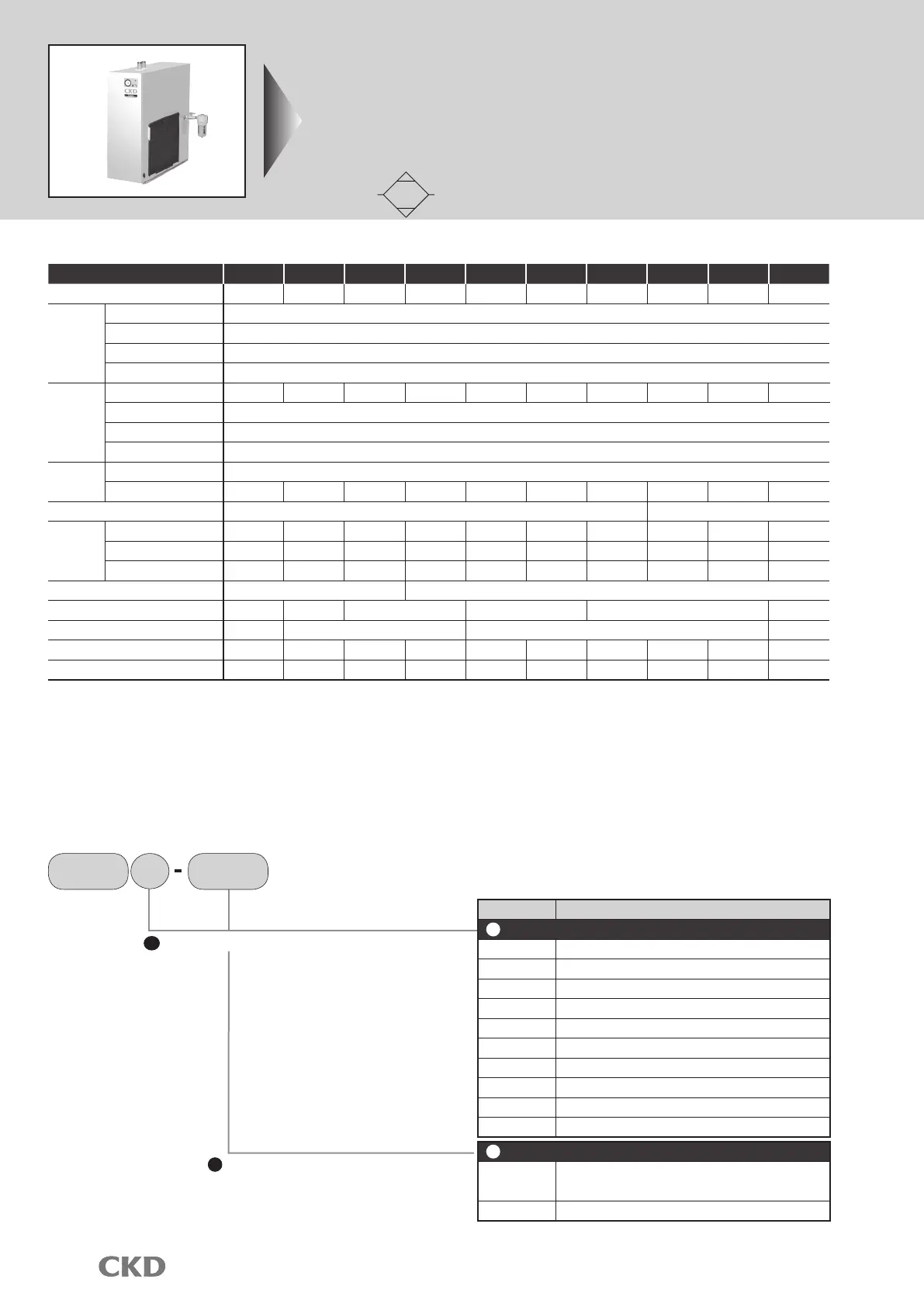

1
JIS symbol
Note 1: Standard paint color. Outer panel: Munsell No. 7.5Y7.5/0.5. Base: Galvanized steel plate (base metal).
Note 2: Value converted into air compressor intake state at 32°C atmospheric pressure and relative humidity 75%.
Note 3: If both of the inlet air temperature and ambient temperature are maximum 80°C and 43°C respectively, use according to the rated ow is not guaranteed.
Operating life is shortened if operated continuously.
Note 4: The pressure drop is a typical value and not a guaranteed value.
Note 5: For guaranteed performance values, please contact us.
Model No.
GX8203D GX8204D GX8208D GX8215D GX8222D GX8237D GX8255D GX8265D GX8275D GX8295D
Applicable air compressor kW ~2.2 3.7 7.5 15 22 37 55 65 75 95
Usage range
Working uid
Compressed air
Inlet air temperature °C (Note 3)
10~80
Inlet air pressure MPa
0.2~1.0
Ambient temperature °C
2~43
Rated
Treated ow rate m
3
/min (Note 2)
0.32 0.70 1.10 2.80 4.60 7.60 8.80 10.70 14.90 18.40
Inlet air temperature °C
50
Inlet air pressure
0.7
Ambient temperature
35
Performance
Outlet air pressure dew point
10 (Note 5)
Pressure drop MPa (Note4)
0.010 0.006 0.003 0.014 0.019 0.014 0.007 0.015 0.018 0.019
Power supply
Single phase 220V 50Hz 3 phase 380V 50Hz
Electric
specication
Power consumption kW
0.27 0.28 0.37 0.74 1.90 2.00 2.00 3.7 3.8 4.8
Operating current A
1.5 1.5 2.2 4.7 8.8 9.2 9.2 7.6 7.8 9.4
Starting current A
6 6 8 20 43 43 43 56 56 56
Refrigerant
R-134a R-410A
Air inlet/outlet port size
R
1
/
2
R3/4 R1 R1
1
/
2
R2 R2
1
/
2
Drain discharger
DT3010-15-W DT3000-15-W DT4000-15-W 5100-4C-FL445314
Product mass kg
18 26 35 44 83 94 106 140 167 233
Exhaust heat kW
0.6 0.7 1.1 2.7 5.3 6.7 7.8 9.9 12.4 15.6
How to order
A
Classication of capacity
GX82
Symbol Descriptions
Classication of capacity
03D 2.2kW
04D 3.7kW
08D 7.5kW
15D 15kW
22D 22kW
37D 37kW
55D 55kW
65D 65kW
75D 75kW
95D 95kW
Voltage
AC220V
GX8203D,GX8204D, 8208D, 8215D
GX8222D, 8237D, 8255D
AC380V GX8265D, 8275D, 8295D
A
B
15D
Specifications
Voltage
B
AC220V
Refrigerating Type Air Dryer
GX8200 Series
●
Applicable air compressors : ~2.2kW, 3.7kW, 7.5kW, 15kW, 22kW, 37kW, 55kW, 65kW,
75kW, 95kW.
