Turn the power of the master and slave side sensors ON at the same time.
(Note 2) (Note 3)
Setting details are 16-bit encoded, and displayed with orange in the main display section of the master side sensor, then a copy starts.
The same codes as the procedures are displayed with green in the main display section of the slave side sensor, and " " is displayed
in the sub-display section. (A copy is completed).
Turn off the power of the master and slave side sensors, then remove wiring.
* If a copy of setting details is repeatedly made to another sensor, follow procedures to .

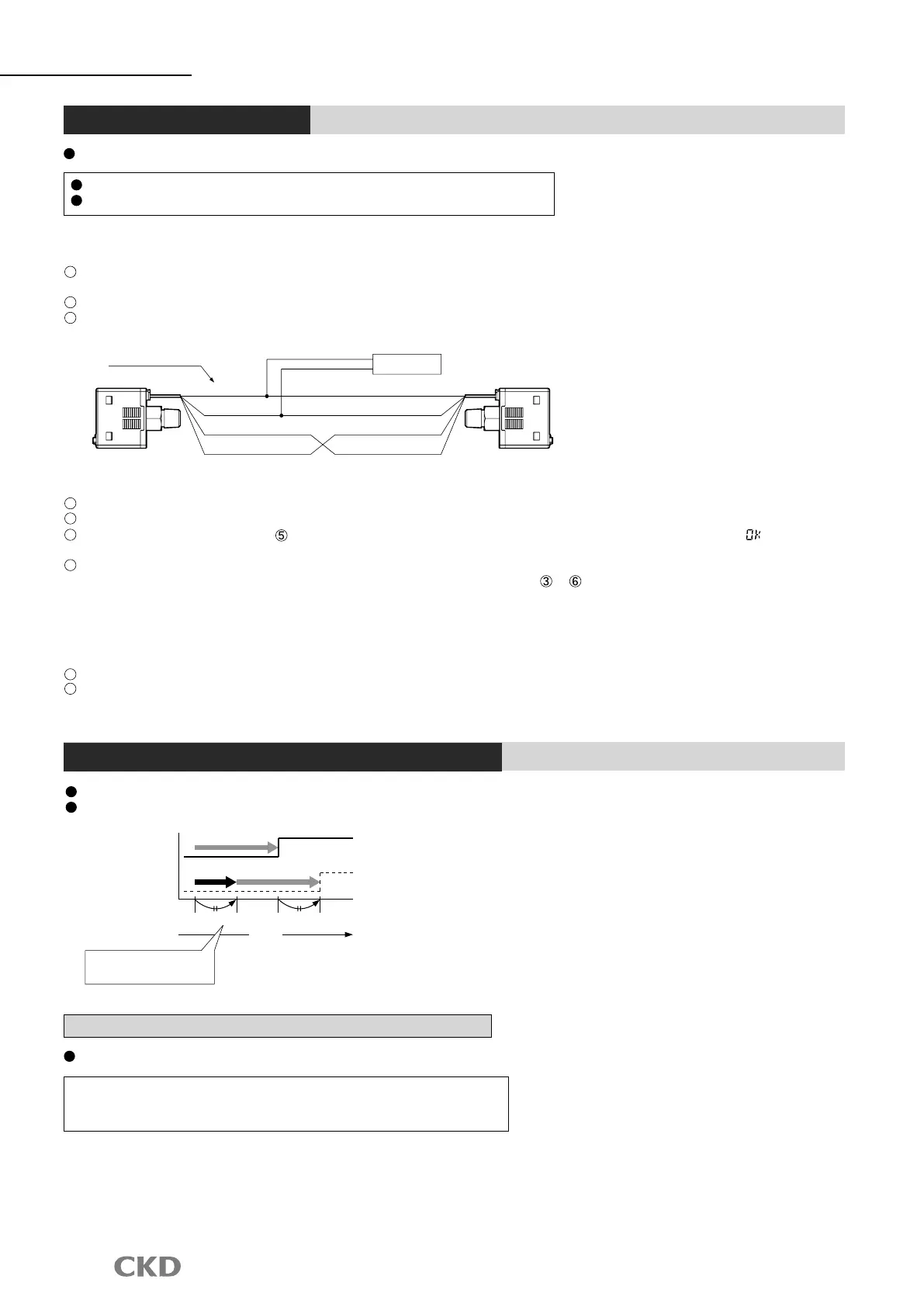

PPX Series
This makes a copy of setting details to the slave side sensor from the master side sensor.
A copy between different models cannot be made.
The setting copy function applies to one slave side sensor per master side sensor.
<Installation procedure>
Set setting copy mode of the master sensor as "sending ON" or "ON-L", then press the mode switchover key to set ready state. Refer to
"Setting copy mode" in the PRO MODE section on page 13 for details.
Turn off the power of master side sensor.
Wire between master and slave sides as the following diagram.
Setting copy function
(Note 1): Analog voltage output/external input applies for high function type.
(Note 2): A copy of setting details could not be made if power is not turned on at the same time.
(Note 3): Pulse output is outputted from the comparison output 1 output, if power is turned on.
Turn on power of a master side sensor (with wiring of slave side sensor removed).
Hold down the mode switchover key for 2 seconds.
<To reset the master side sensor setting copy mode.>
Auto reference is the function that corrects the setting of detection pressure as the reference pressure when auto reference input.
Based on detection pressure P(a) when auto reference input, the setting (1)' is automatically corrected to "setting (1)+P(a)".
Auto reference (only high function type)
The set pressure range is wider than the rated pressure range in accordance with auto reference.
Setting available range and set pressure range after correcting
If the corrected settings exceed set pressure range when auto reference
input, the setting is automatically corrected to set pressure range.
Do not exceed set pressure range.
1
2
3
4
5
6
7
1
2
Lead wire color of
cable with connector
Power supply
Slave side sensor
Master side sensor
Comparison output 2 (Note 1) (white)
(White) comparison output 2 (Note 1)
Comparison output 1 (black)
(Black) comparison output 1
0V (blue)
(Blue) 0V
+V (brown)
(Brown) +V
The setting after auto
reference (1)' is
(1)'= (1) +P(a)
Detection pressure when
auto reference input
OFF
ON
OFF
ON
Pressure
Atmospheric pressure
P(a)
After auto
reference
Setting (1)'
Before auto
reference
Setting (1)
15
