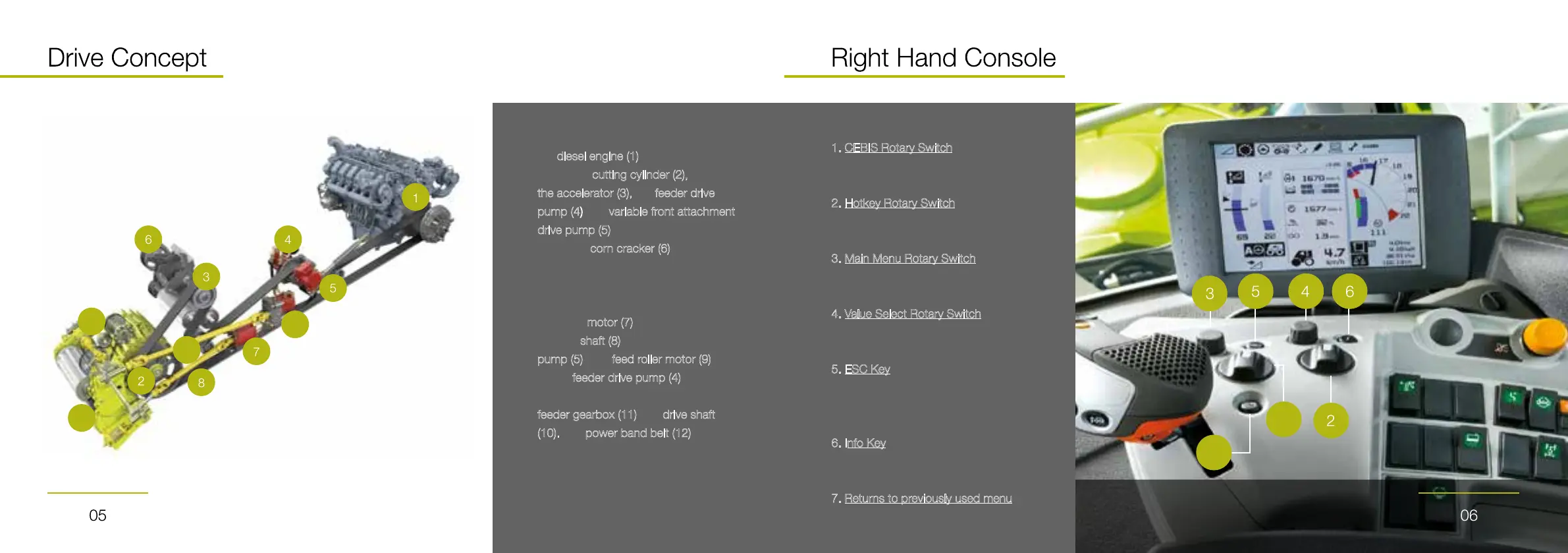

Drive is taken directly from
the
diesel engine (1) via a power band
belt to the
cutting cylinder (2),
the accelerator (3), the feeder drive
pump (4) and variable front attachment
drive pump (5). The accelerator shaft
drives the
corn cracker (6) by means of
another belt drive.
The front attachment drive is
driven by
motor (7) - connected
through
shaft (8), which is driven by
pump (5). The feed roller motor (9) is
fed by
feeder drive pump (4) and is
connected with the
feeder gearbox (11) and drive shaft
(10). The power band belt (12) is only
needed for driving the DIRECT DISC.
1
7
1. CEBIS Rotary Switch
Main machine functions
2. Hotkey Rotary Switch
Additional machine functions
3. Main Menu Rotary Switch
Menu navigation & value setting
4. Value Select Rotary Switch
Sets a value from the hotkey menu
5. ESC Key
Cancels a menu item/changes
between road and eld display
6. Info Key
Provides information about fault
7. Returns to previously used menu
