Claas JAGUAR 930 - Right Hand Switch Panel

11

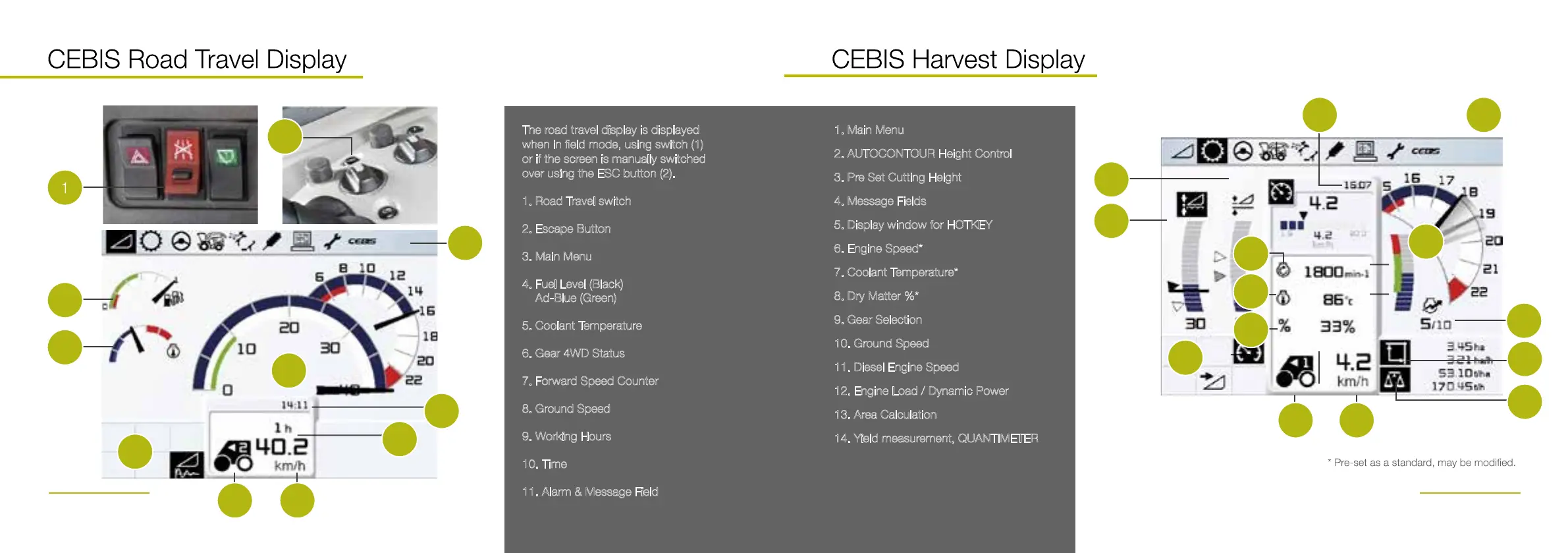

The road travel display is displayed
when in eld mode, using switch (1)
or if the screen is manually switched
over using the ESC button (2).
1. Road Travel switch
2. Escape Button
3. Main Menu
4. Fuel Level (Black)
Ad-Blue (Green)
5. Coolant Temperature
6. Gear 4WD Status
7. Forward Speed Counter
8. Ground Speed
9. Working Hours
10. Time
11. Alarm & Message Field
4
5
6 8
9
10
11
7
3
2
1
2
3
5
4
9 10
11
13
14
12
6
7
8
12
1. Main Menu
2. AUTOCONTOUR Height Control
3. Pre Set Cutting Height
4. Message Fields
5. Display window for HOTKEY
6. Engine Speed*
7. Coolant Temperature*
8. Dry Matter %*
9. Gear Selection
10. Ground Speed
11. Diesel Engine Speed
12. Engine Load / Dynamic Power
13. Area Calculation
14. Yield measurement, QUANTIMETER
