Claas MEDION 310 - Page 39

299 216.0 - RHB MEDION 340 - 310 2.1.1
Cab
CAB

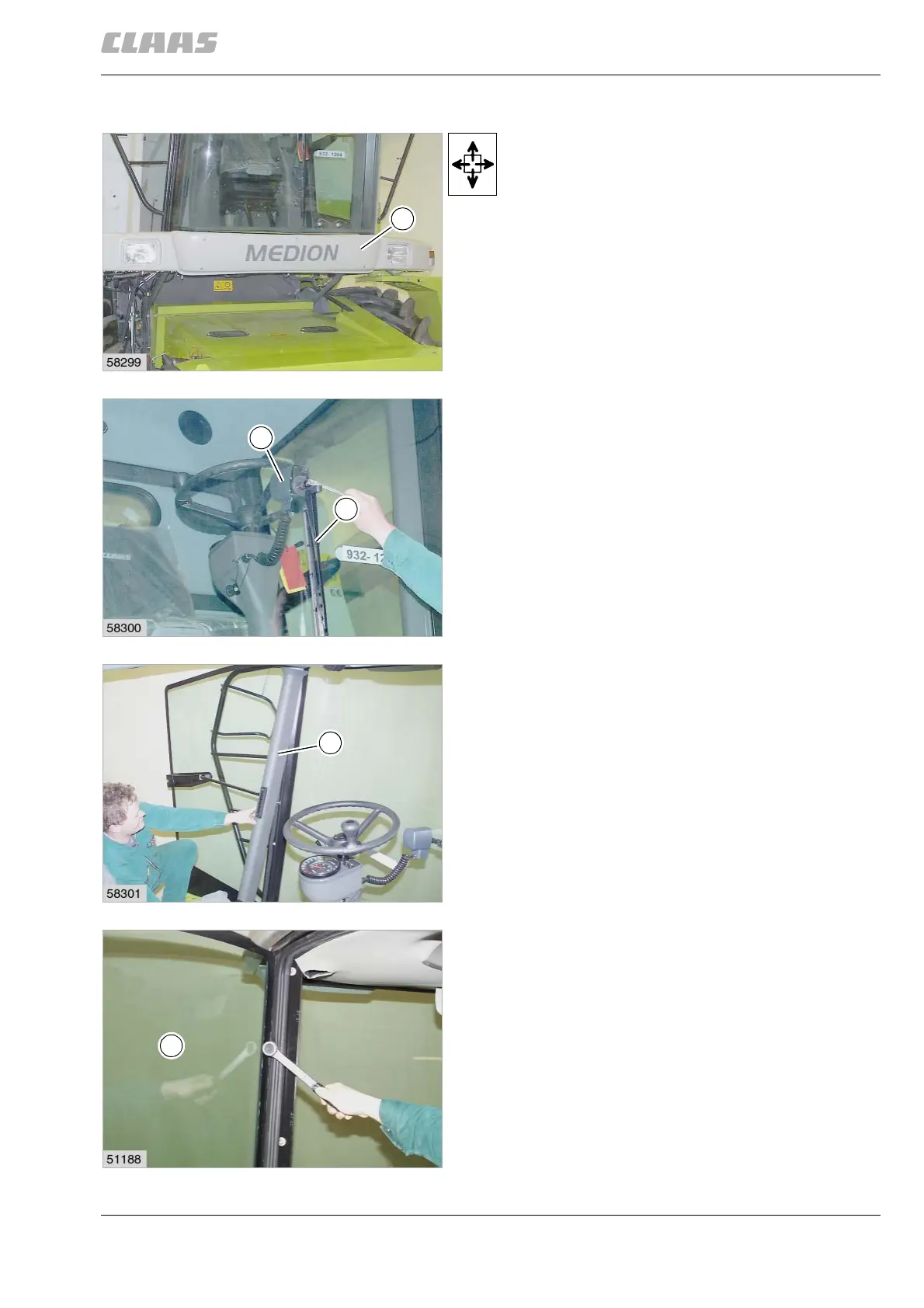

Removing the front frame
Unscrew panel (A).
(Fig. 1)
Unscrew the windscreen wiper (B).
Unscrew the wiper motor (D) from the windscreen.
(Fig. 2)
Remove the air inlet nozzles (E) on the left and right
side.
(Fig. 3)
Unscrew the doors (F) from the hinge on the side
panel on the left and right side.
(Fig. 4)
A
1
D
B
2
E
3
F
4
