Claas MEDION 310 - Installing the Radiator

299 216.0 - RHB MEDION 340 - 310 2.2.3
Cab heater

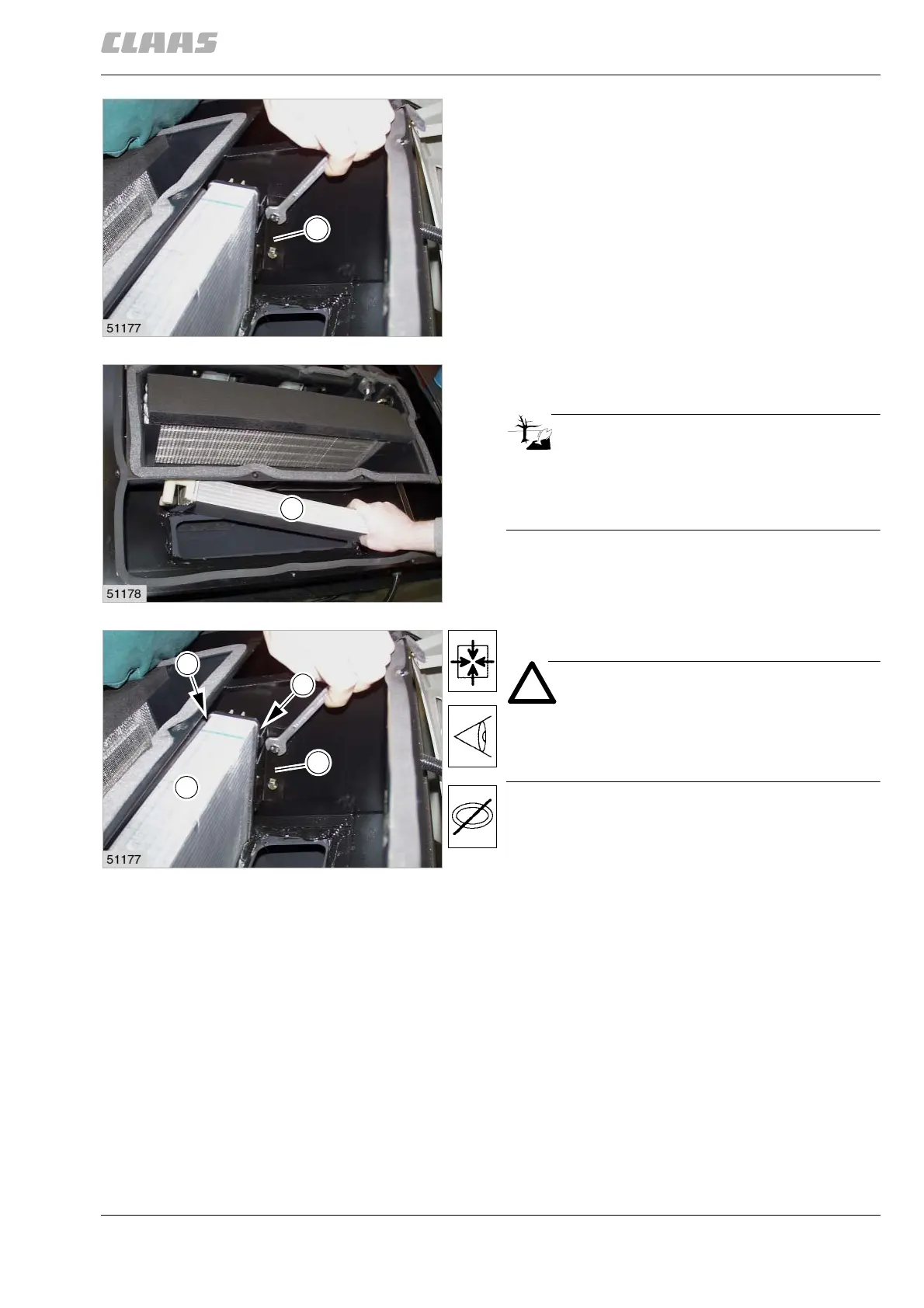

Unscrew angle (L) from cab side panel.
(Fig. 9)
Pull out radiator (K) to the top. Collect any leaking
cooling water.
Environment!
Dispose of cooling water in a way that is harmless
to the environment and in accordance with existing
anti-pollution regulations.
(Fig. 10)
Installing the radiator
Caution!
Before starting installation, check if heater
hoses are damaged and replace if
necessary.
1. Insert radiator (K) into cab top.
2. Bolt angle (L) to the cab side panel so that
radiator (K) makes firm contact at (M and N).
(Fig. 11)
L
9
K
10
K
L
M
N
11
