Claas MEDION 310 - Page 50

2.2.4 RHB MEDION 340 - 310 - 299 216.0

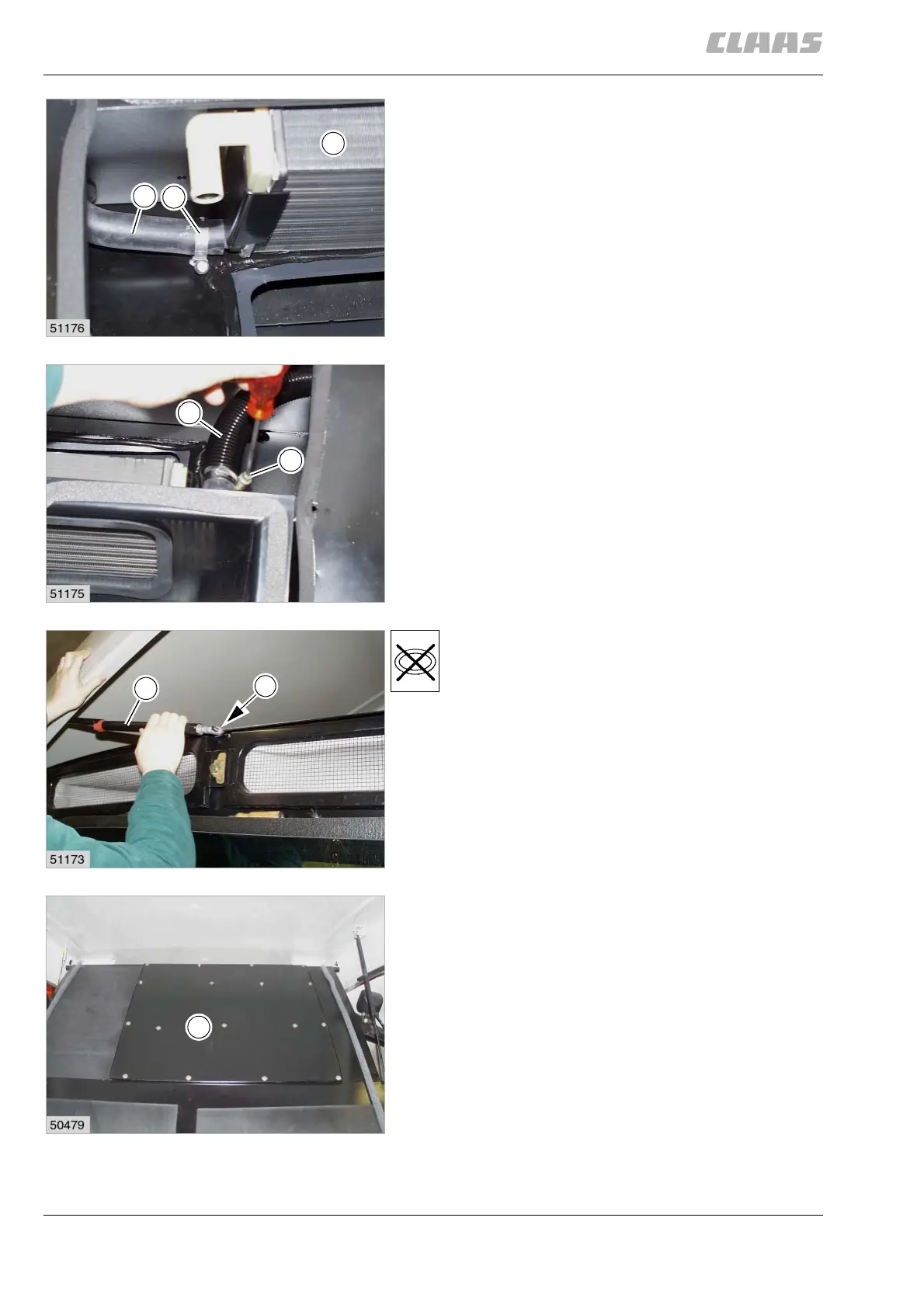

Cab heater
3. Fix heater hoses (H and P) to radiator (K) with
hose clamps (G).
(Fig. 12, 13)
4. Bolt gas struts (D) down at the cab top on the left
and right side at (E) with new lock nuts so that
they have a little play.
(Fig. 14)
5. Screw down cover (C) at the cab top.
(Fig. 15)
K
G
P
12
H
G
13
D
E
14
C
15
