Page 32 WS1.5", 2" and 2"QC Drawings and Service Manual

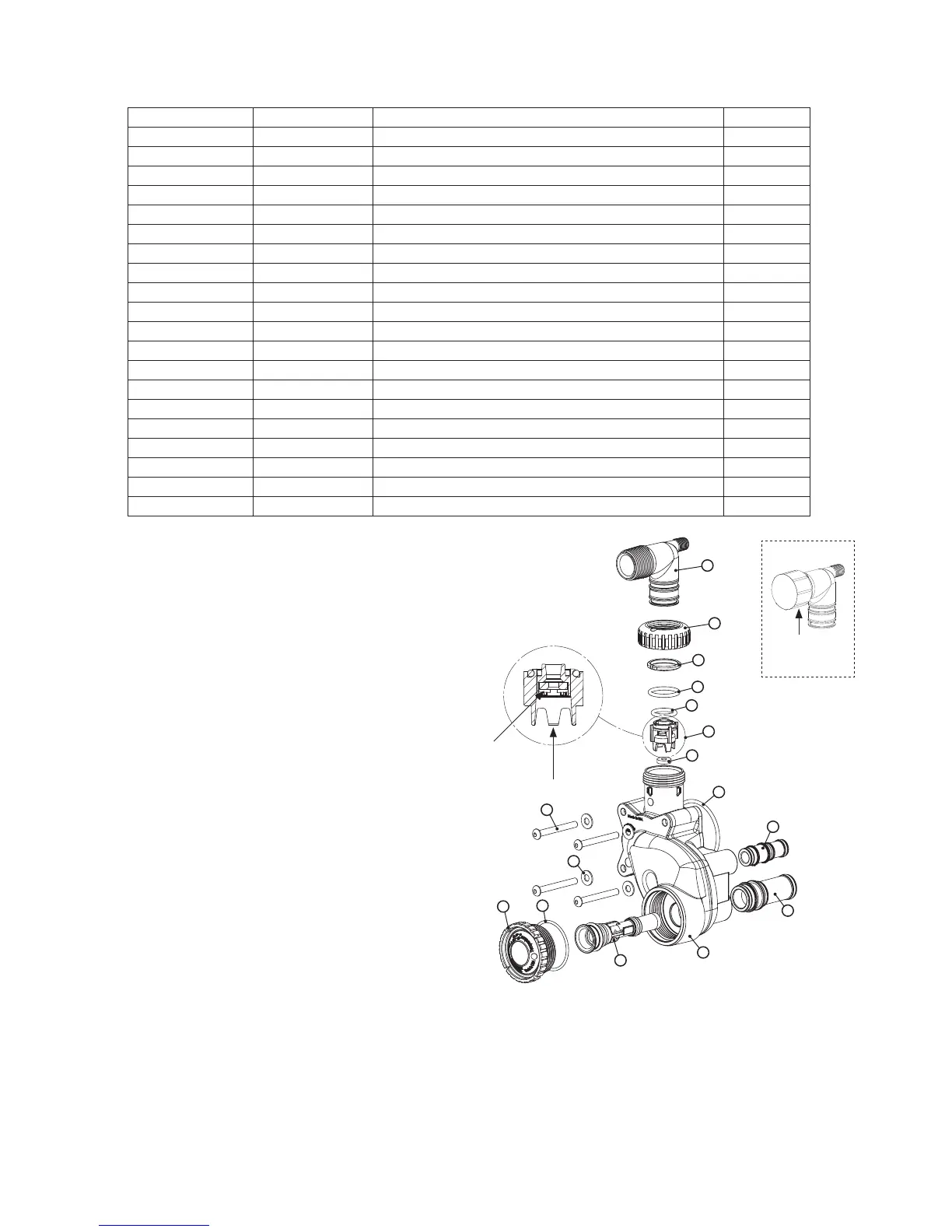

WS2 Injector Valve Body, Refi ll Flow Control and Injector
Drawing No. Order No. Description Quantity
1 V3477 WS2H INJECTOR CAP 1
2 V3152 O-RING 135 1
3 V3727 WS2 INJECTOR BODY ASSEMBLY 1
4 See page 33 WS2/2H INJECTOR ASSY 1
5 V3731 WS2 INJ DRAW TUBE DOWN ASSEMBLY 1
6 V3730 WS2 INJ FEED TUBE DOWN ASSEMBLY 1
7 V3315 O-RING 231 1
8 V3724 WASHER FLAT SS 1/4 4
9 V3643 BOLT BHCS S/S 1/4-20x2.25 4
10 V3162-022* WS1 DLFC 022 FOR 3/4 1
11 V3231 WS2H REFILL FLOWCNTRL RETAINER 1
12 V3277 O-RING 211 1
13 V3105 O-RING 215 1
14 V3150 WSI SPLIT RING 1
15 V3151 WS1 NUT 1 QC 1
16 V3149 WS1 FTG 1 PVC MALE NPT ELBOW 1
Not Shown V3189 WS1 FTG 3/4&1 PVC SLVNT 90 Optional
Not Shown H4915** FTG KIT 494 BV 1/2 POLYTUBE Optional
Not Shown V3499 WS2H FITTING CAP 1 IN THREADED Optional
Not Shown V3797*** WS1 FTG 1 PVC MALE BSPT ELBOW BSPT Only
*Any V3162-XXX fl ow control may be used. WS2 valves are
shipped with a V3162-022 (2.2 gpm) fl ow control. Flow control
sizes range from 0.7 up to 10 gpm. WS2 valves can only be set for
minutes of fi ll because various sizes of fl ow controls can be used.
To calculate for pounds or kilograms of salt, take minutes of fi ll
times the fl ow rate of the fl ow control being used to arrive at the
number of gallons of water be added to the brine tank. Each gallon
of water will dissolve approximately 3 pounds of salt.
**Use of H4915 may severely reduce brine draw rates.
*** BSPT Valves also include a V3797 WS1 FTG 1 PVC
MALE BSPT ELBOW
A V3731 WS2 INJ DRAW TUBE DOWN ASY contains one
D1262 O-RING 118 and two V3639 O-RING 119.
A V3730 WS2 INJ FEED TUBE DOWN ASY contains three
V3638 O-RING 113.
Backwash Only Valves include a V3499 but do not include the
following parts: V3189, H4915, V3162-022, V3231 and V3277.
3
4
2
1
9
8
Proper RFC orientation
directs refi ll water fl ow
toward the washer face
with radius and text.
Water Flow
14
13
12
11
7
5
10
16
15
6
Backwash Only
V3499 Cap
installed from
factory.
To Next Page
