Mixed-Mode Satellite and Subwoofer System
(Set INPUT SELECT Switch to STEREO)
8
Set X-Over Mode to OFF.
FREQ (hz)
80
100
125
150
200
L (mH)
8.0
6.4
5.1
4.2
3.2
C (uF)
497
398
318
265
199
NOTE: Chart values based on 4 ohm speakers.

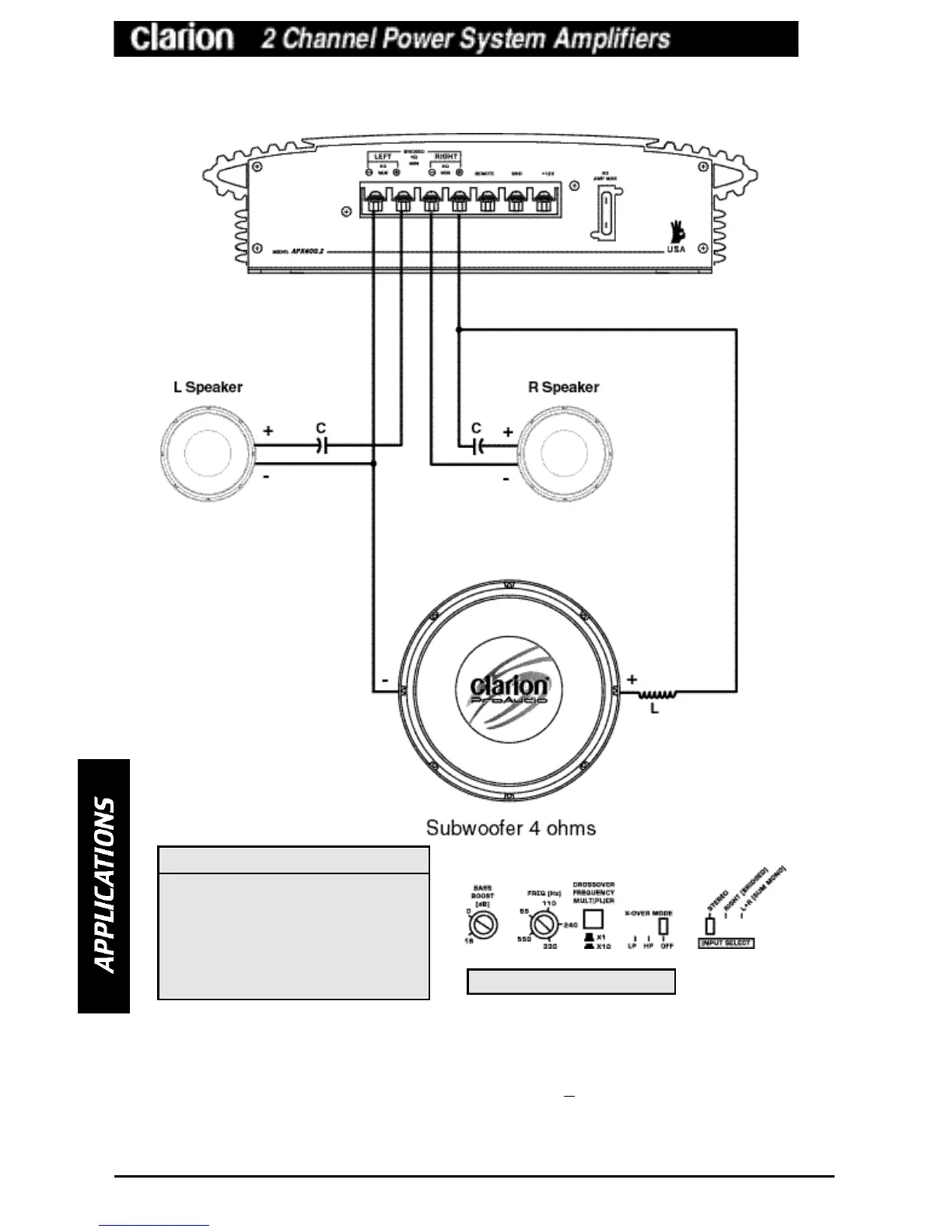

Figure 5 - The amplifier can be configured for a mixed-mode operation. The
table provides component values to create a 6dB per octave crossover at
specified frequencies. Use components that have a + 5% tolerance and
capacitors rated at 100V. NOTE: Choose the same frequency for both LP and
HP crossovers. Do not overlap frequencies, as this may damage the amplifier.
