FM Tuner
Frequency Range……87.9 MHz to 107.9 MHz
Usable Sensitivity……11 dBf
50 dB Quieting Sensitivity……17 dBf
Alternate Channel Selectivity……75 dB
Stereo Separation (1 kHz)……35 dB
Frequency Response (±3 dB)
……30 Hz to 15 kHz
AM Tuner
Frequency Range……530 kHz to 1,710 kHz
Usable Sensitivity……25 µ V
Tape
Wow & Flutter (WRMS)……0.06%
Channel Separation (1 kHz)……45 dB
Signal to Noise Ratio
……70 µ s (CrO
2
, FeCr, Metal):
58 dB
Frequency Response (±3 dB)
120 µ s (normal)……30 Hz to 18 kHz
70 µ s (CrO
2
, FeCr, Metal)……30 Hz to 20 kHz
Power Amplifier
Maximum Power Output……140 W (35 W × 4ch)
Continuous Average Power Output
……14 W × 4, into 4 Ω, 20 Hz to 20 kHz,
1% THD
Pre-Amplifier
Bass Control Action (30 Hz)……±15 dB
Treble Control Action (10 kHz)……±10 dB
Line Output (with A/C 1 kHz, 10 kΩ)……0.7 V
General
Power Supply Voltage
……14.4 V DC (10.8 V to 15.6 V allowable)
Current Consumption…… Less than 10 A
Speaker Impedance
……4 Ω (4 Ω to 8 Ω allowable)
Weight……3.52 lb. (1.6 kg)

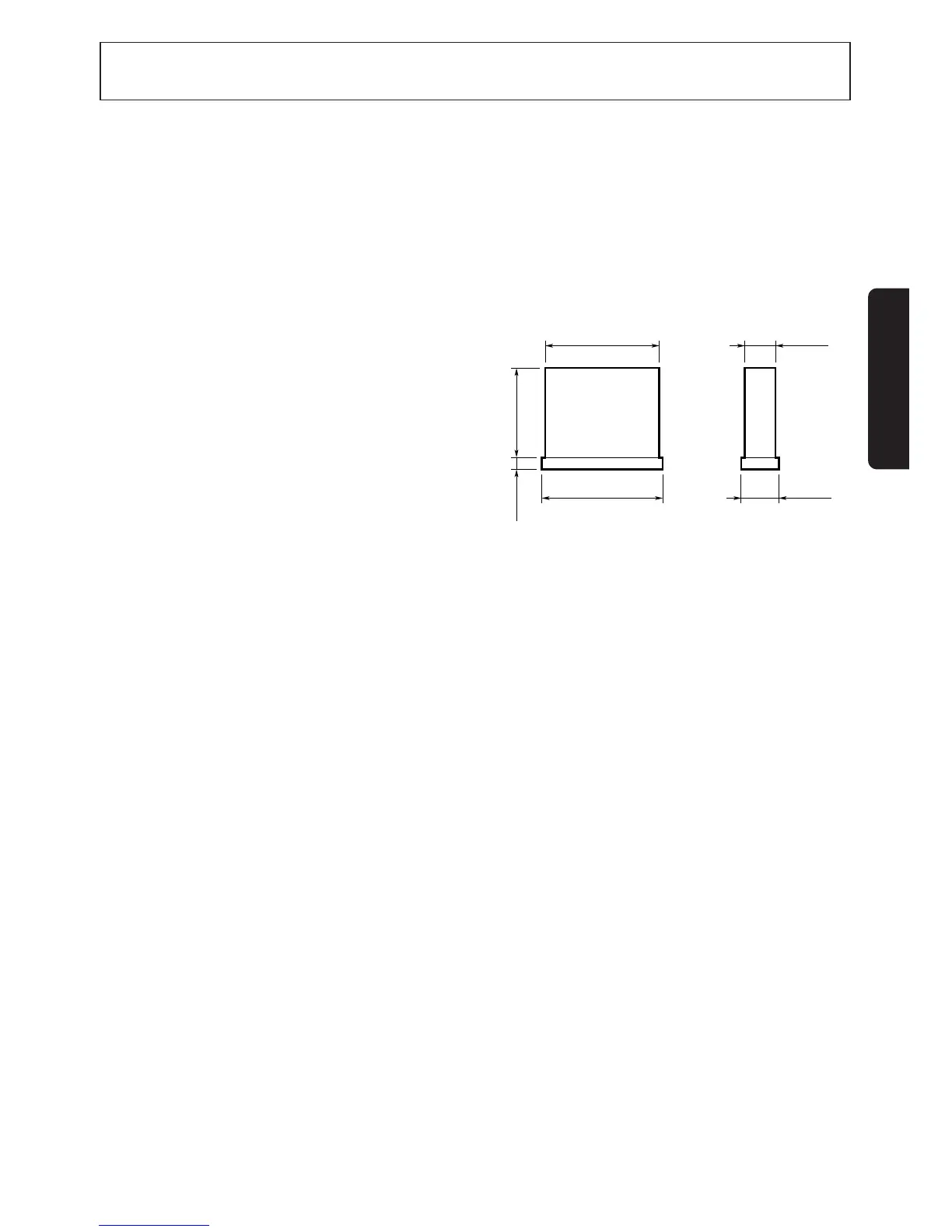

Dimensions
……7 " (178 mm) Width × 2 " (50 mm) Height
× 6-3/32 " (155 mm) Depth
Notes:
•
Specifications comply with EIA Standards.
•
Specifications and design are subject to change with-
out notice for further improvement.
2 "
(50 mm)
2-1/4
"
(58 mm)
7 "
(178 mm)
7-3/8
"
(188 mm)
6-3/32
"
(155 mm)
3/4
"
(19 mm)
9. SPECIFICATIONS

Clarion ARX4570 Specifications

General

Brand	Clarion
Model	ARX4570
Category	Car Stereo System
Language	English
