Clarion BD239RG User Manual

280-7877-00
DB338R/BD239R/DB238R 75 DB338R/BD239R/DB238R
280-7877-00
6 DB338R/BD239R/DB238R
280-7877-00
English English
Français
Deutsch
Italiano
Nederlands
Español
Svenska
Português
English
[
FNC
]
[
BND
]
[
ROTARY
]
[
A-M
]
[
DIRECT
]
[
PS/AS
]
[
TA
]
[
PTY
]
Main unit / Appareil principal / Hauptgerät / Apparecchio principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking: Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo.
[
RELEASE
]
[
Z
]
[
Q
]
[
CD SLOT
]
[
AF
]
[
RDM
]
[
s
]
[
RPT
]
[
SCN
]
[
DISP
]
[
a
],[
d
]
[
SS
]
2.

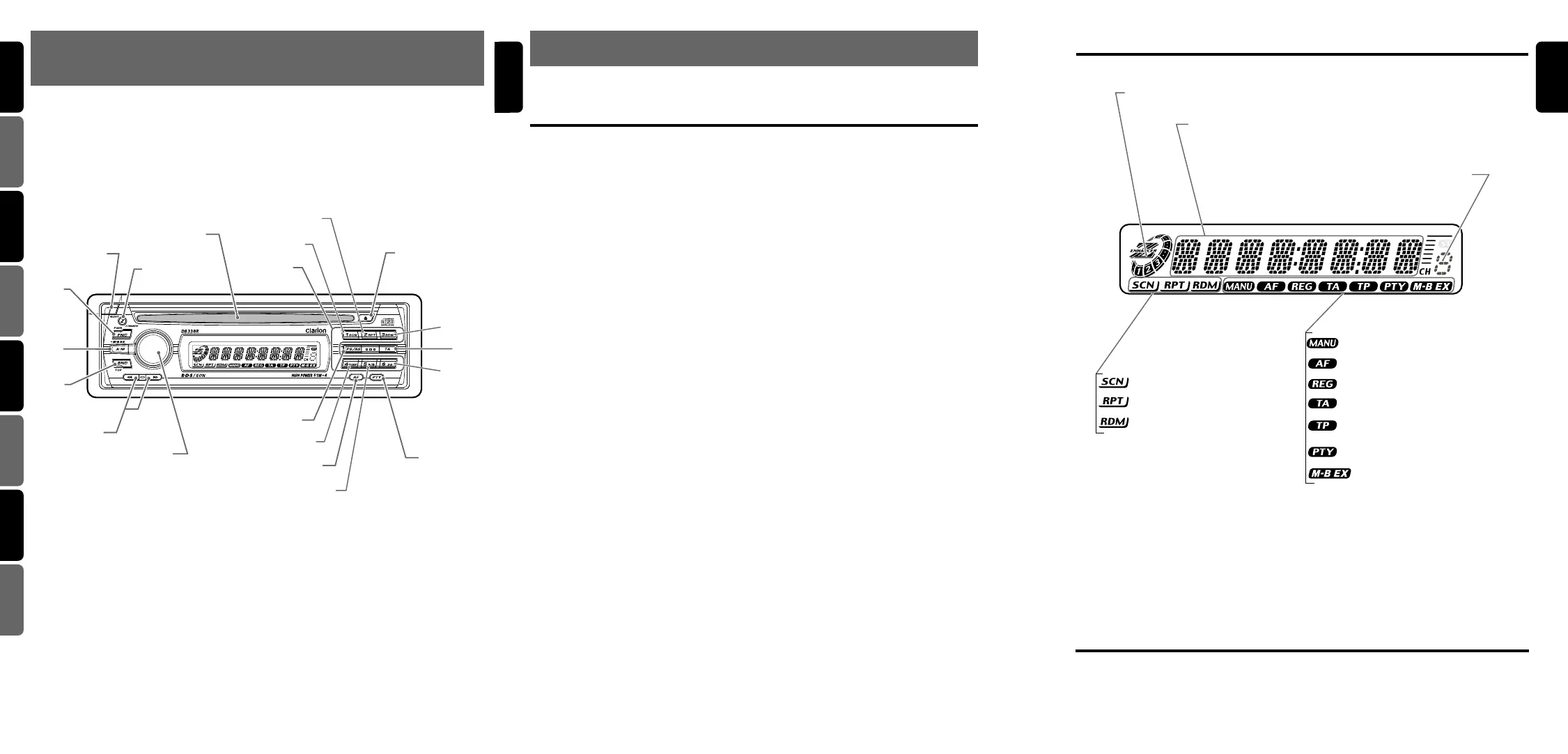

CONTROLS / LES COMMANDES / REGLER / CONTROLLI
REGELAARS / CONTROLES / KONTROLLER / CONTROLOS
3.NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
• Switches the operation mode among the ra-
dio mode, etc.
[RELEASE] button
• Press the [RELEASE] button to unlock the
DCP.
[Z] button
• Use the button to select one of the three
types of sound characteristics already stored
in memory. (Z-Enhancer)
[CD SLOT]
• CD insertion slot.
[DIRECT] button
• Stores a station into memory or recall it di-
rectly while in the radio mode.
[SCN] button
• Performs scan play for 10 seconds for each
track while in the CD mode.
[RPT] button
• Plays repeatedly while in the CD mode.
[Q] button
• Ejects a CD when it is loaded into the unit.
[RDM] button
• Performs random play while in the CD mode.
[TA] button
• Use the button to set the TA (Traffic An-
nouncement) standby mode.
[SS] button
• Press the [SS] button while keeping the
[BND] button pressed, to turn the screen
saver function on or off.
[PTY] button
• Use the button to set the PTY (Programme
Type) standby mode or PTY items.
Names of the Buttons and their Functions
[s] button
• Plays or pauses a CD while in the CD mode.
[AF] button
• Press the button to turn on or off the AF (Al-
ternative Frequency) function.
• When the button is pressed and held, Re-
gional function can select ON or OFF.
[DISP] button
• Press the [DISP] button while keeping the
[BND] button pressed, to switch the display
indication (Main display, clock display).
[PS/AS] button
• Performs preset scan while in the radio
mode. When the button is pressed and held,
auto store is performed.
[ROTARY] knob
• Adjust the volume by turning the knob clock-
wise or counterclockwise.
• Use the knob to perform various settings.
[a], [d] button
• Selects a station while in the radio mode or
selects a track when listening to a CD.
• Press and hold the button for 1 second or
longer to switches the fast-forward/fast-back-
ward.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
• Plays a first track while in the CD mode.
[A-M] button
• Press and hold the button for 1 second or
longer to switch the MAGNA BASS EX-
TEND on/off.
• Use the button to switch to the audio mode
(bass/treble, balance/fader)
Operation status indication
PS names, PTYs, CT (clock), etc. are displays.
: Scan indication
: Alternative frequency indication
: Regional indication
: Traffic announcement indication
: Traffic programme indication
: Programme type indication
: Manual indication
: Repeat indication
: Random indication
Preset channel indication (1 to 6)
Display Items
Z-enhancer indication
: M-B EX(MAGNA BASS EXTEND)
indication
LCD Screen
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.

Clarion BD239RG Specifications

Radio

FM receiving frequency range	87.5 to 108 MHz
MW receiving frequency range	531 to 1602 kHz
LW receiving frequency range	153 to 279 kHz

CD Player

frequency response	10 Hz to 20 kHz
signal to noise ratio	100 dB
dynamic range	95 dB

General

output power	4 x 25 W
power supply voltage	14.4 V DC
power consumption	Less than 15 A

Weight and Dimensions

weight	1.15 kg
width	178 mm
height	50 mm
