Clarion CZ101 - User Manual

Other manuals for Clarion CZ101

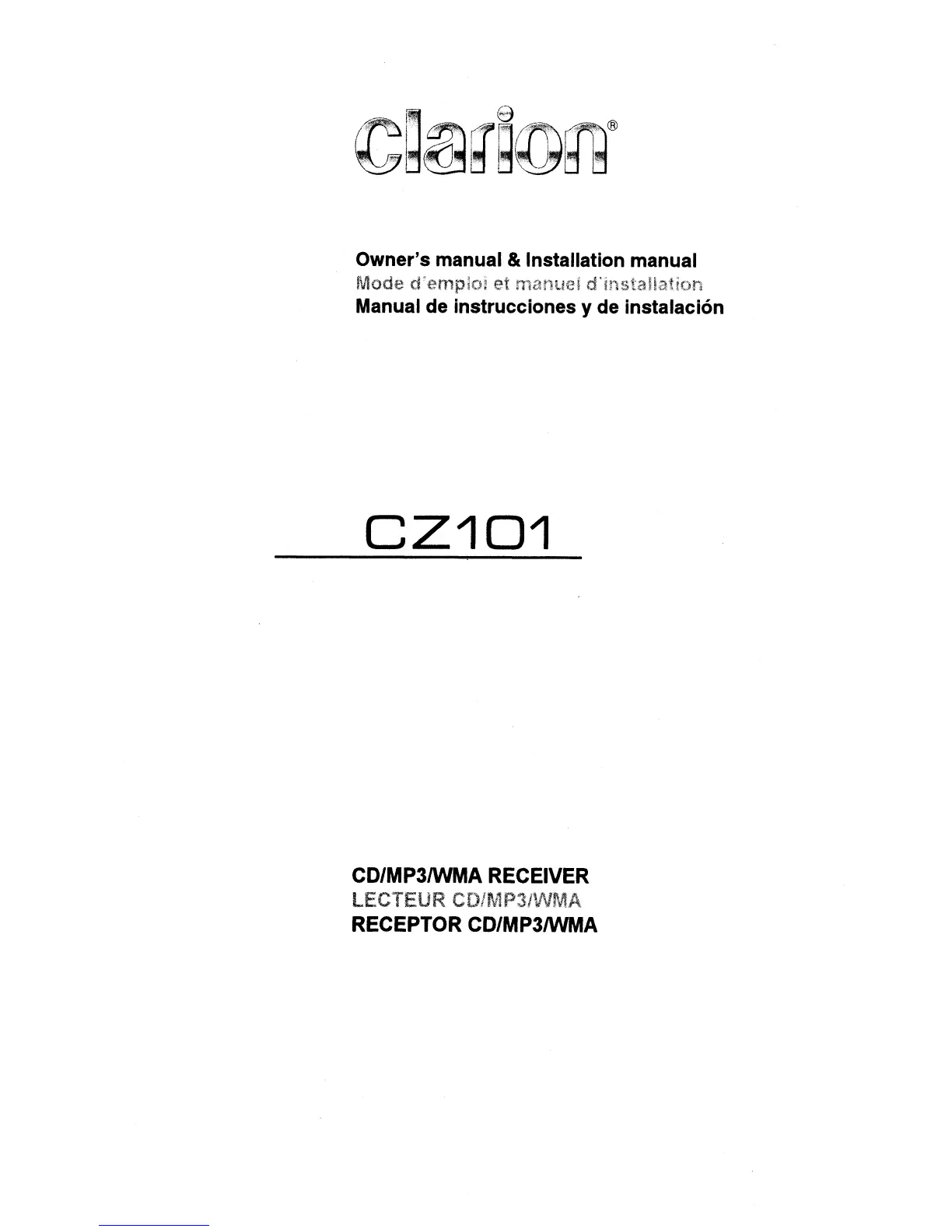

Owner's Manual & Installation Manual26 pages

Questions and Answers

C
carpentermelissaJul 26, 2025
Why is there no audio output from my Clarion Car Receiver?
- J
  jeffrey66Jul 26, 2025
  If you're experiencing no or low audio output from your Clarion Car Receiver, several factors could be the cause. First, ensure the audio output connections are properly wired. Also, verify that the volume isn't set too low and increase it as needed. Check your speaker condition and replace them if damaged. Make sure the channel balance isn't heavily biased to one side by adjusting it to the center. Lastly, confirm that speaker wiring isn't in contact with any metal parts of the car; if it is, insulate the connections.
M
Melissa WatsonJul 31, 2025
Why is the sound quality poor on my Clarion CZ101?
- D
  Deanna PruittJul 31, 2025
  If you're experiencing poor sound quality or distortion with your Clarion Car Receiver, there are a few potential causes. Ensure you are using a standard disc. If your speakers' power rating doesn't match the unit, consider replacing them. Check the wiring to make sure the connections are correct and that the speaker is not shorted.
J
Jonathan Kim DDSAug 5, 2025
What to do if Clarion Car Receiver won't turn on and the display is not accurate?
- K
  Kathleen LeeAug 5, 2025
  If your Clarion Car Receiver won't power on, no buttons respond, and the display is inaccurate, the microprocessor may have malfunctioned. Turn off the power and remove the DCP. Then, press the [RESET] button with a thin rod. Note that pressing the [RESET] button will turn off the ACC power and clear stored frequencies and titles.
R
Raymond MurphyAug 10, 2025
What to do if disc cannot be loaded in Clarion Car Receiver?
- D
  David HughesAug 10, 2025
  If a disc cannot be loaded into your Clarion Car Receiver, first check if another disc is already loaded and eject it. Also, check for any objects inside the unit and remove them.
P
Peter SalazarAug 14, 2025
How to fix Clarion CZ101 Tel-Mute malfunction?
- N
  Noah BautistaAug 15, 2025
  If you are experiencing a Tel-Mute malfunction with your Clarion Car Receiver, the MUTE wire may be grounded. Check the MUTE wiring and correct it.
B
Brian JonesAug 20, 2025
Why is the sound bad when my Clarion CZ101 is first turned on?
- D
  Douglas SharpAug 20, 2025
  If the sound is bad when you first turn on your Clarion Car Receiver, condensation may have formed on the internal lens. Let it dry for about 1 hour with the power on.

Summary

Features

Precautions and User Information

General Operation Precautions

Details safety and operational advice, including handling moisture, vibration, and FCC compliance.

Front Panel Care and Cleaning

Detachable Control Panel Handling

Removing and Attaching the Control Panel

Step-by-step guides for safely detaching and reattaching the control panel.

Unit Controls Overview

Operational Panel and Button Functions

Diagram and explanation of the unit's control layout and button operations.

Remote Control Operations

Remote Control Functions and Usage

Details button functions, usage tips, and battery insertion for the remote control.

Disc Handling and Care

Disc Handling, Storage, and Cleaning

Advises on physical handling, storage conditions, and cleaning procedures for discs.

Basic Unit Operations

Power, Volume, and Source Selection

Instructions for turning the unit on/off, adjusting volume, and selecting audio sources.

System and Audio Setup

System Configuration Options

Settings for clock, radio reception, AUX input, display, and other system parameters.

Audio Setup and EQ Adjustments

Guides on selecting sound effects, EQ modes, balance, fader, and subwoofer settings.

Radio Operations

Radio Tuning and Presets

Procedures for tuning stations, using presets, scan, and auto store functions.

CD;MP3;WMA Playback Basics

File Compatibility and Disc Loading

Details file requirements, DRM, sampling rates, and procedures for loading discs.

CD;MP3;WMA Playback Controls

Playback Navigation and Selection

Methods for pausing, selecting tracks, fast forwarding/reversing, and navigating folders.

Advanced CD;MP3;WMA and AUX Operations

Repeat, Random Play, and AUX Input

How to use repeat/random play modes and configure the AUX input sensitivity.

Troubleshooting Common Issues

General and Audio Troubleshooting

Solutions for power, button, display, remote control, and audio output problems.

Error Displays and Solutions

Disc Player Error Resolution

Details error messages related to disc loading, skipping, or noise and their solutions.

Technical Specifications

Tuner, CD, and Amplifier Specifications

Details specifications for tuners, CD player, MP3/WMA formats, and amplifier power output.

Installation and Wiring Guide

Installation Preparation and Cautions

Preliminary steps, safety precautions, package contents, and general installation warnings.

Installation Details and Procedures

Installation Cautions and Unit Mounting

Warnings on placement, screws, and steps for mounting the unit in the dashboard.

Installation Notes and Method A

Installation Notes and Method A Steps

Guidance on connections, accessory use, placement, and unit installation via Method A.

Installation Method B and Unit Removal

Method B Installation and Unit Removal

Steps for mounting frame installation, trim ring attachment, and unit disassembly.

Wiring and Connections Diagram

Speaker and Antenna Wiring

Diagrams for rear audio/subwoofer outputs, steering wheel control, and antenna connections.

Connecting Accessories

External Amplifier and Accessory Wiring

Instructions for connecting RCA outputs to amplifiers and wiring for other accessories.

Limited Warranty Information

Warranty Coverage and Service

Explains warranty coverage, restrictions, and how to obtain service.

Clarion CZ101 Specifications

General

Type	Car Receiver
Brand	Clarion
Model	CZ101
Display Type	LCD
Channels	4
Audio Formats Supported	MP3, WMA
Tuner Bands	AM, FM
Bluetooth	No
USB Port	Yes
AUX Input	Yes
CD Player	Yes
