Dimensions of the Main Unit:
188mm Width x 58mm Height x 190mm Depth
7-215(width) x 2-7/25(Height) x 7-12/25(Depth)
Weight of the Main Unit: 2.87Ib. (1.30kg)
Dimensions of the Remote Control unit:
43mm Width x
11
mm Height x 113mm Depth
1-213(Width)
x 215(Height) x 4-215(Depth)
Weight of the Remote Control Unit:
1.160z. (36g) (including battery)

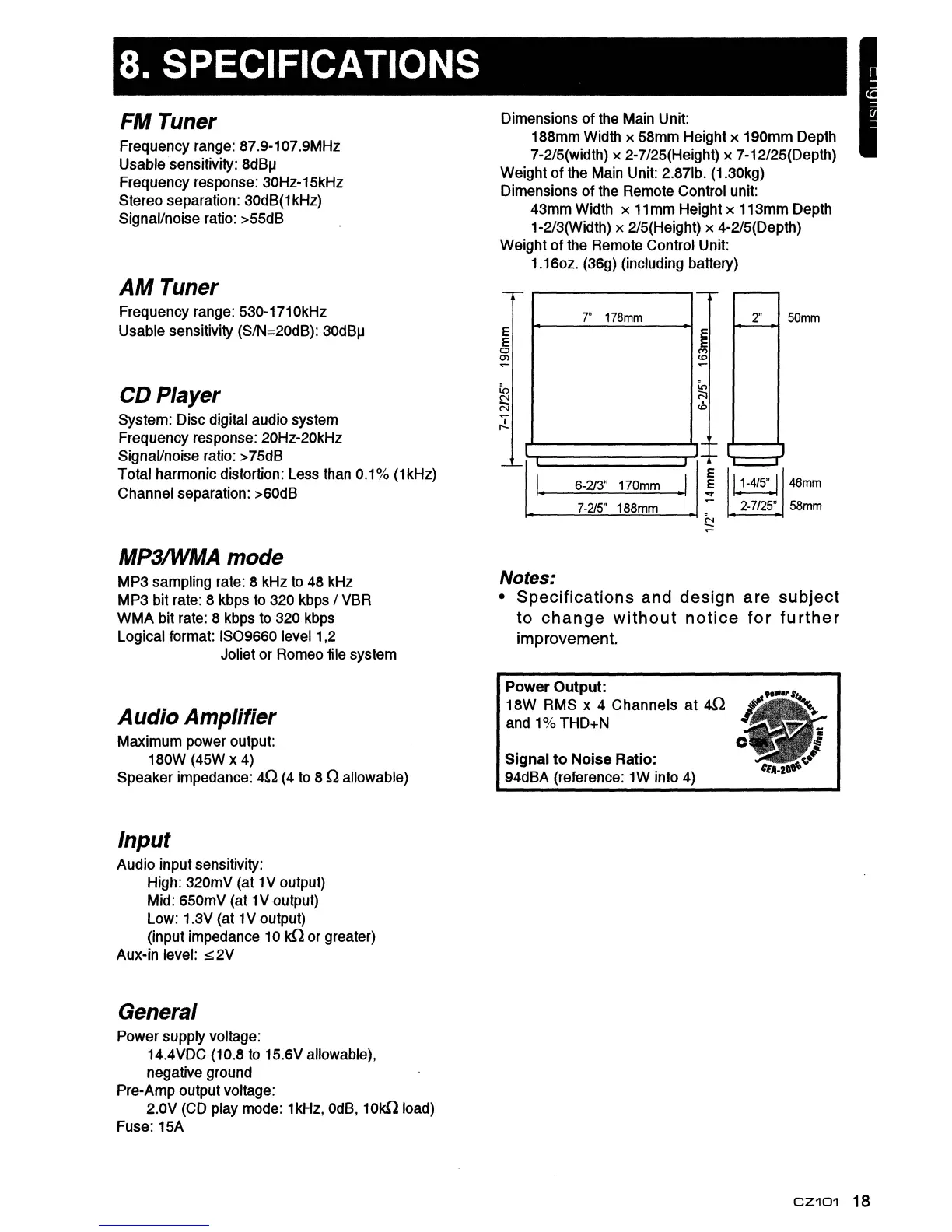

8. SPECIFICATIONS
FMTuner
Frequency range: 87.9-107.9MHz
Usable sensitivity:
8dBJl
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM
Tuner
Frequency range: 530-171
OkHz
Usable sensitivity (SIN=20dB):
30dBJl
CD Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >75dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
-,.--
,-"""
7"
178mm
E
E
E
E
0
(")
m
to
..-
..-
In
i:o
N
N
N
<b
;!:
--
E
I.
6-213"
170mm
.1
E
~
7-215"
188mm
,
2"
50mm
I I
L...---J
1.1-4/5".1
46mm
2-7/25"
58mm
•
MP3IWMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps
to
320 kbps / VBR
WMA
bit rate: 8 kbps to 320 kbps
Logical format: IS09660 level 1,2
Joliet or Romeo file system
Notes:
•
Specifications
and
design
are
subject
to
change
without
notice
for
fu
rther
improvement.
Audio Amplifier
Maximum power output:
180W (45W x
4)
Speaker impedance:
4Q
(4
to 8 Q allowable)
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 kQ or greater)
Aux-in level:
::;;
2V
General
Power supply voltage:
14.4VDC (10.8
to
15.6V allowable),
negative ground
Pre-Amp output voltage:
2.0V (CD play mode: 1kHz,
OdB,
10kQ load)
Fuse:15A
Power Output:
18W RMS x 4 Channels
at
4Q
and 1% THD+N
Signal
to
Noise Ratio:
94dBA (reference: 1W into 4)
