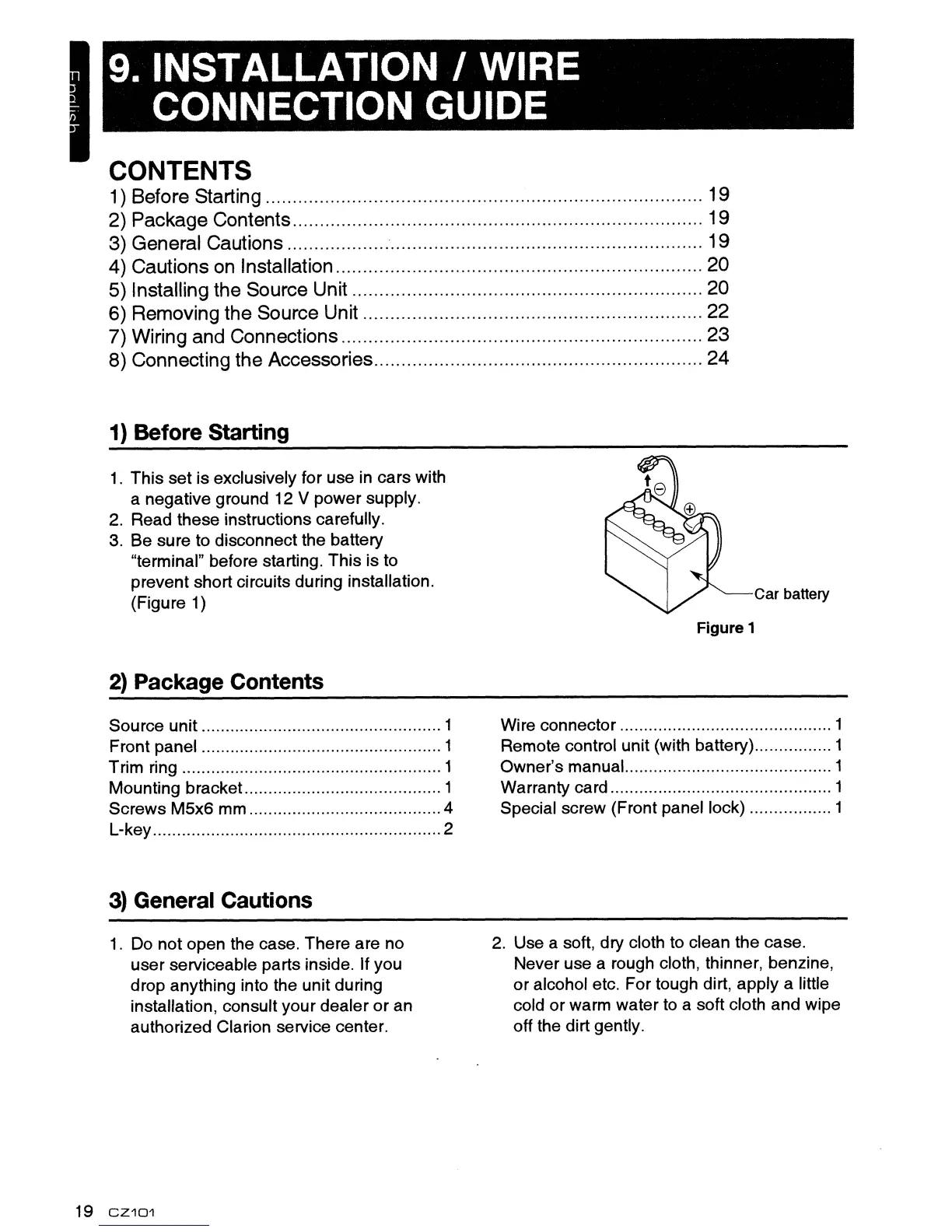

9. INSTALLATION I WIRE
CONNECTION GUIDE
CONTENTS
1) Before Starting 19
2) Package Contents 19
3) General Cautions 19
4) Cautions
on
Installation 20
5) Installing the Source Unit 20
6) Removing the Source Unit 22
7) Wiring and Connections 23
8) Connecting the Accessories 24
1) Before Starting
1.
This set is exclusively for use
in
cars with
a negative ground 12 V power supply.
2.
Read these instructions carefully.
3.
Be sure to disconnect the battery
"terminal" before starting. This is to
prevent short circuits during installation.
(Figure
1)
Car
battery
2)
Package Contents
Source unit 1
Front panel 1
Trim ring 1
Mounting bracket.. 1
Screws M5x6 mm 4
L-key 2
3)
General Cautions
1.
Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer
or
an
authorized Clarion service center.
19
CZ101
Figure 1
Wire connector 1
Remote control unit
(With
battery) 1
Owner's manual. 1
Warranty card 1
Special screw (Front panel lock) 1
2.
Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner, benzine,
or alcohol etc. For tough dirt, apply a little
cold or warm water
to
a soft cloth and wipe
off the dirt gently.
To Next Page
