4)

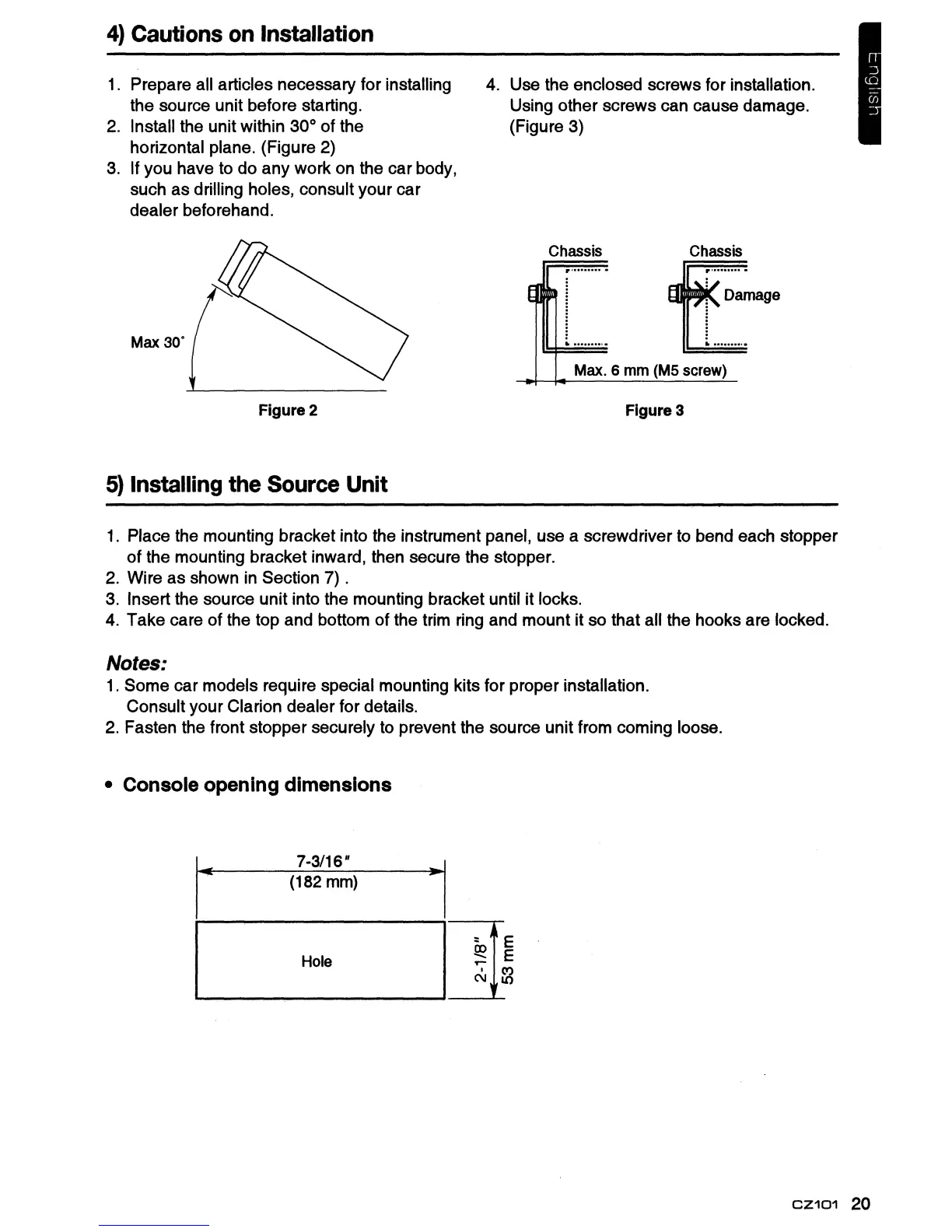

Cautions on Installation
1.
Prepare all articles necessary for installing
the source unit before starting.
2.
Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car body,
such as drilling holes, consult your car
dealer beforehand.
4. Use the enclosed screws for installation.
Using other screws can cause damage.
(Figure 3)
Max.
6
mm
(M5
screw)
Max
30·
Figure 2
5)
Installing the Source Unit
Chassis
Chassis
ff·~~·
•..........
Figure 3
1.
Place the mounting bracket into the instrument panel, use a screwdriver to bend each stopper
of
the mounting bracket inward, then secure the stopper.
2.
Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4.
Take care
of
the top and bottom of the trim ring and mount it so that all the hooks are locked.
Notes:
1.
Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
1
4
7-3/16 R
·1
(182
mm)
I
Hole
I]~
CZ101
20
To Next Page
