Clarion CZ101 User Manual

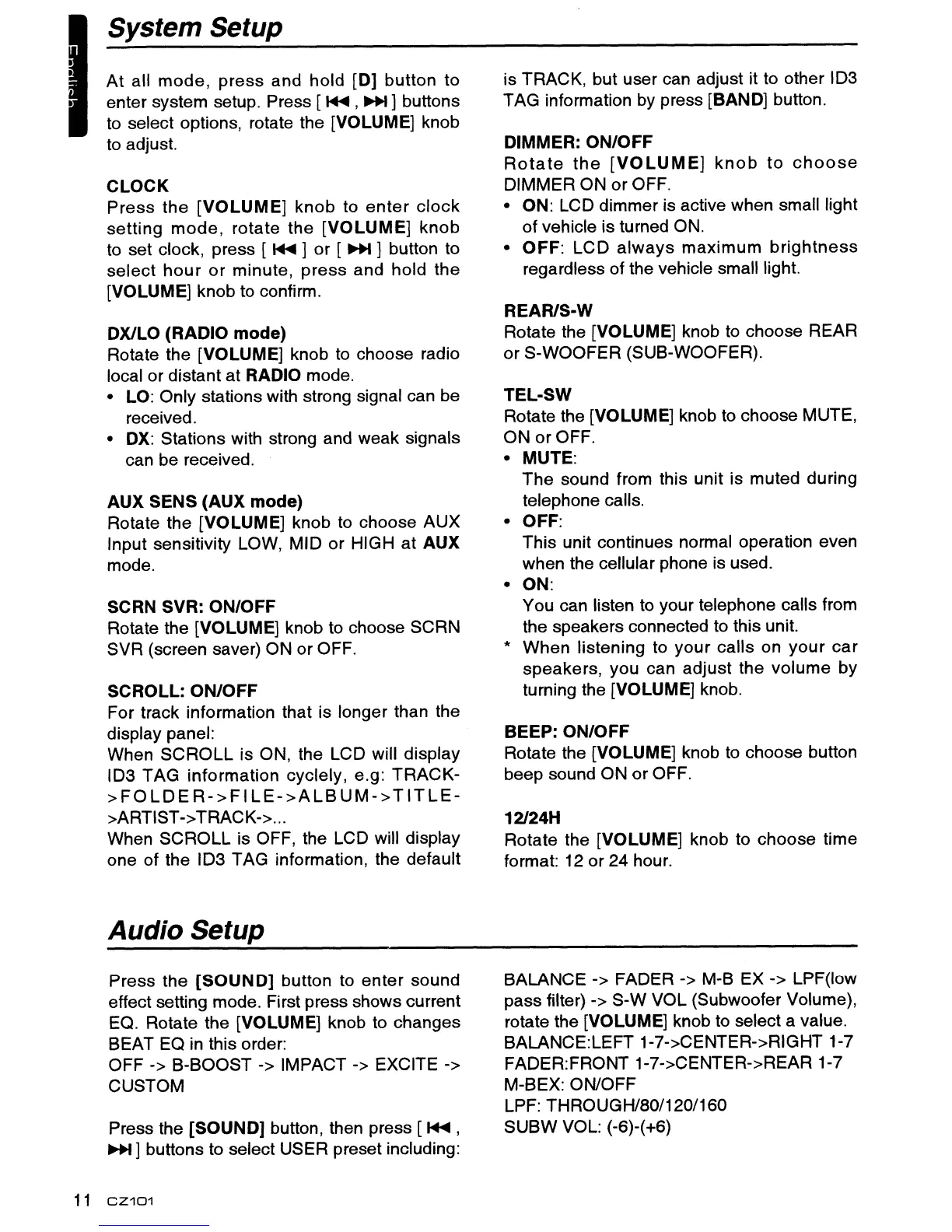

System Setup
At all mode, press and hold [D] button to
enter system setup. Press [ ~ , ~] buttons
to select options, rotate the
[VOLUME] knob
to adjust.
CLOCK
Press the [VOLUME] knob to enter clock
setting mode, rotate the [VOLUME] knob
to set clock, press [ ~ ] or [ ~ ] button to
select hour or minute, press and hold the
[VOLUME] knob to confirm.
DXlLO (RADIO mode)
Rotate the [VOLUME] knob to choose radio
local
or distant at RADIO mode.
• LO: Only stations with strong signal can be
received.
• DX: Stations with strong and weak signals
can
be received.
AUX SENS (AUX mode)
Rotate the [VOLUME] knob to choose AUX
Input sensitivity LOW, MID or HIGH at AUX
mode.
SCRN SVR: ON/OFF
Rotate the [VOLUME] knob to choose SCRN
SVR (screen saver) ON
or OFF.
SCROLL: ON/OFF
For track information that is longer than the
display panel:
When
SCROLL is ON, the LCD will display
103 TAG information cyclely, e.g: TRACK-
>FO LDE R->F I LE->ALB UM-> TITLE-
>ARTIST-> TRACK-> ...
When
SCROLL is OFF, the LCD will display
one of the
103 TAG information, the default
Audio Setup
Press the [SOUND] button to enter sound
effect setting mode. First press shows current
Ea. Rotate the [VOLUME] knob to changes
BEAT EO in this order:
OFF ->
B-BOOST -> IMPACT -> EXCITE ->
CUSTOM
Press the
[SOUND] button, then press [ ~ ,
~] buttons to select USER preset including:
is TRACK, but user can adjust it to other 103
TAG information by press [BAND] button.
DIMMER: ON/OFF
Rotate the [VOLUME] knob to choose
DIMMER ON or OFF.
• ON: LCD dimmer is active when small light
of vehicle is turned ON.
• OFF: LCD always maximum brightness
regardless of the vehicle small light.
REARlS-W
Rotate the [VOLUME] knob to choose REAR
or S-WOOFER (SUB-WOOFER).
TEL-SW
Rotate the [VOLUME] knob to choose MUTE,
ON or OFF.
• MUTE:
The sound from this unit is muted during
telephone calls.
• OFF:
This unit continues normal operation even
when the cellular phone is used.
• ON:
You can listen to your telephone calls from
the speakers connected to this unit.
*
When listening to your calls on your car
speakers, you can adjust the volume by
turning the [VOLUME] knob.
BEEP: ON/OFF
Rotate the [VOLUME] knob to choose button
beep sound
ON or OFF.
12124H
Rotate the [VOLUME] knob to choose time
format: 12 or 24 hour.
BALANCE -> FADER -> M-B EX -> LPF(low
pass filter) ->
SoW VOL (Subwoofer Volume),
rotate the
[VOLUME] knob to select a value.
BALANCE:LEFT 1-7->CENTER->RIGHT 1-7
FADER:FRONT 1-7->CENTER->REAR 1-7
M-BEX: ON/OFF
LPF:
THROUGHl80/120/160
SUBW VOL: (-6)-(+6)
11 CZ101
