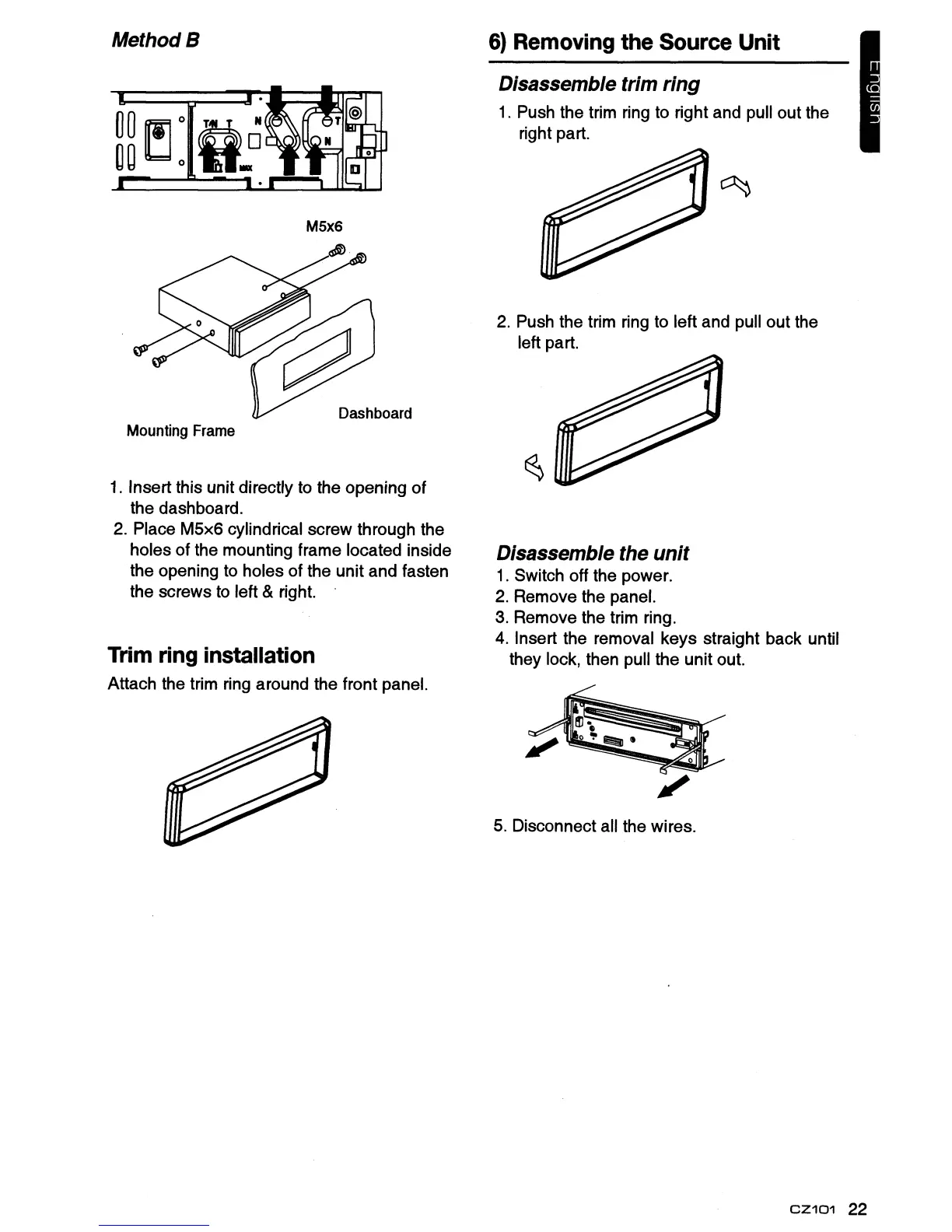

Disassemble
trim
ring
1.
Push the trim ring to right and pull out the
right part.
2.
Push the trim ring to left and pull out the
left part.
Disassemble
the
unit
1.
Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4.
Insert the removal keys straight back until
they lock, then pull the unit out.
5.
Disconnect all the wires.
6)
Removing
the Source Unit
Dashboard
MethodS
00
[!]O
~~
00
0
ft.
Mounting
Frame
M5x6
1.
Insert this unit directly to the opening
of
the dashboard.
2. Place M5x6 cylindrical screw through the
holes
of
the mounting frame located inside
the opening to holes of the unit and fasten
the screws
to
left & right.
Trim
ring
installation
Attach the trim ring around the front panel.
CZ101
22
