}10.

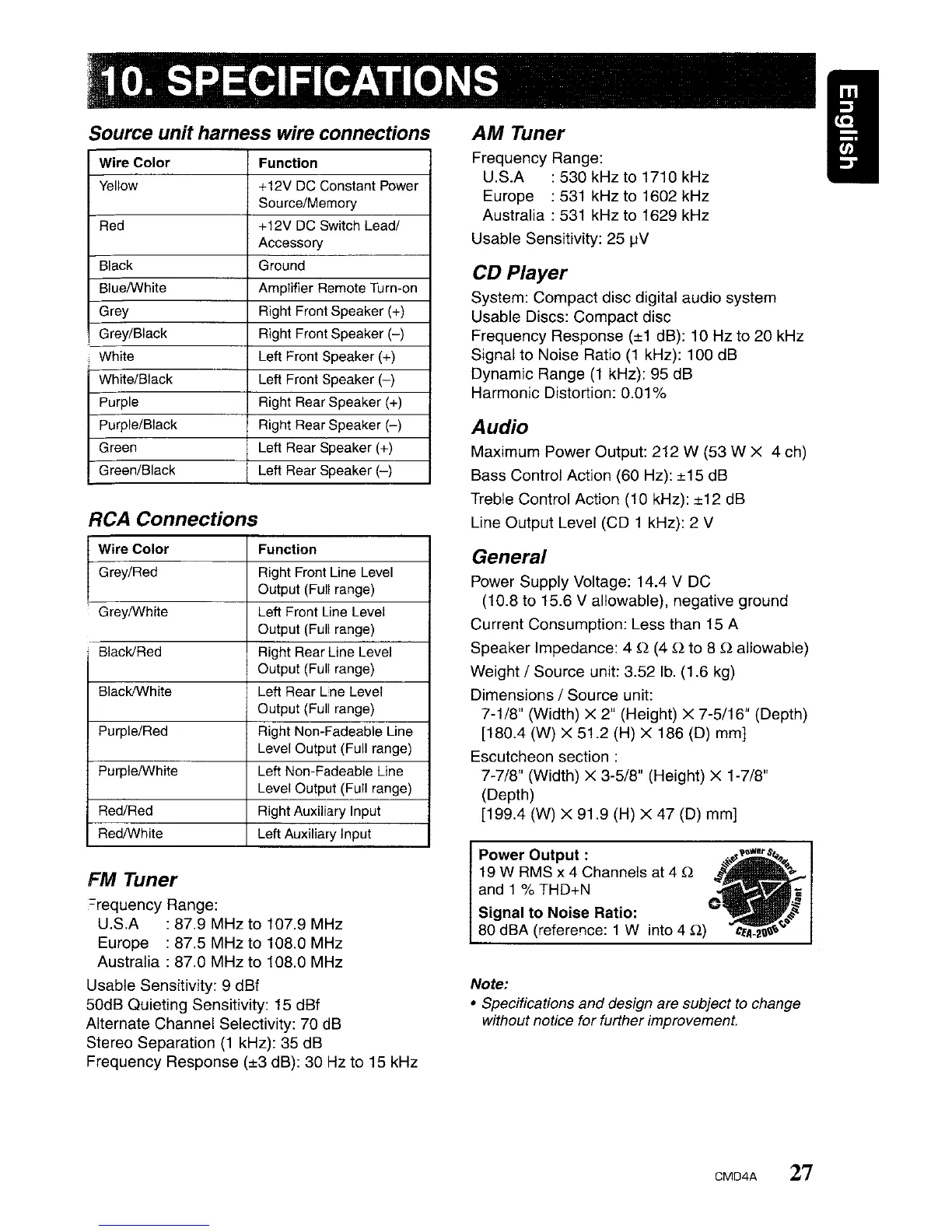

SPECIFICATIONS
Source
unit
harness wire connections
Wire
Color
Function
Yellow +12V DC Constant Power
Source/Memory
Red
+12V
DC
Switch Lead/
Accessory
Black
Ground
BluelWhite Amplifier Remote Turn-on
Grey Right Front Speaker
(+)
! Grey/Black
Right Front Speaker
(-)
White
Left Front Speaker
(+)
White/Black
Left Front Speaker
(-)
Purple
Right Rear Speaker
(+)
Purple/Black Right Rear Speaker
(-)
Green
Left Rear Speaker
(+)
Green/Black
Left Rear Speaker
(-)
RCA
Connections
Wire
Color
Function
Grey/Red
Right Front Line Level
Output (Full range)
GreylWhite Left Front Line Level
Output (Full range)
Black/Red Right Rear Line Level
Output
(FUll
range)
BlacklWhite
Left Rear Line Level
Output (Full range)
Purple/Red
Right Non-Fadeable Line
Level Output
(FUll
range)
PurplelWhite Left Non-Fadeable Line
Level Output
(FUll
range)
Red/Red
Right Auxiliary Input
RedlWhite
Left Auxiliary Input
FM Tuner
=requency Range:
U.S.A : 87.9 MHz to 107.9 MHz
Europe : 87.5 MHz to 108.0 MHz
Australia:
87.0 MHz to 108.0 MHz
Usable Sensitivity: 9 dSf
SOdS
Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation
(1
kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM
Tuner
Frequency Range:
U.S.A : 530 kHz to 1710 kHz
Europe : 531 kHz to 1602 kHz
Australia : 531 kHz to 1629 kHz
Usable Sensitivity: 25
~V
CD
Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response
(±1
dB): 10 Hz to 20 kHz
Signal to Noise Ratio
(1
kHz): 100 dB
Dynamic Range
(1
kHz): 95
dB
Harmonic Distortion: 0.01 %
Audio
Maximum Power Output: 212 W (53 W X 4 ch)
Bass Control Action (60 Hz): ±15
dB
Treble Control Action (10 kHz): ±12
dB
Line Output Level (CD 1 kHz): 2 V
General
Power Supply Voltage: 14.4 V DC
(10.8 to 15.6 V allowable), negative ground
Current Consumption: Less than 15 A
Speaker Impedance: 4
n (4 n to 8 Q allowable)
Weight / Source unit: 3.52
lb.
(1.6 kg)
Dimensions / Source unit:
7-1/8" (Width)
X 2" (Height) X 7-5/16" (Depth)
[180.4
(W) X 51.2 (H) X 186
(0)
mm]
Escutcheon section :
7-7/8" (Width)
X 3-5/8" (Height) X 1-7/8"
(Depth)
[199.4
(W) X 91.9 (H) X
47
(0)
mm]
Power
Output:
19 W RMS x 4 Channels at 4 Q
and 1 % THD+N
Signal
to
Noise Ratio:
80
dBA
(reference: 1 W into
4.0)
Note:
• Specifications
and
design are SUbject to change
without notice for further improvement.
I
CM04A
27
