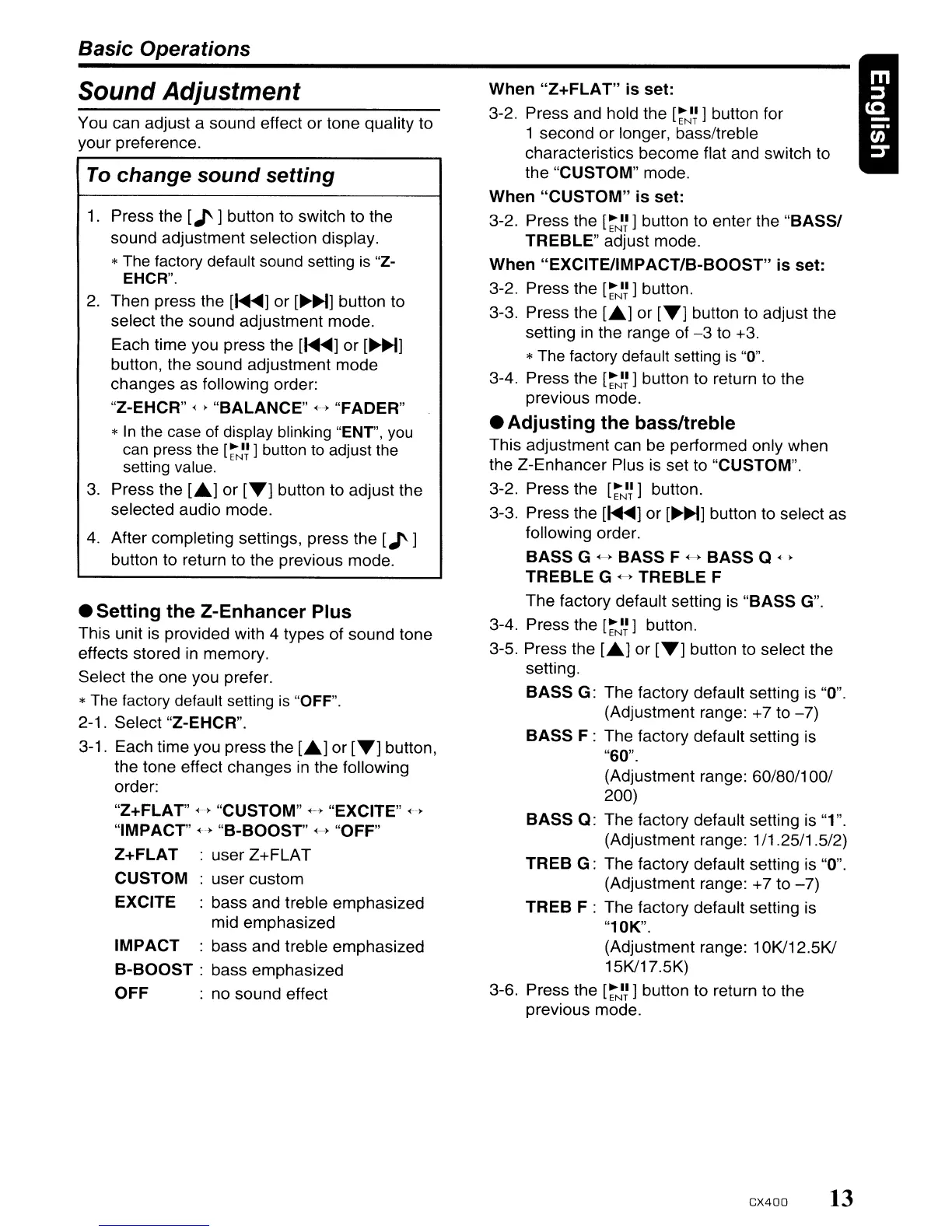

Basic
Operations
Sound
Adjustment
You can adjust a sound effect
or
tone quality to
your preference.
To
change
sound
setting
1.
Press the
[J')
button to switch to the
sound adjustment selection display.
* The factory default sound setting
is
"Z-
EHCR".
2.
Then press the
[1<IllII
....
l or
[~)
button to
select the sound adjustment mode.
Each time you press the
[l<IllII-<IIIIl
or
[~l
button, the sound adjustment mode
changes as following order:
"Z-EHCR"
"BALANCE"
+->
"FADER"
*
In
the case of display blinking "ENT", you
can press the
[~~~]
button
to
adjust the
setting value.
3. Press the
[.)
or
[T)
button
to
adjust the
selected audio mode.
4.
After completing settings, press the
[J'
)
button to return to the previous mode.
Setting
the
Z-Enhancer
Plus
This unit is provided with 4 types of sound tone
effects stored in memory.
Select the one you prefer.
* The factory default setting
is
"OFF".
2-1. Select "Z-EHCR".
3-1. Each time you press the
[.l
or
[T)
button,
the tone effect changes
in
the following
order:
"Z+FLAT"
H "CUSTOM" +-> "EXCITE" <--.
"IMPACT"
<-*
"B-BOOST"
<-+ "OFF"
Z+FLAT
: user
Z+FLAT
CUSTOM
: user custom
EXCITE : bass and treble emphasized
mid emphasized
IMPACT
: bass and treble emphasized
B-BOOST
: bass emphasized
OFF : no sound effect
When
"Z+FLAT"
is
set:
3-2. Press and hold the
[~NI~
1button for
1 second
or
longer, bassltreble
characteristics become flat and switch to
the "CUSTOM" mode.
When
"CUSTOM"
is
set:
3-2. Press the
[~~~
1button to enter the
"BASSI
TREBLE"
adjust mode.
When
"EXCITE/IMPACT/B-BOOST"
is
set:
3-2. Press the
[~~~
1button.
3-3. Press the
[.l
or
[Tl
button to adjust the
setting
in
the range of
-3
to +3.
*The factory default setting
is
"0".
3-4. Press the
[~NI~
1button to return to the
previous mode.
Adjusting
the
bass/treble
This adjustment can be performed only when
the Z-Enhancer Plus is set to "CUSTOM".
3-2. Press the
[~NI~
1 button.
3-3. Press the
[I<IllII<IIlIIl
or
[~l
button to select as
following order.
BASS
G +->
BASS
F +->
BASS
Q <
TREBLE
G +->
TREBLE
F
The factory default setting is
"BASS
G".
3-4. Press the
[~~~]
button.
3-5. Press the
[.)
or
[Tl
button to select the
setting.
BASS
G: The factory default setting is "0".
(Adjustment range:
+7
to
-7)
BASS
F:
The factory default setting is
"60".
(Adjustment range: 60/80/1001
200)
BASS
Q: The factory default setting is "1".
(Adjustment range:
1/1.25/1.5/2)
TREB
G:
The factory default setting is "0".
(Adjustment range:
+7
to
-7)
TREB
F : The factory default setting is
"10K".
(Adjustment range: 10K/12.5K/
15K/17.5K)
3-6. Press the
[~~~
] button to return to the
previous mode.
CX400
13
