Clarion CZ300 User Manual

25
English

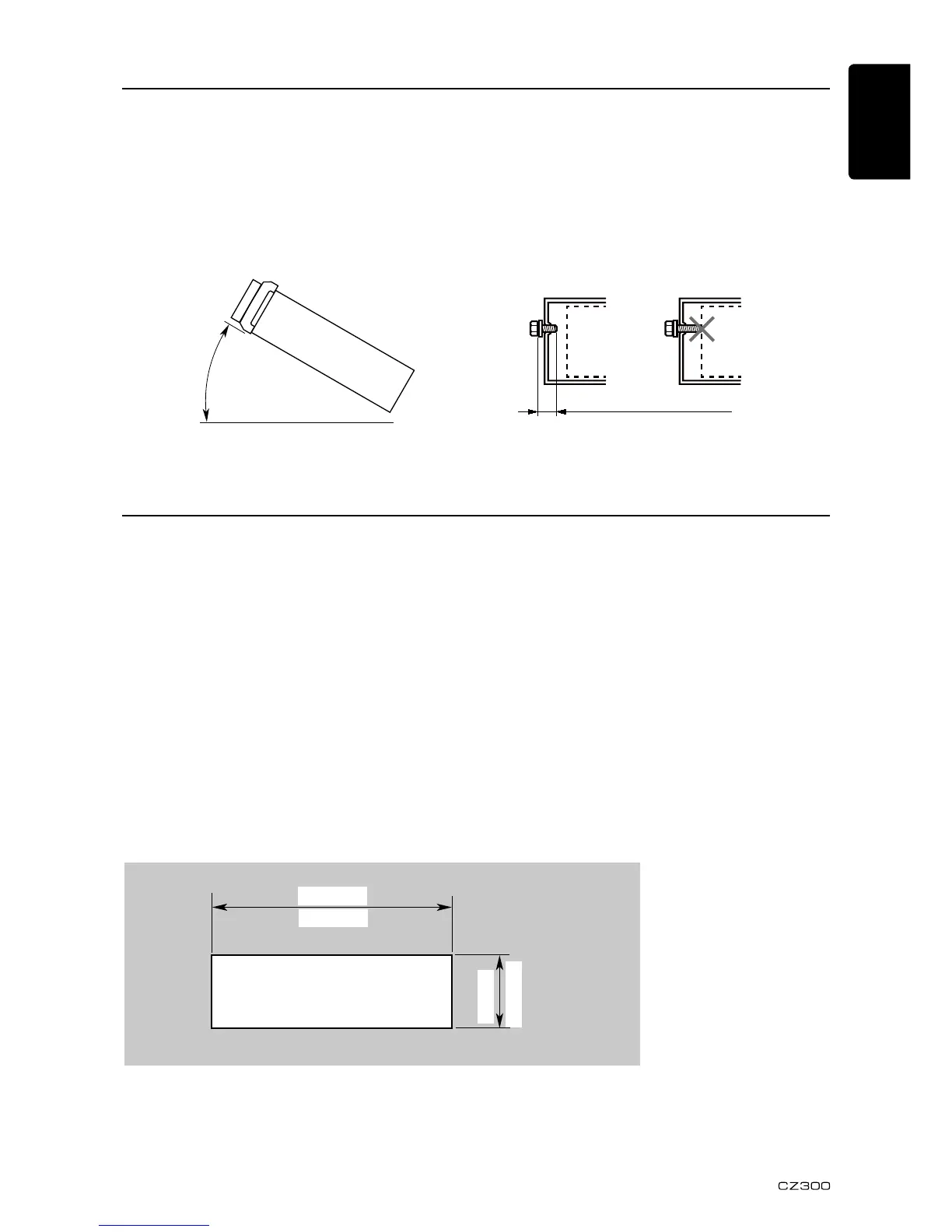

4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of horizontal.
(Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
4. Use the enclosed screws for
installation. Using other screws can
cause damage. (Figure 3)
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the universal mounting bracket inward, then secure the stopper.
2. Insert the source unit into the mounting bracket until it locks.
3. Carefully adjust all mounting tabs on the mounting bracket and conrm that the
mounting tabs are securely attached.
Notes:
1. Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
Max 30°
Figure 2
Figure 3
Chassis Chassis
Damage
Max. 6 mm (M5 screw)
7 3/16
(182 mm)
2 1/8
(53 mm)
Hole
