Clarion DB189RGMP Service Manual

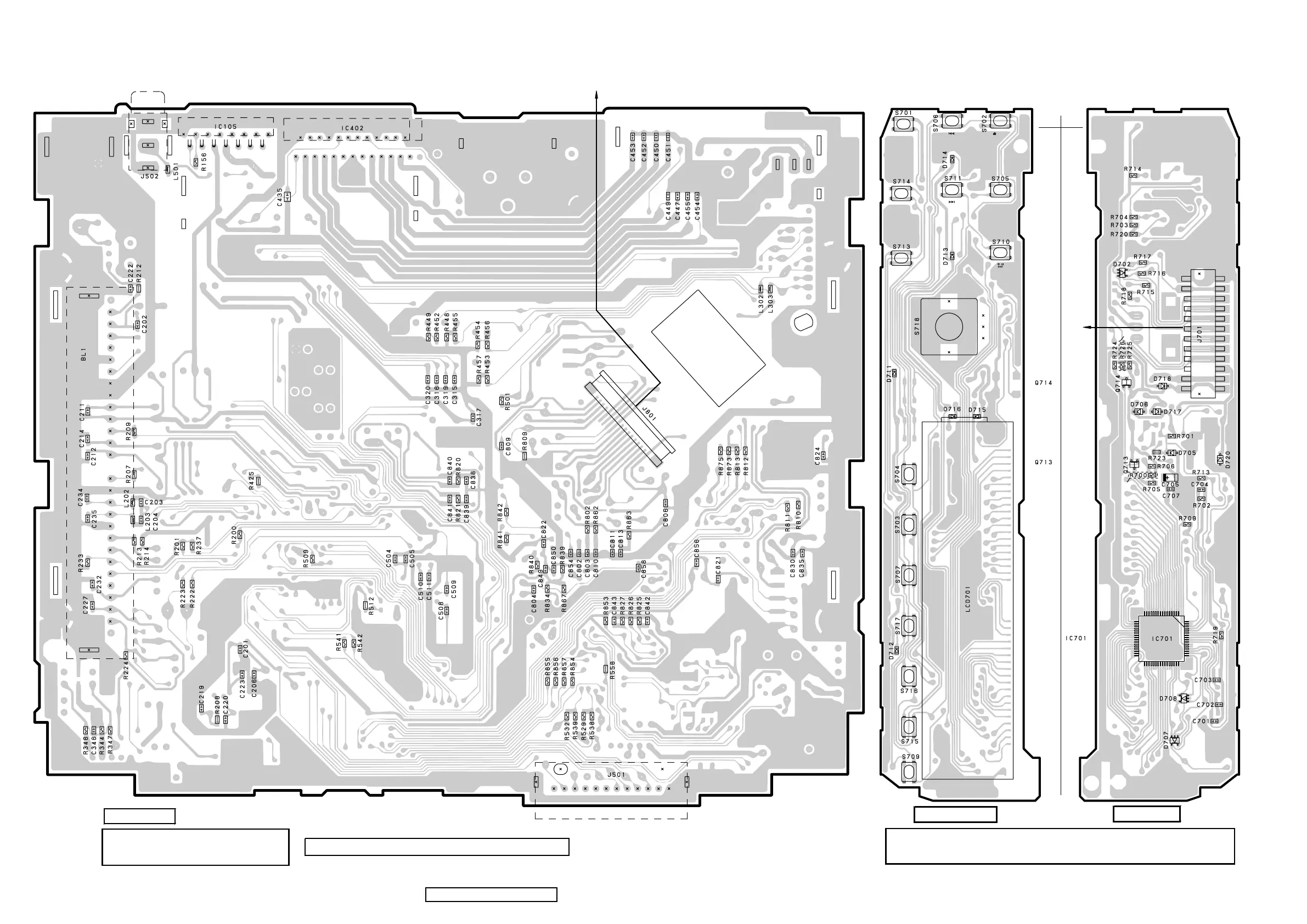

PRINTED WIRING BOARD 3/4
Main PWB(B1) section 2/2
-14-
12 1
1
2
24
25
1
2
14
15
1
5
10
15
20
26
DB188/189RMP/DB189RGMP
IN
GND
The parts of a dashed line express the parts on a component side.
SOLDER SIDE
Caution:
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
17
LD-GND
L
D
MD
V
R
T
-
F-
F+
T+
PD_G
ND
E
A
D
V
C
V
CC
C
B
F
1
To CD MECHANISM
Note) CD MECHANISM 929-4002-00 is exchanged
correspondence, it is not being possible to repair.
PRINTED WIRING BOARD 4/4
Swiche PWB(B2) section
COMPONENT SIDE
Caution:
COMPONENT SIDE: Parts on the component side seen from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen from the solder side are i ndicated.
Q
IC
[ROTARY]
SOLDER SIDE
To J501 of Main PWB(B1) (page 13)
1
12
64
49
48
33
32
17
16
1
[SRC]
[]
[ ] (EJECT]
[BND]
[]
[DISP]
[TA]
[]
[1]
[2]
[3]
[4]
[5]
[6]
[SOUND]
(PE-3050E-B)
(PE-3050E-B)
