Clarion DXZ558RMP User Manual

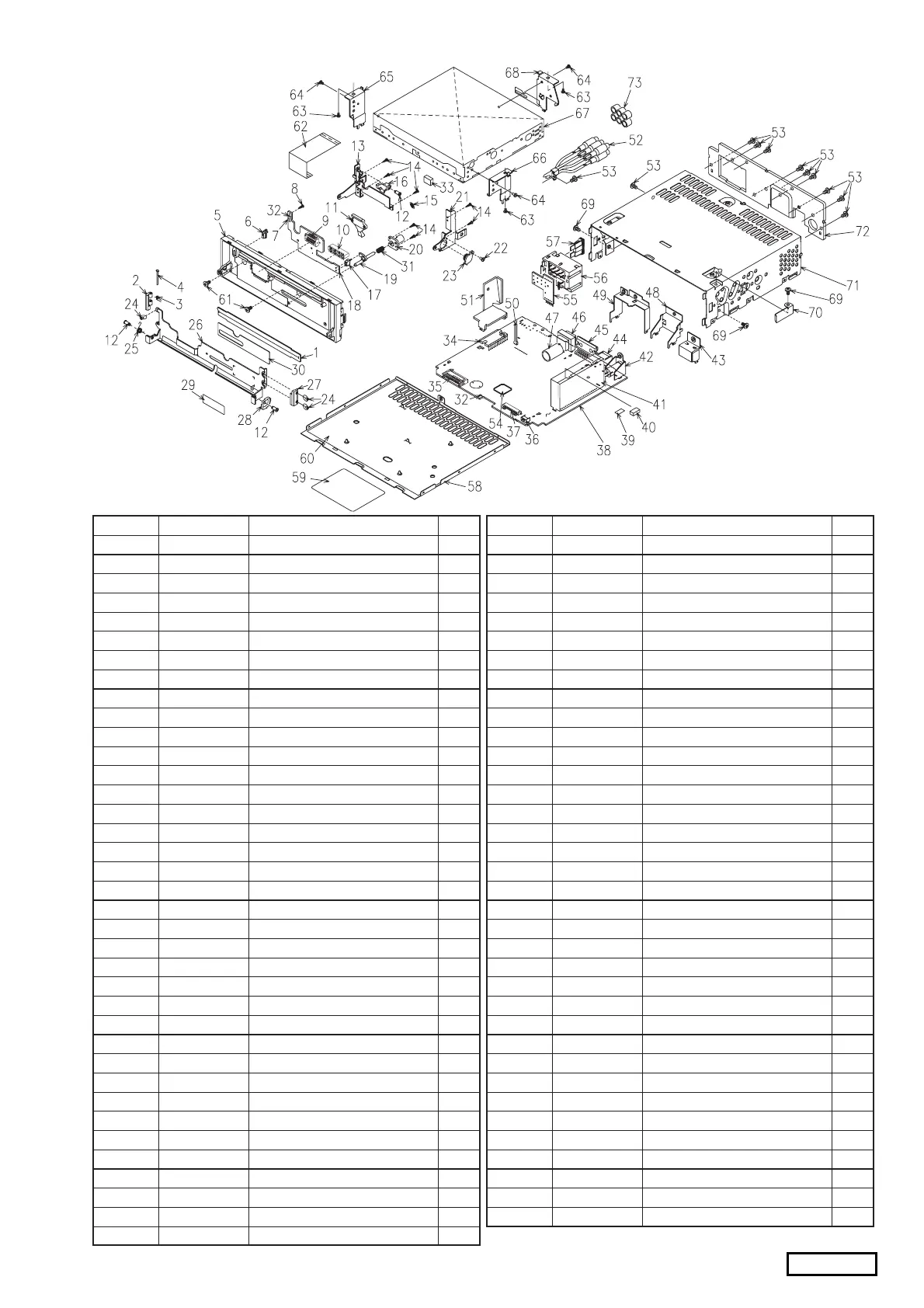

Main Section
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1
346-0173-00 LEATHER SHEET 1
38
------------ MAIN PWB 1
2
335-7373-00 HOOK DCP 1
39
347-6341-00 E-SHEET 1
3
750-3454-00 SPRING 1
40
345-5312-00 CUSHION 1
4
341-1764-00 SHAFT 1
41
880-2090Z TUNER 1
5
370-6142-00 INNER-ES 1
42
092-4000-51 ANT-RECEPT 1
6
382-7255-00 BUTTON 1
43
331-3567-00 CONNECTOR HOLDER 1
7
013-6312-50 SWITCH 1
44
074-1194-00 OUTLET SOCKET(13 P) 1
8
716-1764-01 PAD SCREW(M1.7x5) 1
45
051-2057-00 IC 1
9
074-1220-00 OUTLET SOCKET(16 P) 1
46
009-9006-70 CHOKE 1
10
074-1279-68 OUTLET SOCKET(18 P) 1
47
042-1447-00 ALUMI-ELE-C 1
11
335-7368-00 ILLUMI PLATE 1
48
331-3560-02 IC HOLDER 1
12
716-3546-01
DECORATIVE SCREW(M4.1x7) 3
49
331-3562-01 CONNECTOR HOLDER 1
13
331-3925-00 ARM-L 1
50
321-0969-00 CLAMP 1
14
716-1764-00 PAD SCREW(M1.7x5) 7
51
313-1867-00 HEAT SINK 1
15
750-3341-00 SPRING 1
52
855-5478-50 RCA-PIN-CORD 1
16
335-7369-00 HOOK LOCK 1
53
714-3006-81 MACHINE SCREW(M3x6) 11
17
013-7201-50 SWITCH 1
54
052-3947-00 MICOM 1
18
------------ SUB PWB 1
55
------------ ISO PWB 1
19
335-7370-00 DETECTOR HOOK 1
56
074-1285-00 OUTLET SOCKET(ISO) 1
20
335-7371-00 HOOK SLEEVE 1
57
060-0057-57 AUTO-FUSE(15 A) 1
21
331-3926-00 ARM-R 1
58
311-1859-02 LOWER CASE 1
22
780-2004-01 SCREW(M2x4) 1
59
286-6543-00 SETPLATE 1
23
613-0730-00 GEAR DAMPER 1
60
347-6880-01 INSULATOR 1
24
738-1722-17
PRECISION SCREW(M1.7x2.2)
3
61
780-2607-02
SCREW(M2.6x7)
2
25
750-6793-00 SPRING 1
62
816-2623-50 FLAT WIRE 1
26
331-3924-00 DCP-HOLDER 1
63
714-3004-81 MACHINE SCREW(M3x4) 3
27
335-7505-00 HOOK 1
64
714-2603-80 MACHINE SCREW(M2.6x3) 3
28
613-0757-00 FAN GEAR 1
65
331-3570-00 MECH-SUB-BRKT 1
29
291-0092-00 STICKER 1
66
331-3569-00 MECH-SUB-BRKT 1
30
290-8458-00 LABEL 1
67
929-0301-83 CD-MECH-MODULE 1
31
750-6783-00 SPRING 1
68
331-3427-00 MECH BRKT 1
32
001-7062-90 DIODE 2
69
731-3006-80 TAPTIGHT(M3x6) 3
33
345-5547-00 RUBBER 1
70
331-2744-00 STOPPER 1
34
051-3297-10 IC 1
71
303-0485-01 UPPER CASE 1
35
076-0648-18 PLUG(18 P) 1
72
313-1866-00 HEAT SINK 1
36
013-6103-00 TACT SWITCH 1
73
345-3799-20 RUBBER PART 6
37
074-1237-70 OUTLET SOCKET(20 P) 1
DXZ558RMP
-11-
