NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 DCP-ASSY
DCP-523-700
1 1-32
382-7234-01 BUTTON
1
1-1 373-1045-01 DIAL-CVR 1 1-33
716-0872-20 PAD SCREW(M1.7X4)
1
1-2 335-7392-00 FACE PANEL(L) 1 1-34
347-7537-00 DOUBLE FACE
1
1-3 347-7507-00 DOUBLE FACE 1 1-35
347-7509-00 SHADE
2
1-4 347-7506-00 SURGE FILM 2 1-36
347-7508-00 SHADE
1
1-5 335-7401-01 LEVER CAP 1 1-37
347-7531-00 FILM
2
1-6 716-0872-01 PAD SCREW(M1.7x6) 10 1-38
347-7510-00 DOUBLE FACE
6
1-7 335-7457-00 LEVER INNER 1 1-39
347-7576-00 SPACER
2
1-8 335-7403-00 BASE LEVER 1 1-40
347-7575-00 SPACER
2
1-9 750-6794-00 SPRING(LEVER) 1 1-41
347-7159-00 CUSHION
2
1-10 331-3945-00 LEVER HOLDER 1 1-42
347-7577-00 SPACER
2
1-11 331-3944-00 ARM COVER 1 1-43
347-6988-00 DOUBLE FACE
1
1-12 335-7404-00 LEVER ARM 1 1-44
347-7540-00 REFLECTOR
2
1-13 382-7232-00 BUTTON(RELEASE) 1 1-45
347-7597-00 FILM
1
1-14 750-6720-00 SPRING (REL) 1 1-46
347-7539-00 SPACER
1
1-15 716-0872-12 PAD SCREW(M1.7x8) 4 1-47
716-0872-11 PAD SCREW(M1.7X6)
1
1-16 335-7372-00 REAR-COVER 1 1-48
331-3921-00 LCD COVER
1
1-17 335-7349-00 ILLUMI PLATE(R) 1 1-49
379-1320-41 INDICATOR(LCD)
1
1-18 370-6138-00 ESCUTCHEON 1 1-50
347-7371-00 FILM(BLACK)
1
1-19 335-7347-00 ILLUMI PLATE(L) 1 1-51
347-7372-00 FILM(LCD)
1
1-20 335-7348-00 ILLUMI PLATE(M) 1 1-52
345-5500-00 RUBBER CONNECTOR
1
1-21 382-7226-01 BUTTON 1 1-53
335-7359-00 ILLUMI PLATE
1
1-22 382-7229-01 BUTTON 1 1-54
347-7373-00 REFLECTOR
1
1-23 335-7391-00 FACE PANEL(R) 1 1-55
335-7358-00 LCD HOLDER
1
1-24 380-5608-00 KNOB 1 1-56
076-0708-02 PLUG
2
1-25 380-5609-00 KNOB CVR 1 1-57
001-7076-90 DIODE
5
1-26 345-5489-00 RUBBER RING 1 1-58
013-6312-50 SWITCH
18
1-27 382-7230-01 BUTTON 1 1-59
----------- SWITCH PWB
1
1-28
382-7237-01 BUTTON
1 1-60
060-4017-90 IR-RECEIVER
1
1-29
382-7231-01 BUTTON
1 1-61
016-9900-85 ENCODER-SW
1
1-30
382-7227-01 BUTTON
1 1-62
076-0616-00 PLUG
1
1-31
382-7233-01 BUTTON
1

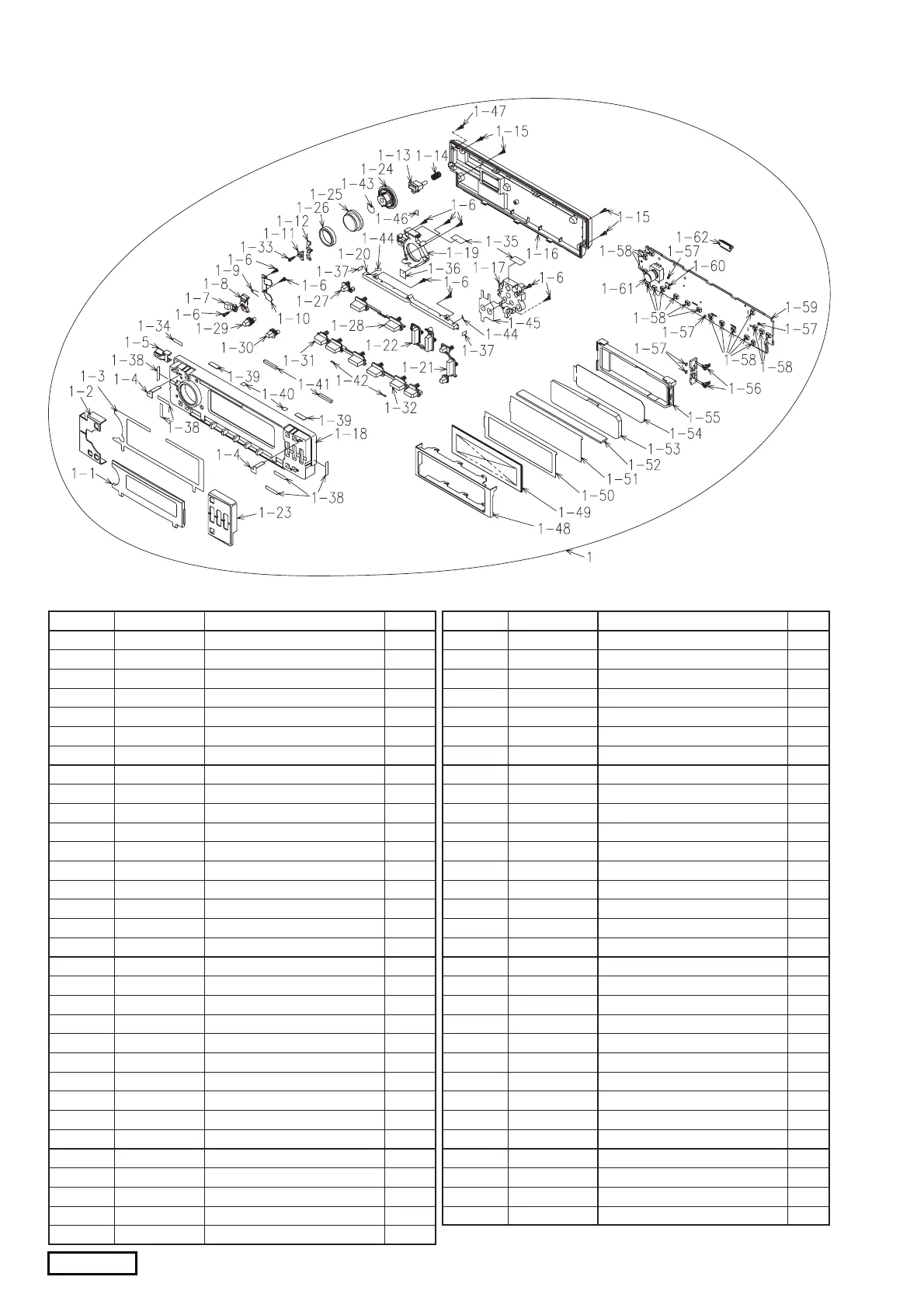

EXPLODED VIEW / PARTS LIST
DCP section
DXZ558RMP
-10-
