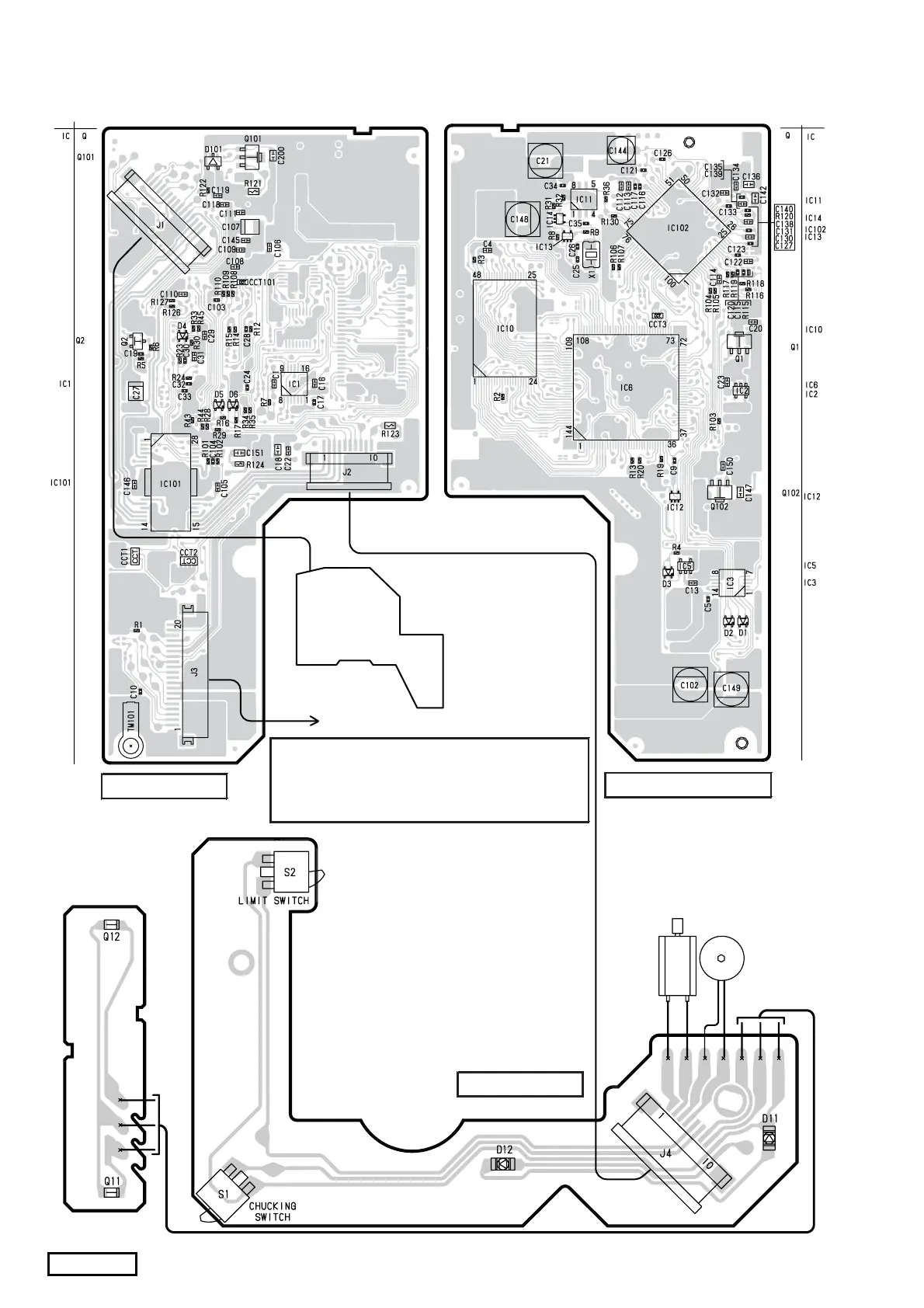

PRINTED WIRING BOARD 2/4
CD PWB(B5) / LED PWB(B6) section
-18-
DXZ558RMP
LED PWB-B(B6)
LED PWB-A(B6)
SPD-MOTOR-ASSY
SMA-182-100
POW-MOTOR-ASSY
SMA-183-100
PICK UP-ASSY
FLAT WIRE
816-2624-50
CD PWB(B5)
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
COMPONENT SIDE
SOLDER SIDE
SOLDER SIDE
TO J900 OF Main PWB(B1) PAGE 19
GRN
ORG
BLK
RED
BLU
PUR
YEL
