Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
COMPONENT SIDE

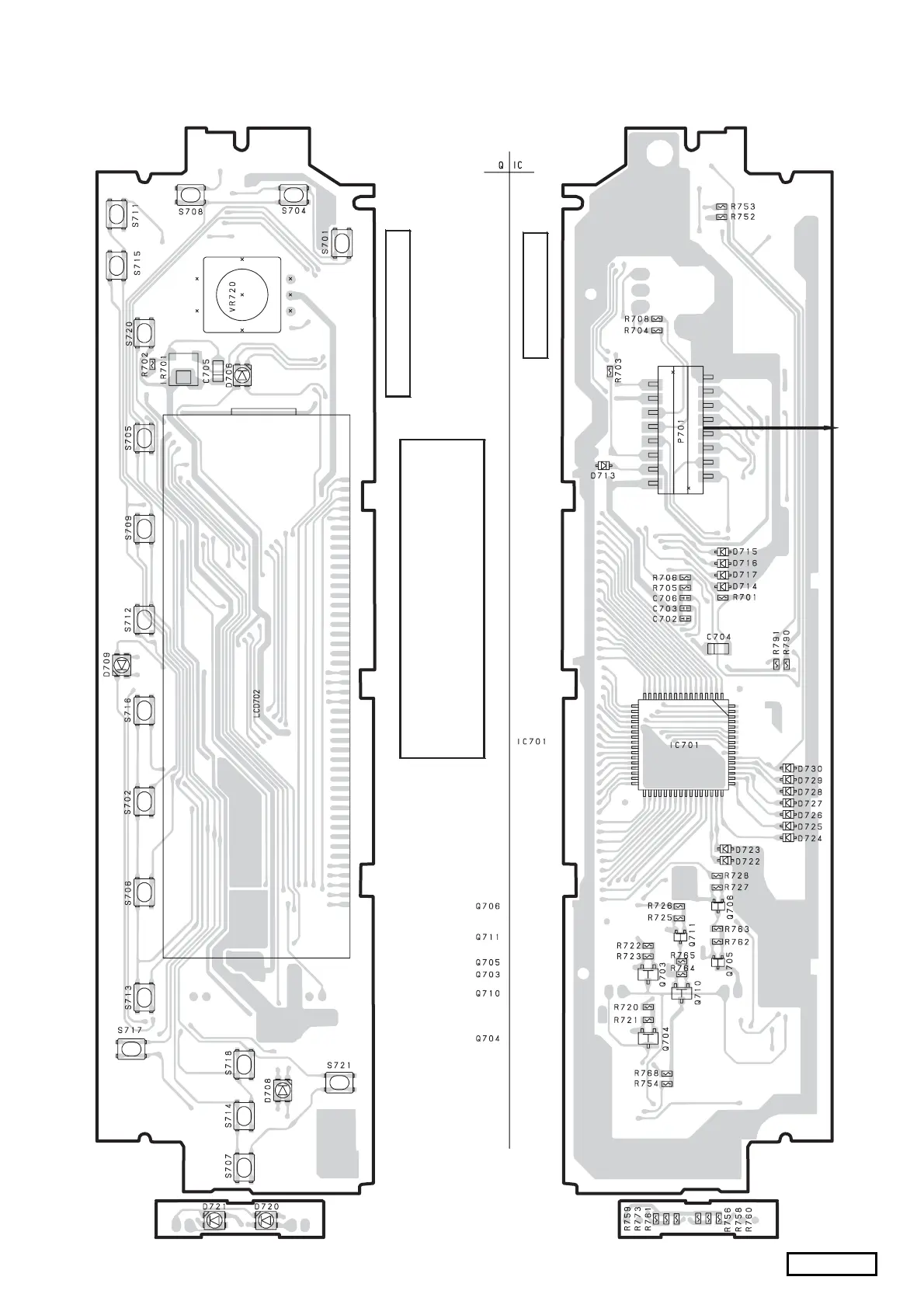

PRINTED WIRING BOARD 1/4
Switch PWB(B4) section
DXZ558RMP
-17-
SOLDER SIDE
TO J703 OF SUB PWB (B2)
PAGE 20
1
2
15
16
1
17
33
49
