Wire Connection
10
NP509
English

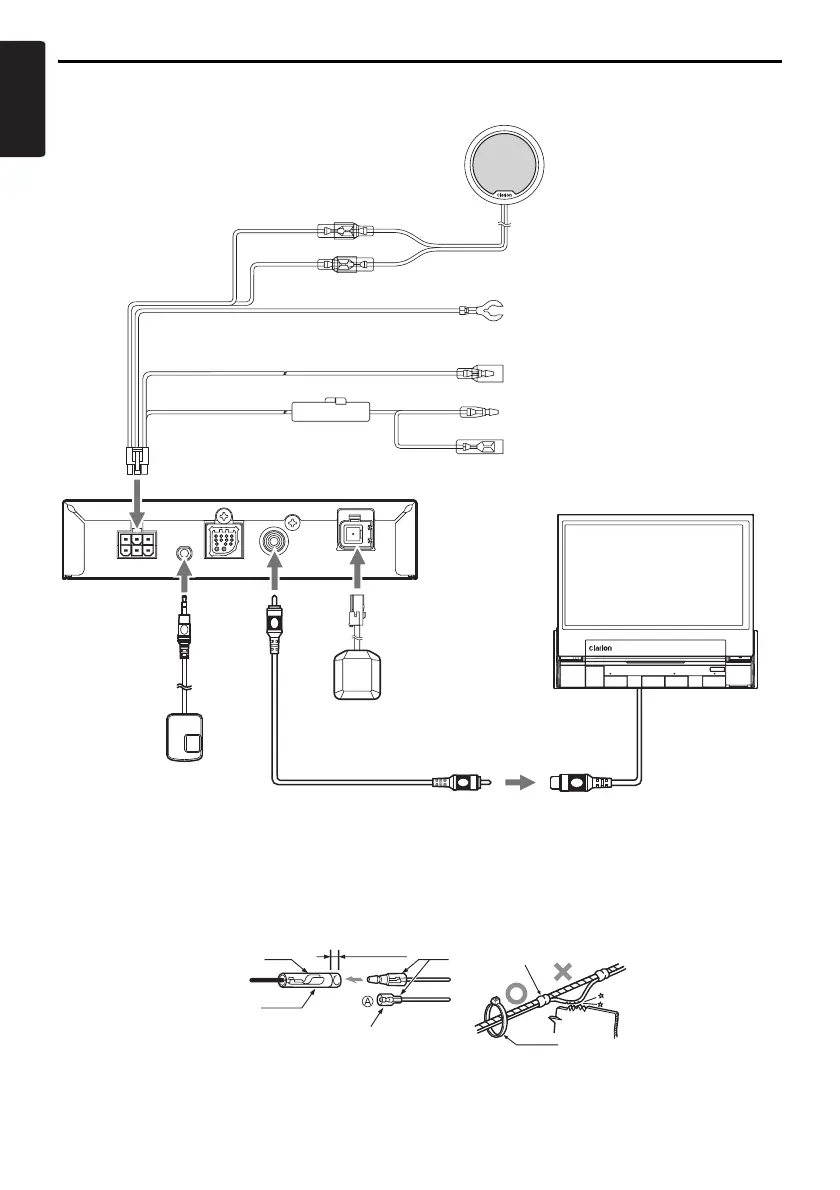

Example of connecting to the optional accessory kit
* Provided with the optional accessory kit.
Notes on wire connection
When connecting the plugs and sleeves, be sure to insert the plug until it locks securely. After completing
connections, fasten the cords using cord clamps and tapes.
3A
VOL
+
–
SOUND ADJ SOURCE OPEN
2-ZONE
POWER TILT
Fuse
Main power supply
Connect to the +12V power supply
where power source is always supplied.
RCA video cable*
To video input
+12V Accessory
NP509
Ground
Connect to a metal part of the vehicle to
connect ground.
3 GPS antenna
2 Power supply cord
Yellow
Remote control
sensor*
Monitor
White
Speaker*
White/black
Black
Red
Female
Sleeve
If the male knob is in the shape shown at A,
cut the female sleeve about 5 mm.
Male
Cut 5 mm.
Clamp
tape
To Next Page
