17
English
NX302E
Note:
*1ConnecttotheAUXaudioinputterminalandtheiPodvideoinputterminal.(Audioconnection
isrequiredonlywhen[Analog]isselectedfortheiPodoutputsignal.SeeOwner’sManual.)
*2Incertainvehicles-Volkswagen/Opel/Vauxhall-itisnecessarytoexchangetheaccessory
<<Red>>andthemainpower<<Yellow>>connection,toavoidoverloadandlossofmemory.
*3Whentheunitisinstalledina1998orlaterVolkswagenmodel,makesuretointerruptthe
<<Remote>>output.
Disconnectthe<<blue/white>>wireandinsulatethefrontendsofthiscord.Abreakdownmay
occurifthecordisnotdisconnected,orfrontendsarenotinsulated.
Installation Guide
Connecting the parking brake cord
Connect the cord to parking brake lamp ground in the meter panel.
Note:
• Connectingtheparkingbrakecordtolampgroundallowsyoutowatchvideoimageswhen
theparkingbrakeisengaged.
• Whentheparkingbrakecordisnotconnected,themonitorwillnotdisplayvideoimages.

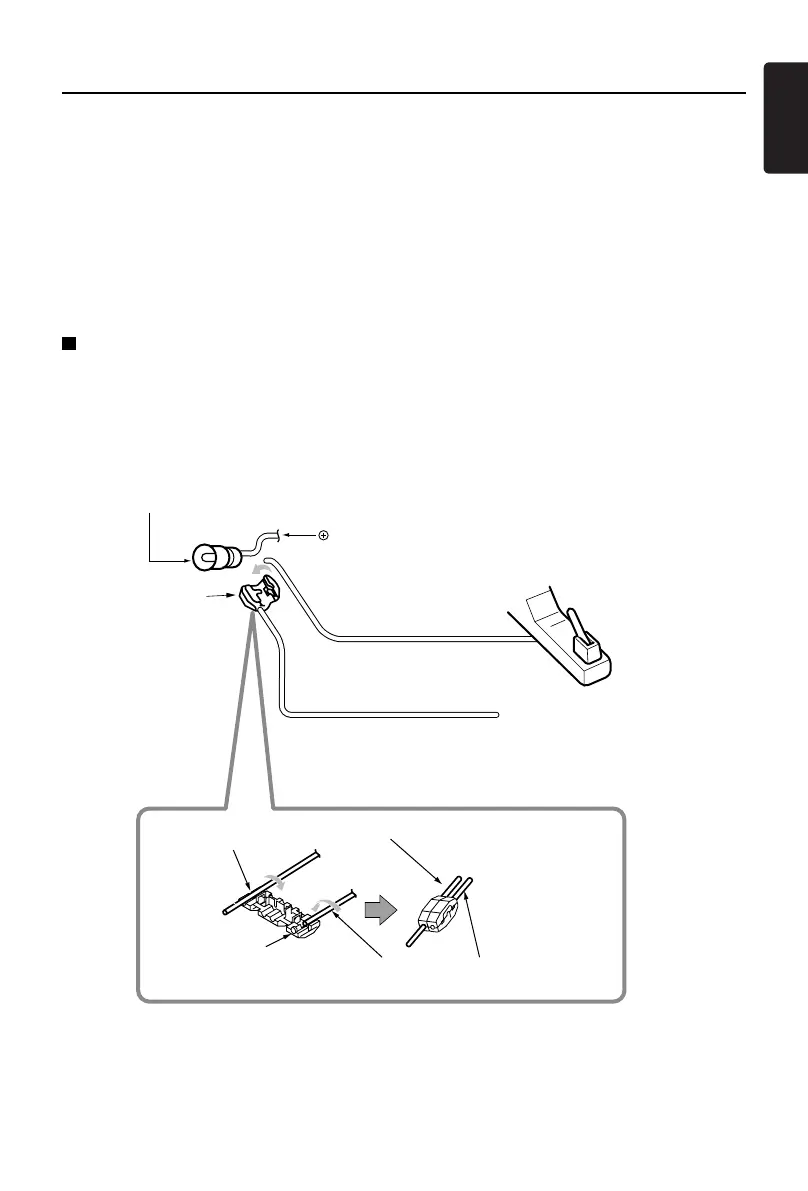

Parking brake lamp
cord to battery
Parking brake
Electro-tap
Parking brake signal cord
Parking brake cord (Grass-green)
Parking brake signal cord
Stopper
Parking brake cord (Grass-green)
