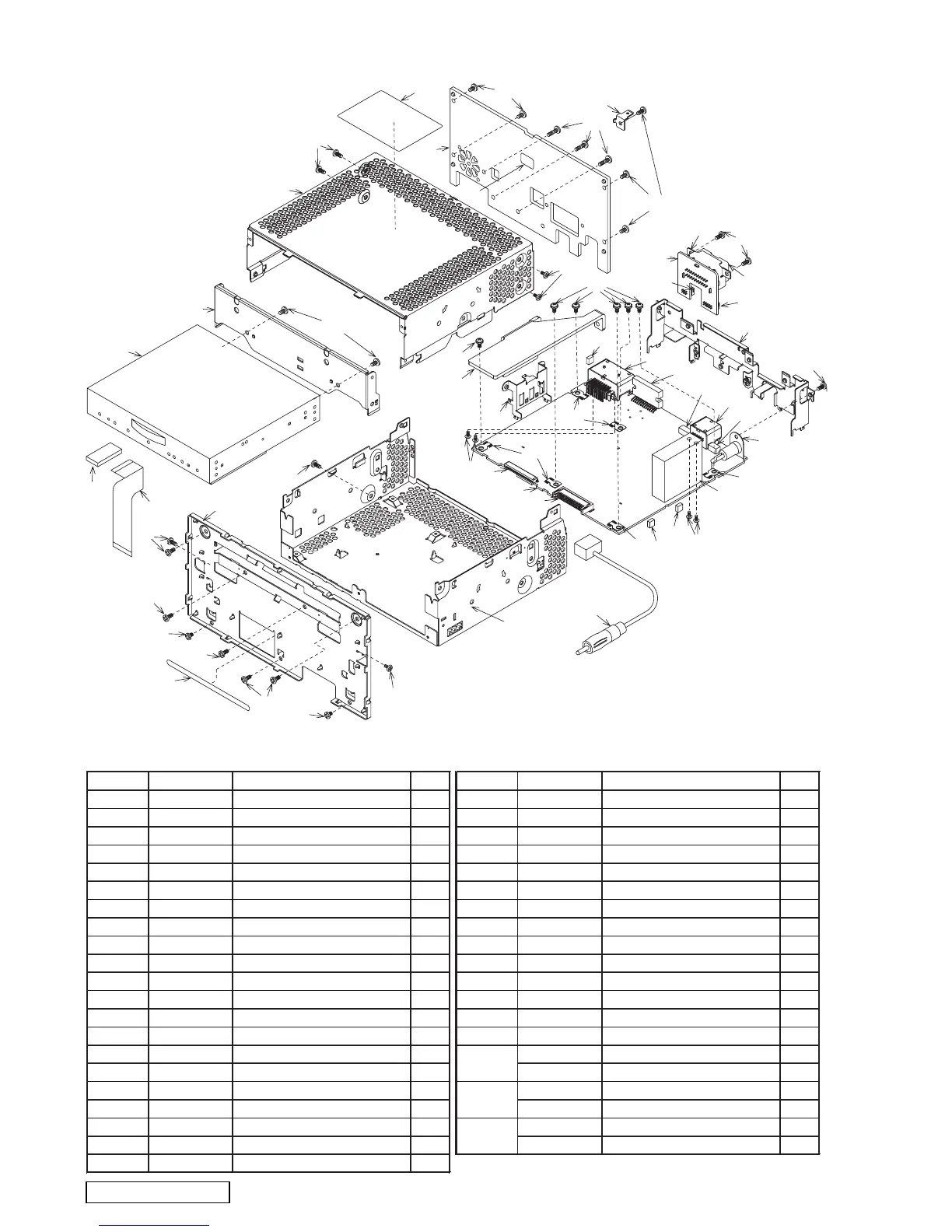

Clarion PF-2982B-A - Parts List: Main Unit Assembly; Main Unit Component Breakdown

37
21
34
21
31
36
32
21
21
13
35
22
9
2
4
1
3
10
13
21
21
21
21
33
21
21
27
24
28
25
26
27
30
21
29
27
12
14
15
8
5
6
7
2
19
18
17
16
23
23
21
20
2
2
Main section
M
5
X
8
m
m
M
A
X
M
5
X
8
m
m
M
A
X
-
11
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 ------------- Main PWB 1 22 311-1944-00 LOWER CASE 1
2 073-0762-90 TERMINAL 6 23 716-0878-50 SCREW(M2.6x5) 6
3 074-1237-79 OUTLET SOCKET(29P) 1 24 309-0845-01 ES PLATE(1CD) 1
4 076-3011-78 PLUG(8P) 1 25 929-5000-80 DIGITAL-MECH 1
5 074-4009-20 OUTLET SOCKET(20P) 1 26 331-4123-00 CD BRKT 1
6 074-1302-08 OUTLET SOCKET(8P) 1 27 714-2603-89 MACHINE SCREW(M2.6x3) 4
7 092-0702-00 ANT-RECEPT 1 28 345-5895-00 CUSHION RUBBER 1
8 051-2040-00 IC(TA8276H) 1 29 816-4025-50 FLAT WIRE 1
9 880-2091E TUNER 1 30 310-1826-50 UPPER CASE 1
10 331-4414-00 TR HOLDER 1 31 313-2018-00 HEAT SINK 1
11 313-2019-00 SUB HEAT SINK 1 32 331-3579-00 EARTH PLATE 1
12
307-0727-00 REAR PLATE 1
33 347-8295-01 PROTECTOR 1
13 778-3006-00 TAP-SCREW(M3x6) 4 34 714-2610-89 MACHINE SCREW(M2.6x10) 3
14 076-0368-10 PLUG(10P) 1 35 093-2137-01 ANT-JUMPER 1
15 076-0368-06 PLUG(6P) 1 36 290-8338-11 LABEL(PF-2945A-A) 1
16 ------------- Sub PWB 1 290-8338-21 LABEL(PF-2982B-A) 1
17 074-0898-06 OUTLET SOCKET(6P) 1 37 276-0217-01 SETPLATE(PF-2945A-A) 1
18 074-0898-10 OUTLET SOCKET(10P) 1 276-0217-11 SETPLATE(PF-2982B-A) 1
19 074-4027-20 OUTLET SOCKET(20P) 1 38 345-5805-24 GASKET 3
20 331-4413-00 PWB HOLDER 1 345-5805-04 GASKET 3
21 714-2606-8B MACHINE SCREW(M2.6x6) 20
Note)Several different parts of the same reference number are alternative parts.
One of those parts is used in the set.
Some parts depend on each model. The model name is specified in the description.
38
38
38
-8-
PF-2945A-A/PF-2982B-A
