PP-2515L

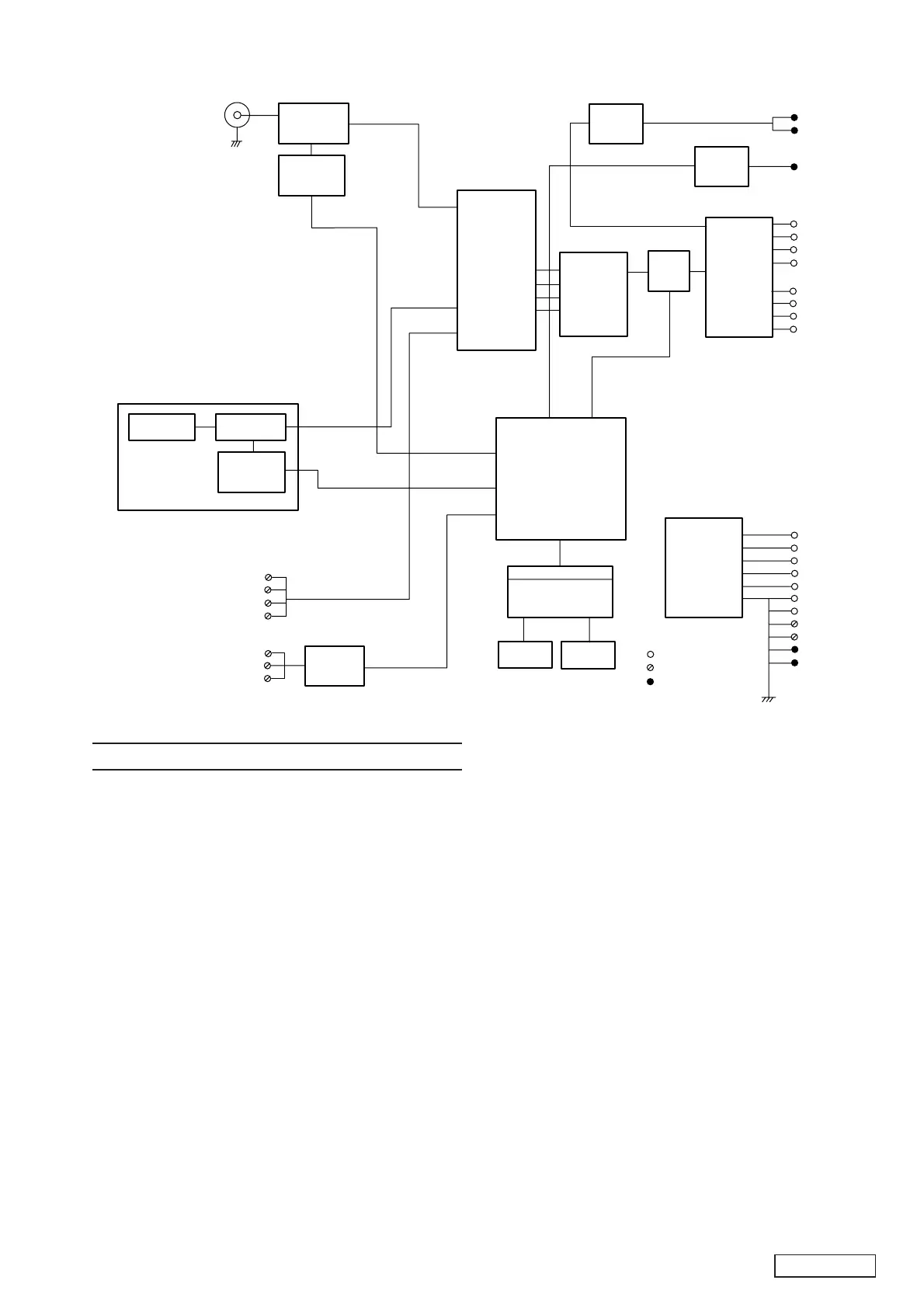

BLOCK DIAGRAM
EXPLANATION OF IC
052-1173-20 uPD178076GF-568-3BA System Controller
1.Terminal Description
pin 1: EJECT SW :IN: Eject switch signal input.
pin 2: NAVI ON :IN: NAVI ON signal input.
pin 3: NU : - : Not in use.
pin 4: VOL DATA : O : The serial data output to the volume IC.
pin 5: VOL CLK : O : The clock pulse output to the volume IC.
pin 6: VOL CE : O : The chip enable signal output to the vol-
ume IC.
pin 7: NU : - : Not in use.
pin 8: LCD DI :IN: The srial data input from the LCD driver.
pin 9: LCD DO : O : The srial data output to the LCD driver.
pin 10: LCD CLK : O : The clock pulse output to the LCD driv-
er.
pin 11: LCD CE : O : The chip enable signal output to the LCD
driver.
pin 12: LCD RST : O : Reset pulse output to LCD driver.
pin 13: POWER SW :IN: Power switch ON signal input.
pin 14: VOL 1 :IN: Volume control pulse input from the rota-
ry encoder.
pin 15: VOL 2 :IN: Volume control pulse input from the rota-
ry encoder.
pin 16: NU : - : Not in use.
pin 17: ILL :IN: Illumination ON signal input.
pin 18: NU : - : Not in use.
pin 19: NU : - : Not in use.
pin 20: NU : - : Not in use.
pin 21: NU : - : Not in use.
pin 22: NU : - : Not in use.
pin 23: REM A :IN: Remote control signal input.
pin 24: REM B :IN: Remote control signal input.
pin 25: ILL AD :IN: The analog voltage input for illumination
signal.
pin 26: NU : - : Not in use.
pin 27: A VDD : - : Positive supply voltage for the Analog
section.
pin 28: NU : - : Not in use.
pin 29: NU : - : Not in use.
pin 30: NU : - : Not in use.
pin 31: NU : - : Not in use.
pin 32: A VSS : - : Analog ground.
pin 33: REG CPU :IN: The capacitor connection terminal to sup-
press the ripple.
pin 34: VDD : - : Positive supply voltage.
pin 35: REG OSC :IN: The capacitor connection terminal to sup-
press the ripple.
pin 36: X 2 : - : Crystal connection.
pin 37: X 1 : - : Crystal connection.
pin 38: GND : - : Ground.
pin 39: NU : - : Not in use.
pin 40: GND : - : Ground.
pin 41: AM IF IN :IN: The input terminal of the internal counter
for AM IF.
pin 42: FM IF IN :IN: The input terminal of the internal counter
for FM IF.
pin 43: VDD PLL : - : Positive supply voltage for the PLL.
pin 44: FM OSC IN :IN: The input terminal of the internal counter
for FM OSC ( Local Oscillation ).
pin 45: AM OSC IN :IN: The input terminal of the internal counter
for AM OSC ( Local Oscillation ).
pin 46: GND PLL : - : Ground for the PLL.
pin 47: VT : O : PLL error signal output.
pin 48: NU : - : Not in use.
pin 49: IC :IN: Connect to the ground.
IC503 -505
NJM2060
EQ.
BL101
880-1917E
AM/FM TUNER
LPF
CD(GS-1) MECHANISM
RF AMP
DSP/SSP/DAC
DRIVER
IC301
NJM4558
NAVI AMP
Q301
NAVI ON
IC302
LC75412WH
ELECTRONIC
VOLUME
MUTE
IC201
uPD178076
SYSTEM CONTROL
POWER
SUPPLY
LCD DRIVER
IC1101
LC75883
LCD
A/C
INTERFACE
J701
J1002
J1001
CONNECTOR
NAVI(+)
NAVI(-)
NAVI ON
SIGNAL
FL SP(+)
FL SP(-)
FR SP(+)
FR SP(-)
RL SP(+)
RL SP(-)
RR SP(+)
RR SP(-)
ANT SIG
BACK UP
ILL. CONT
LIGHTING
ACC
GND
GND
GND
DATA GND
GND
NAVI GND
CD L-IN(+)
CD L-IN(-)
CD R-IN(+)
CD R-IN(-)
CD REQ
CD RX
CD TX
IC506
TA8275
POWER AMP
KEY
MATRIX
